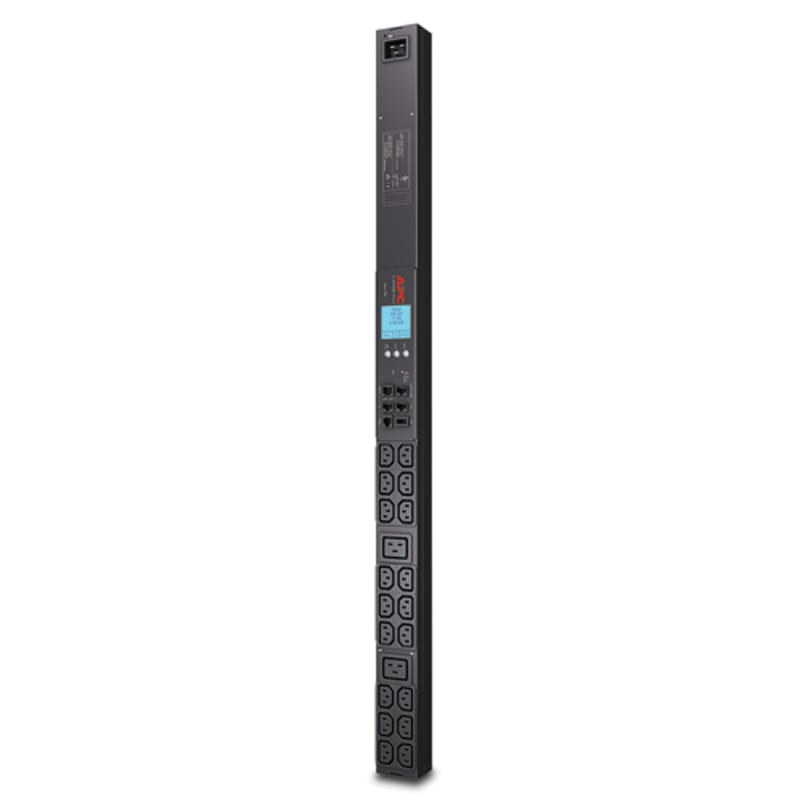

Schneider Electric APC NetShelter Metered Rack PDU, 2G, 0U, 20A, 208V, 18 C13 and 2 C19 outlets, L6-20 inlet AP8858NA3

Schneider Electric AP8858NA3 APC by Schneider Electric.

Manufacturer part number (MPN)

AP8858NA3

EAN / GTIN

0731304277040

Sales unit

pcs

Presentation

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Colour

Black

Product or component type

PDU

PDU type

Metered

Cord length

2.9 m

Number of cables

1

Provided equipment

Installation guide; Locking input power cord; Rack mounting brackets; Serial configuration cable; Safety guide

Input Voltage

200 V; 208 V; 230 V; 240 V

Height

902 mm

Width

56 mm

Output Voltage

208 V

Depth

44 mm

Product weight

2.93 kg

Mounting location

Side

Mounting preference

No preference

Input Plug Type

NEMA L6-20P

mounting mode

Rack-mounted

Rack units

0U

Mounting position

Vertical

[In] rated current

16 A

permissible voltage

100…240 V

Input current limits

20 A

Load capacity

3300 VA

Network frequency

50/60 Hz

Outlet type and quantity

18 IEC 60320 C13 ; 2 IEC 60320 C19

Product certifications

METI Denan; VDE

Standards

CSA C22.2 No 60950; IEC 60950; UL 60950-1

Ambient air temperature for operation

-5…60 °C

Relative humidity

5…95 %

Operating altitude

0...10000 ft

Ambient air temperature for storage

-25…65 °C

Storage Relative Humidity

5…95 %

Storage altitude

0…15240 m

Number of Units in Package 1

1

Warranty (in months)

24

Nominal current

20 A

Mounting direction

Vertical

Electrical connection

Connection cable with plug

Cable length

3 m

Number of C13 socket outlets

18

Number of C19 socket outlets

2

Length

44 mm

Supply voltage

230 V

Overvoltage category

1

Interface ethernet

Yes

Country of origin

Ireland

HS Code

8537.10

• EAN 0731304277040
• SAP 1200723109
• Code 83853223
