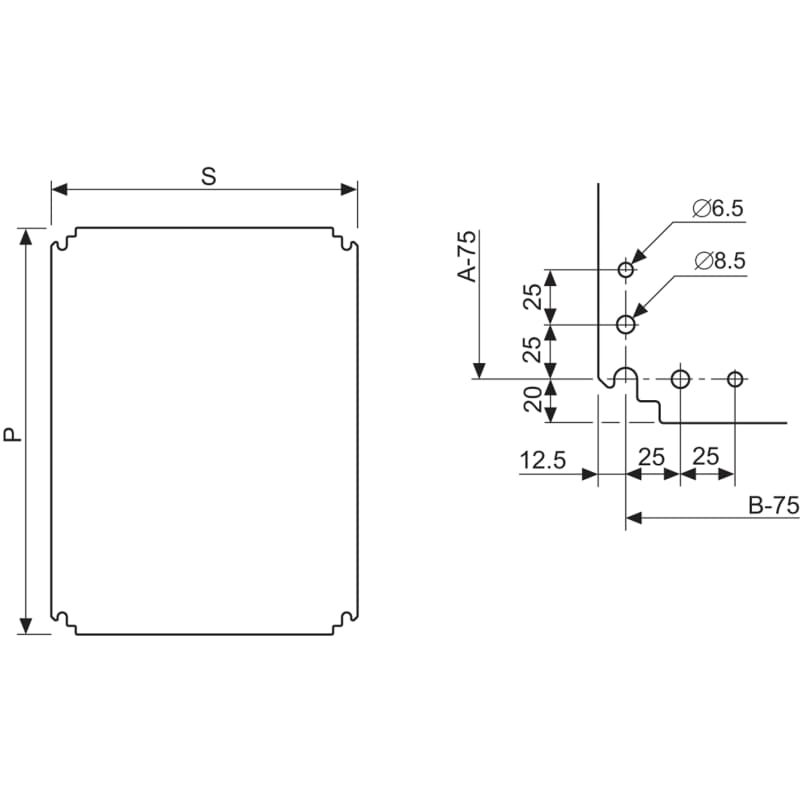

Polyester mounting plate 300X200
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYMPP32 polyester mounting plate 300x200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYMPP32
- EAN / GTIN
- 3606480183478
- Sales unit
- pcs
- Dimensions
- 300×200 mm
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Mounting plate
- Device application
- Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- Step slide; Direct fixing on backstuds
- Mounting plate description
- Plain
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM PLM
- Quantity per set
- Set of 1
- Material
- Fibreglass reinforced polyester
- Colour
- Grey (RAL 7035)
- Fixing mode
- Screwed on backstuds - screw type M8; By fixing element
- Permanent permissible load
- 15 kg
- Height
- Nominal: 265 mm; Enclosure nominal dimension: 300 mm
- Width
- Nominal: 150 mm; Enclosure nominal dimension: 200 mm
- thickness
- 4 mm
- Product weight
- 3 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 400
- Country of origin
- ES
- Warranty (in months)
- 18
- Perforated
- No
- Surface protection
- Untreated
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480183478
- SAP 1200309237
- Code 82302220
Product Documentation
More from Schneider Electric
Schneider Electric
RAIL 40A 3M 6 Outlet + BUS
KNT40ED4306
Schneider Electric
Schneider Electric reversing Contactor, TeSys K, 3P, AC-3/AC-3E,440V 9A, 1NC, 48V AC coil LC2K0901E7
Schneider Electric
RAIL 800A 3L 5M 10 Outlet
KSA800ED35010
Schneider Electric
Selector switch flush for LED 3 pos yellow (ZB5FK1783)
Schneider Electric
Tesys T Canop 0,4-8A 24VDC
LTMR08CBD
Schneider Electric

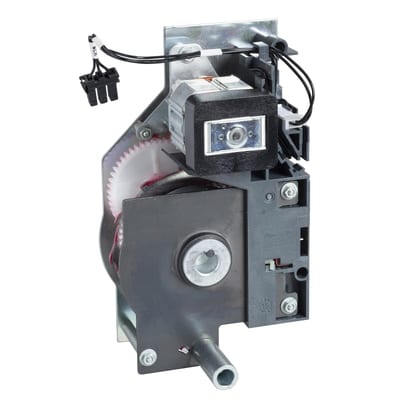

Schneider Electric electric motor MCH, MasterPact MTZ2/MTZ3, spare part, 100/130 V AC 50/60 Hz LV847893SP
Schneider Electric
Interpact INS40, 3P (28916)
Schneider Electric

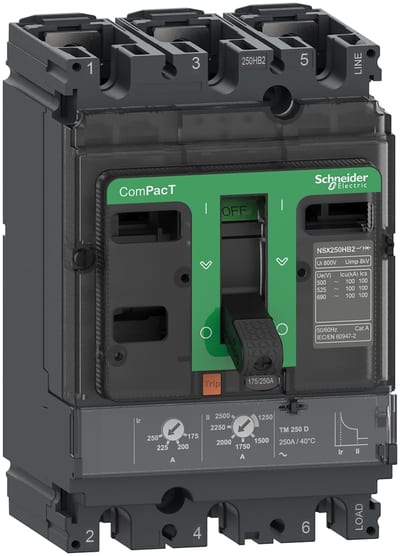

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 3 poles, TMD trip unit 250A C25W3TM250
