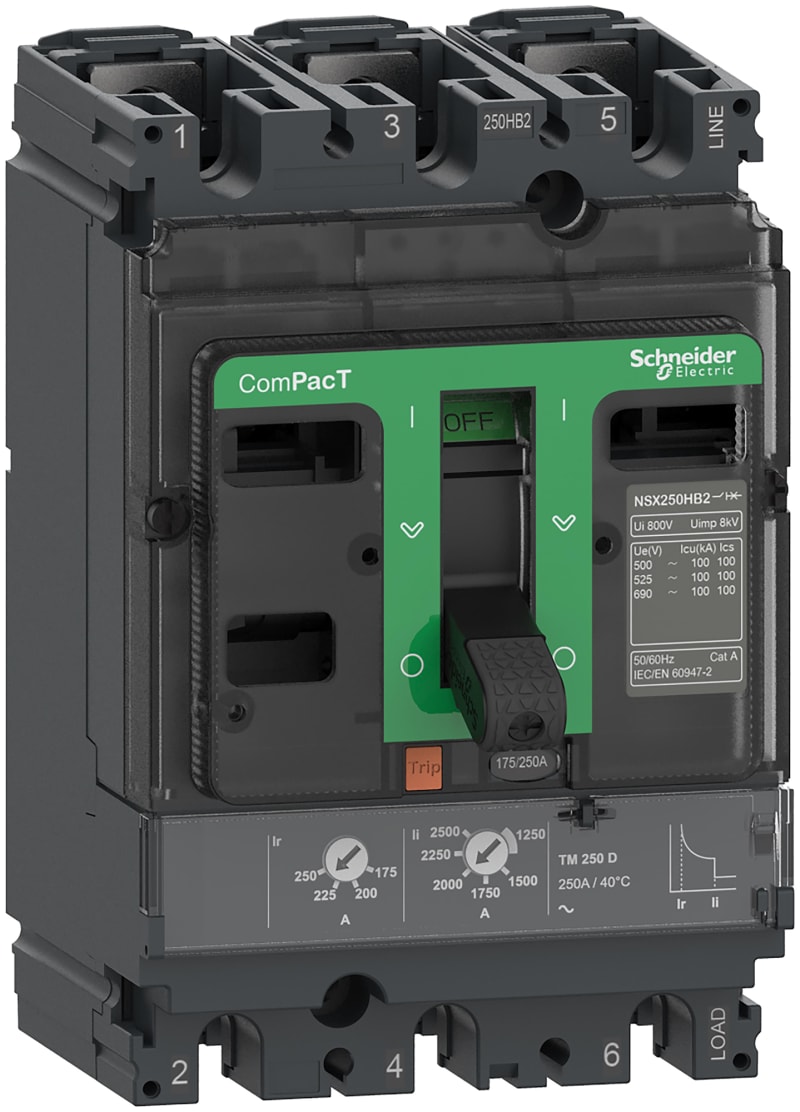

Schneider Electric Circuit breaker, ComPacT NSX250HB2, 100KA/690VAC, 3 poles, TMD trip unit 250A C25W3TM250
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric C25W3TM250 Circuit breaker ComPacT NSX with thermomagnetic protection NSX250HB2-TM250D 3P3T 250A 100kA/690VAC.
Technical Specifications
- Manufacturer part number (MPN)
- C25W3TM250
- EAN / GTIN
- 3606482002180
- HS code
- 8536.90
- Sales unit
- pcs
- Trip unit
- TM250D
- Range
- ComPacT
- Product name
- ComPacT NSX
- Device short name
- NSX250HB2
- Product or component type
- Circuit breaker
- Device application
- Distribution
- Poles description
- 3P
- Protected poles description
- 3D
- [In] rated current
- 250 A at 40 °C
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- Network type
- AC
- Network frequency
- 50/60 Hz
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Utilisation category
- Category A
- Breaking capacity
- 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- Breaking capacity code
- HB2 100 kA 690 V AC
- Trip unit name
- TM-D
- Trip unit technology
- Thermal-magnetic
- Trip unit protection functions
- LI
- Control type
- Toggle
- Circuit breaker mounting mode
- Fixed
- [Ui] rated insulation voltage
- 800 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ics] rated service breaking capacity
- 100 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2; 100 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles at 440 V In/2; 10000 cycles at 440 V In; 10000 cycles at 690 V In/2; 5000 cycles at 690 V In
- Power dissipation per pole
- 18.75 W
- Mounting support
- Backplate
- Mounting position
- Horizontal and vertical; Flat on the back
- Upside connection
- Front
- Downside connection
- Front
- Connection pitch
- 35 mm
- Protection type
- L : for overload protection (thermal); I : for short-circuit protection (magnetic)
- Trip unit rating
- 250 A at 40 °C
- Long-time pick-up adjustment type Ir (thermal protection)
- Adjustable
- [Ir] long-time protection pick-up adjustment range
- 0.7...1 x In
- Long-time protection delay adjustment type tr
- Fixed
- [tr] long-time delay adjustment range
- 120…400 s at 1.5 x In; 15 s at 6 x Ir
- Instantaneous protection pick-up adjustment type Ii
- Adjustable
- [Ii] instantaneous protection pick-up adjustment range
- 5...10 x In
- Earth-leakage protection
- Without
- Number of slots
- 5 slot(s)
- Width (W)
- 105 mm
- Height (H)
- 161 mm
- Depth (D)
- 86 mm
- Product weight
- 2.4 kg
- Standards
- EN/IEC 60947-2
- Overvoltage category
- III
- Electrical shock protection class
- Class II on front face
- Pollution degree
- 3 conforming to IEC 60664-1
- IP degree of protection
- IP40 conforming to IEC 60529
- IK degree of protection
- IK07 conforming to IEC 62262
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -50…85 °C
- Relative humidity
- 0…95 %
- Operating altitude
- 0...2000 m without derating; 2000 m...5000 m with derating
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482002180
- SAP 1200534509
- Code 82688475
Product Documentation
