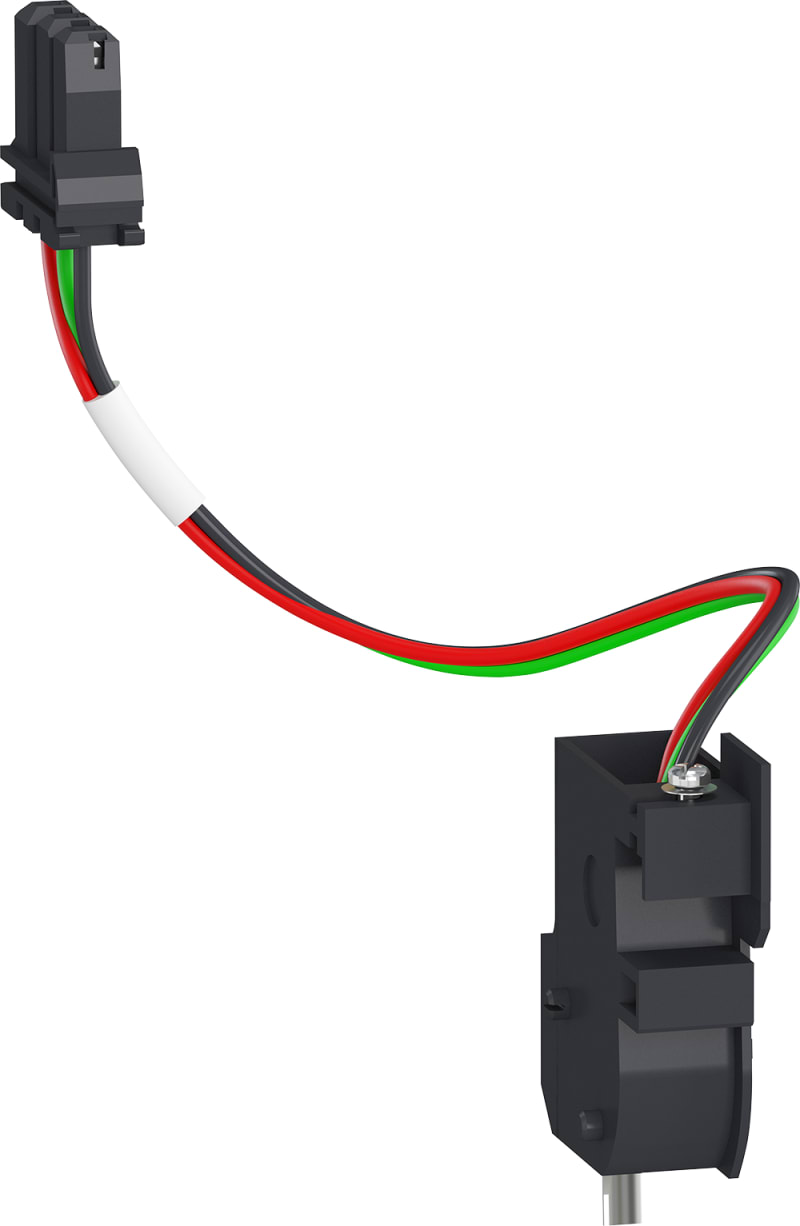

Schneider Electric MN undervoltage release, diagnostics, Masterpact MTZ1/2/3, 100/130 VAC 50/60 Hz, 100/130 VDC, spare part LV836670SP

Schneider Electric LV836670SP Undervoltage coil diagnose MN 100/130 VAC/DC for Masterpact MTZ, reserve.

Manufacturer part number (MPN)

LV836670SP

EAN / GTIN

3606481186744

Sales unit

pcs

Maximum response time

45 ms on opening for MasterPact MTZ1; 95 ms on opening for MasterPact MTZ2; 95 ms on opening for MasterPact MTZ3

Range

MasterPact

Device short name

MN diag

Product or component type

Undervoltage release

Device application

Safety

Range compatibility

Masterpact MasterPact MTZ1 circuit breaker; Masterpact MasterPact MTZ2 circuit breaker; Masterpact MasterPact MTZ3 circuit breaker

Voltage release type

Instantaneous

Control type

Communicating

Signalling function

Error; Coil powered; MN open

[Un] voltage power supply

100...130 V AC 50/60 Hz; 100...130 V DC

Threshold tripping voltage

0.35...0.7 Un opening; 0.85 Un closing

Holding power consumption

4.5 W

Circuit breaker mounting mode

Fixed/drawout

Provided equipment

1 instruction sheet

Offer type

Spare part

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.200 cm

Package 1 Width

6.000 cm

Package 1 Length

8.200 cm

Package 1 Weight

225.000 g

Country of origin

FR

Warranty (in months)

18

Delayed

No

Suitable for off-load switch

Yes

Suitable for overload relay

No

Type of electric connection

Flat plug-in connection

Rated control supply voltage AC 50 Hz

100–130 V

Rated control supply voltage AC 60 Hz

100–130 V

Rated control supply voltage DC

100–130 V

Suitable for motor safety switch

Yes

Suitable for power circuit breaker

Yes

Voltage type for actuating

AC/DC

HS Code

8538.90

• EAN 3606481186744
• SAP 1200050451
• Code 81878221
