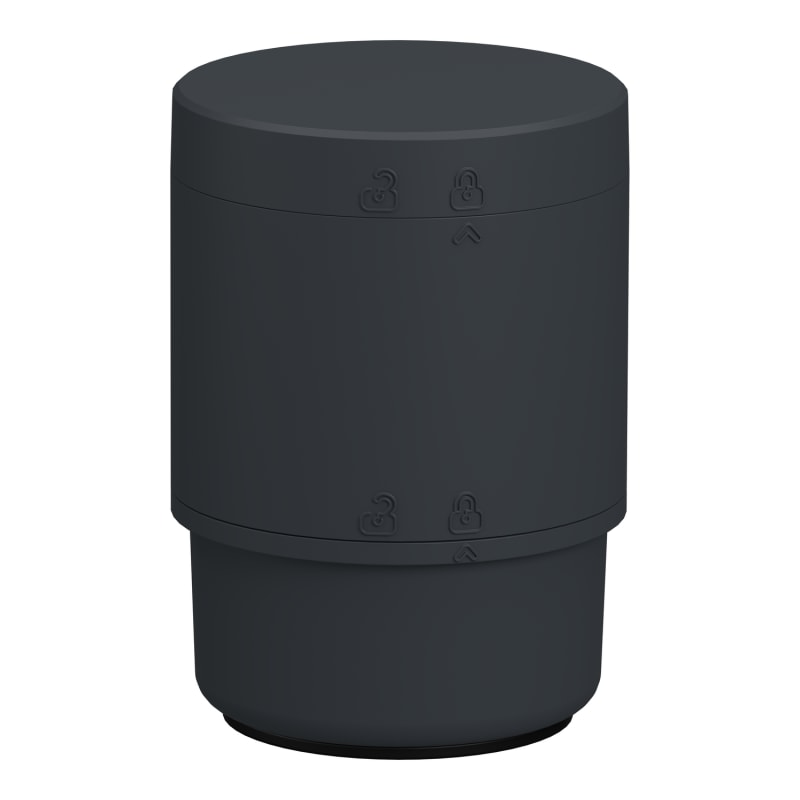

Bunndel with cover in grey for USB

Bunndel for XVB7 lyskolonne in Ø70 mm with adapter and cover in dark grey, USB for connection for HMI.

Manufacturer part number (MPN)

XVB7C51

EAN / GTIN

3606487129264

Sales unit

pcs

Package quantity

30 pcs

Range of product

Harmony XVB7

Product or component type

Base module

Device composition

Base direct/tube & cover

Device short name

XVB7

Mounting diameter

70 mm

Electrical connection

USB

Communication port protocol

Modbus serial

Product compatibility

HMI/PC

fixing mode

Direct or tube fixing

Mounting position

Upright/inverted

Assembly style

Up to 5 Modules (4 lens + 1 sound or 5 lens)

Material

Polycarbonate

Housing colour

Dark grey

Product weight

0.180 kg

[Ue] rated operational voltage

5 V DC

Electrical shock protection class

Class II

Current consumption

31 mA

Output current

90 mA max

Connections - terminals

USB2.0 Type C

Type of cable

USB 2m max

cable entry

Bottom

[Ui] rated insulation voltage

50 V

[Uimp] rated impulse withstand voltage

0.5 kV

Pollution degree

2

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

IP degree of protection

IP66

Environmental Type ratings

UL type 4X/13

Vibration resistance

6 gn, amplitude = +/- 0.5 mm (f = 10…500 Hz)in operation

Shock resistance

30 gn (duration = 6 ms) for in operation

Standards

UL 60947-5-1; IEC 60947-5-1; CSA C22.2 No 60947-5-1

Product certifications

cULus; CCC; RCM; UKCA; CE

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.000 cm

Package 1 Width

7.500 cm

Package 1 Length

13.000 cm

Package 1 Weight

160.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

30

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.290 kg

Warranty (in months)

18

Suitable for tube mounting

Yes

Suitable for angle mounting

No

Suitable for AS interface

No

Suitable for M12 connector

No

Suitable for IO link

No

Suitable for floor mounting

Yes

Country of origin

Germany

HS Code

8531.90
