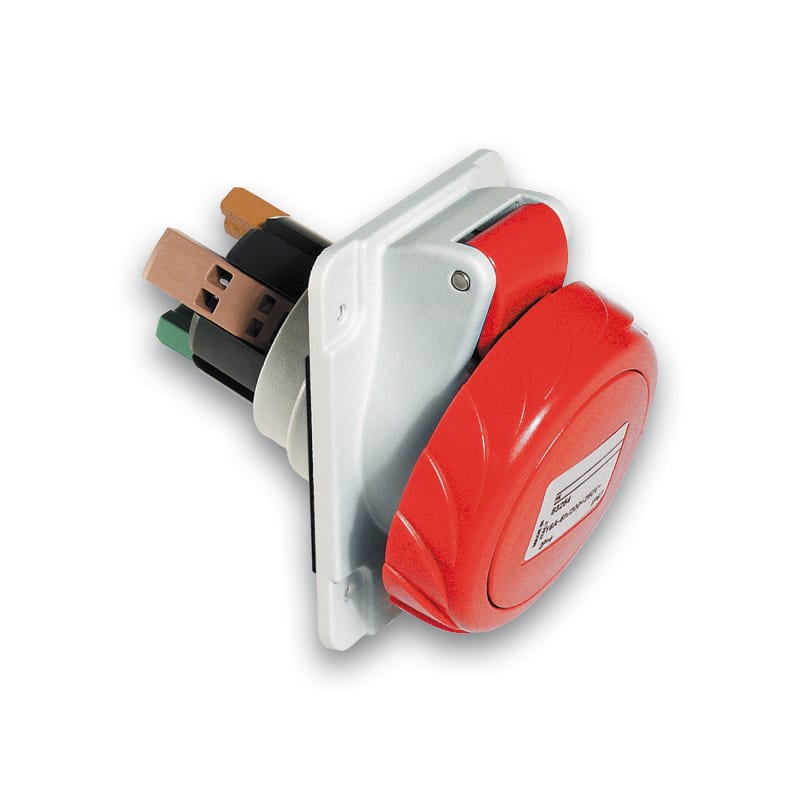

Schneider Electric PratiKa socket - fast - angled - 16A - 2P + E - 380...415 V AC - panel PKY16F733
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY16F733 PratiKa Infelt socket outlet angled - 16 A - 2P + E - 380.415 V AC IP 67.
Technical Specifications
- Manufacturer part number (MPN)
- PKY16F733
- EAN / GTIN
- 3303432011314
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 400 V
- Rated current
- 16 A
- Range
- PratiKa
- Product or component type
- Socket
- Device short name
- PratiKa socket
- Plug, socket category
- Low voltage
- Poles description
- 2P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 9 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 1…4 mm²
- Product weight
- 0.147 kg
- Base dimension
- 65 x 85 mm
- Height
- 85 mm
- Width
- 73 mm
- Depth
- 103 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432011314
- SAP 1200199252
- Code 82174288
Product Documentation
More from Schneider Electric
Schneider Electric
NG125L/C 50-1 Modular Circuit breaker
18783
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 11kW, 200 to 240V, with braking unit, IP21 ATV930D11M3
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB5, plastic, blue flush, 22mm, universal LED, plain lens, 1NO+1NC, 24V AC DC, push in XB5AW36B55
Schneider Electric
MN 220/240VAC 0SP.UTL.F/NG125
19067
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 4P, 100A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18480
Schneider Electric
Sign in plastic with text (ZBYP2104)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MA trip unit 50A C10W3MA050
Schneider Electric

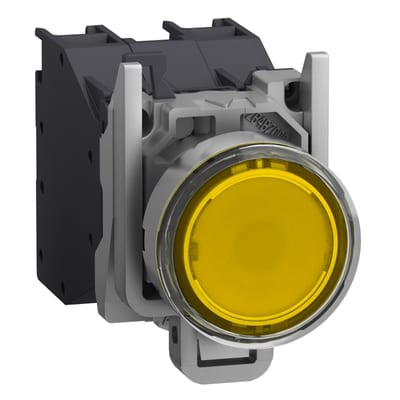

Schneider Electric Complete illuminated push button, Harmony XB4 - ATEX D, metal, yellow flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC XB4BP583BM5GEX
