NG125L/C 50-1 Modular Circuit breaker
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18783 NG125L/C 50-1 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18783
- EAN / GTIN
- 3303430187837
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 50 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 1.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303430187837
- SAP 1000061098
- Code 8873575
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric variable speed drive, Altivar Process ATV900, ATV930, 11kW, 200 to 240V, with braking unit, IP21 ATV930D11M3
Schneider Electric
Schneider Electric Illuminated push button, Harmony XB5, plastic, blue flush, 22mm, universal LED, plain lens, 1NO+1NC, 24V AC DC, push in XB5AW36B55
Schneider Electric
MN 220/240VAC 0SP.UTL.F/NG125
19067
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 4P, 100A, C curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18480
Schneider Electric
Sign in plastic with text (ZBYP2104)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MA trip unit 50A C10W3MA050
Schneider Electric
Schneider Electric Complete illuminated push button, Harmony XB4 - ATEX D, metal, yellow flush, 22mm, spring return, booted, 1NO, 24...254V AC/DC XB4BP583BM5GEX
Schneider Electric

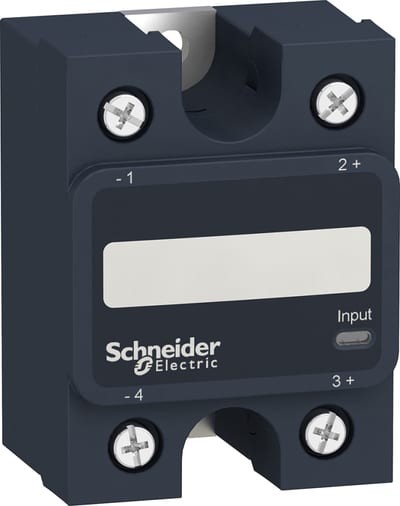

Schneider Electric Solid state panel mount relay, 25 A, zero voltage switching, thermal pad, input 3...32 V DC, output 24…300 V AC SSP1A125BDT
