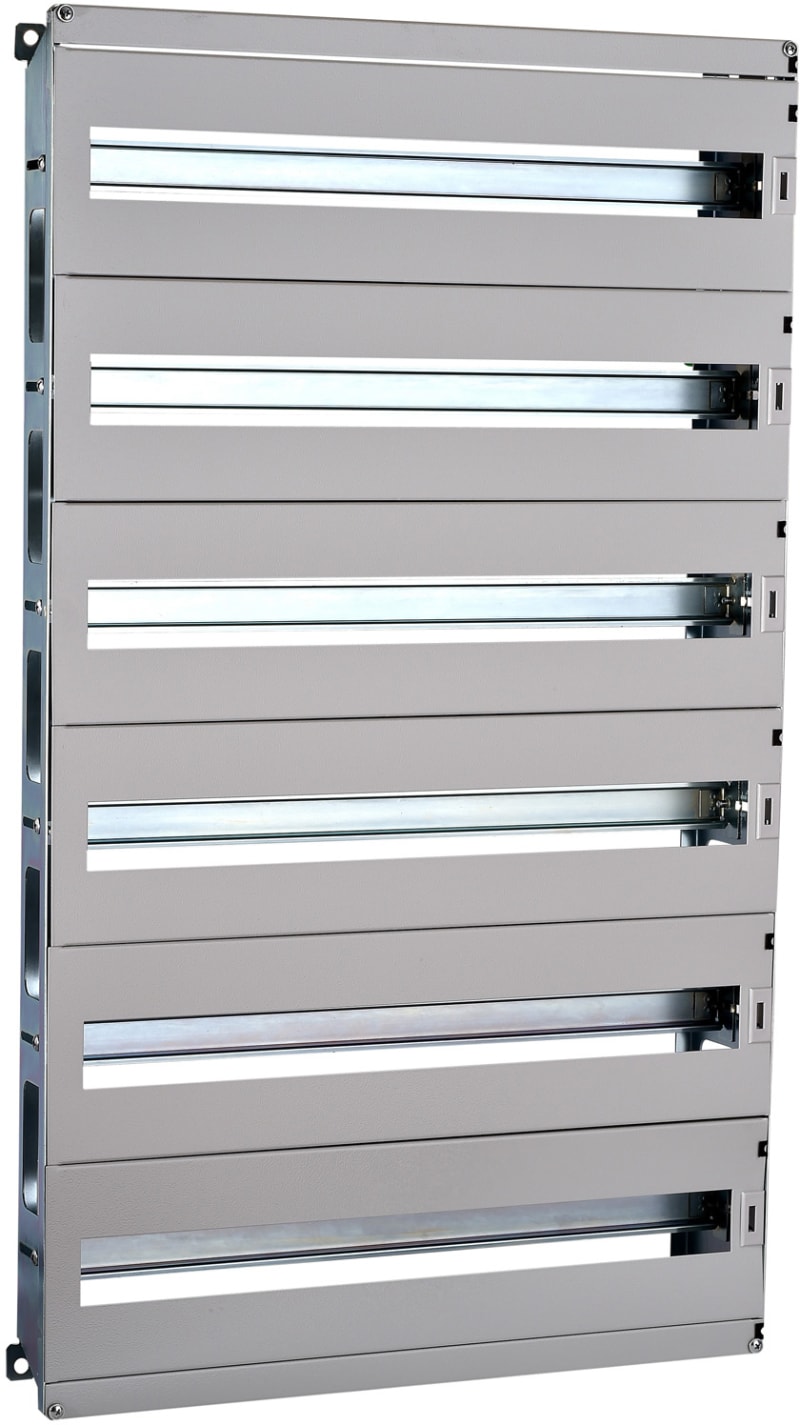

Modular frame 168M H1000XW600
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYDLM168 Modular frame - Wall-mounted steel enclosure - DLM type for SPACIAL - 168 modules, H1000xB600 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLM168
- EAN / GTIN
- 3606480162596
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Multi-purpose; Modular distribution application
- Product or component type
- Chassis
- Device short name
- DLM
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure; Step slide
- Range compatibility
- PanelSeT S3D; PanelSeT CRN
- Device composition
- 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 6 front panels with 35 mm DIN rail
- Quantity per set
- Set of 1
- Material
- Steel
- Colour
- Front panel: grey (RAL 7035)
- Surface finish
- Polyester powder
- Fixing mode
- By fixing element - on front and back with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 6
- Total number of 18 mm modules
- 168
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 6 cut-outs
- Height
- 953 mm
- Width
- 555 mm
- Depth
- 101.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 12.000 cm
- Package 1 Width
- 57.000 cm
- Package 1 Length
- 96.500 cm
- Package 1 Weight
- 10.004 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 110.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 135.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Type of covering
- With notch
- Number of DIN-rails
- 6
- Number of modular spacings per DIN-rail
- 28
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480162596
- SAP 1000470571
- Code 8114152
