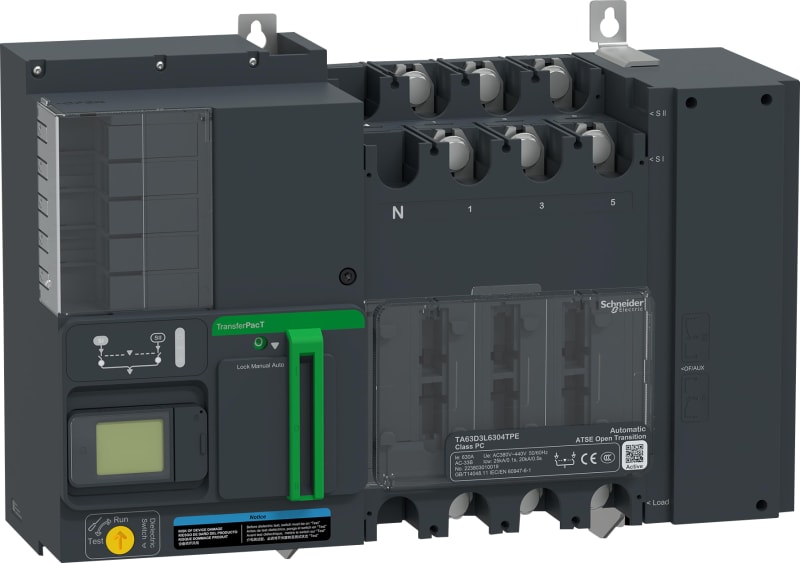

Schneider Electric TransferPacT Active Automatic, 500A, 400V, 3P, LCD, frame 630A TA63D3L5004TPE

Schneider Electric TA63D3L5004TPE TransferPacT Active Automatic ATS-TA63-In500A-400V-3P-with LCD controller and Modbus communication.

Manufacturer part number (MPN)

TA63D3L5004TPE

EAN / GTIN

3606485953045

Sales unit

pcs

Range of product

TransferPacT

Product or component type

Automatic transfer switch

Device application

Change source of supply

Poles description

3P

Network type

AC

Network frequency

50/60 Hz

Downside connection

Screwed

mounting mode

Fixed

Upside connection

Screwed

Contact position indicator

Yes

[Icm] rated short-circuit making capacity

40 kA switch-disconnector alone 400 V AC at 50 Hz; 330 kA with upstream protection circuit breaker 400 V AC at 50 Hz

Suitability for isolation

Yes

Transfer switch class

PC

Number of contact position

3

Signal contacts composition

1 NO + 2 NC; 1 NC + 2 NO; 2 NO

Utilization category

AC-33B; AC-33A

[Ue] rated operational voltage

400 V AC 50/60 Hz

Control type

4 push-buttons

Operating mode

Manual; Automatic

Display type

LCD screen

Mounting support

Plate

Locking options description

Padlock in OFF position; Padlock in SI / SII position

Rated duty

Uninterrupted

[Ui] rated insulation voltage

Switch: 800 V; Controller: 500 V

[Uimp] rated impulse withstand voltage

Switch: 12 kV; Controller: 6 kV

[Ie] rated operational current

500 A

Mechanical interlocking

With mechanical interlocking

Mechanical durability

10000 cycles

Connection pitch

45 mm

Local signalling

LED indicator (green) for power ON; LED indicator (red) for alarm

[Icw] rated short-time withstand current

20 kA during 0.5 s; 25 kA during 0.1 s

Height

341 mm

Width

467 mm

Depth

185.8 mm

Product weight

20.8 kg

[Ith] conventional free air thermal current

500 A at 60 °C

Standards

IEC 60947-6-1

Product certifications

CE; CB; CCC

IP degree of protection

Front face: IP40 auto mode; Inside the enclosure: IP20 manual mode

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…85 °C

Pollution degree

3

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

73.000 cm

Package 1 Width

60.000 cm

Package 1 Length

80.000 cm

Package 1 Weight

35.499 kg

Warranty (in months)

18

Rated permanent current Iu

500 A

Number of poles

3

Housing material

Plastic

Degree of protection (IP), front side

IP20

Number of auxiliary contacts as change-over contact

3

Type of electrical connection of main circuit

Screw connection

Suitable for floor mounting

No

Suitable for front mounting

No

Country of origin

China

HS Code

8536.50
