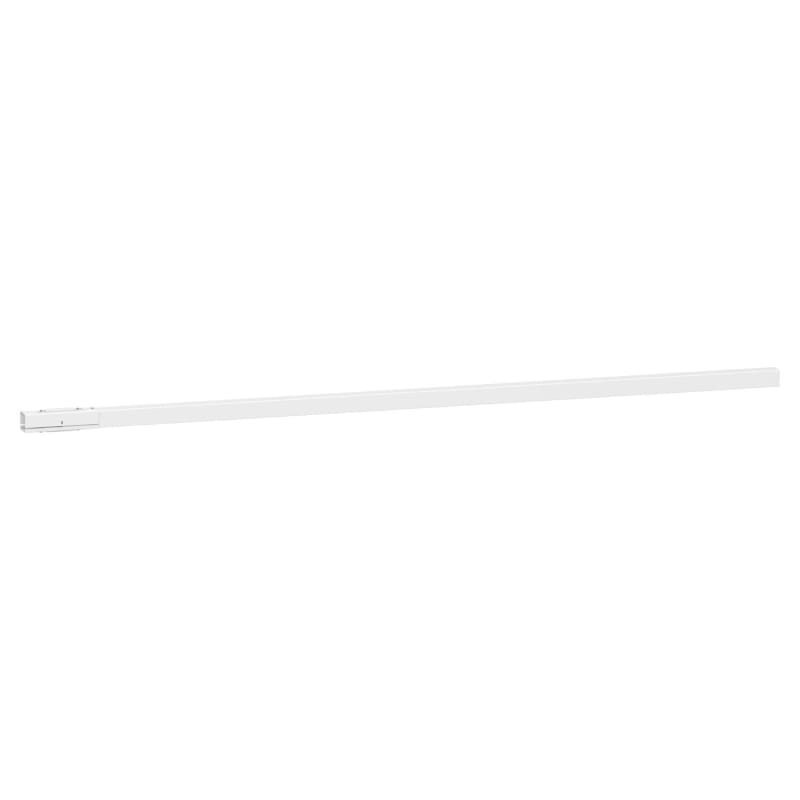

Schneider Electric Canalis KBB empty length 40 A 2 m white

Schneider Electric KBB40EDA20W Canalis KBB empty length busbar trunking, 40 A rated at 35 °C, 2 m length in white RAL 9003. No circuits and no tap-off outlets, screw-mounted, IP55 and IK06 protection. Certified to EN/IEC 61439-6 and 61439-1.

Manufacturer part number (MPN)

KBB40EDA20W

EAN / GTIN

3606480001864

Sales unit

pcs

Package quantity

6 pcs

Range of product

Canalis

Device short name

KBB

Offer type

Classic; Advanced

Product or component type

Straight length

Busbar description

Distribution length

Device application

Lighting; Power socket distribution

[Ie] rated operational current

40 A at 35 °C

[Ue] rated operational voltage

230...400 V

Network frequency

50/60 Hz

Number of circuits

0

Number of tap-off outlets

0

Control type

Without

mounting mode

By screws

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

0.94 kA

[Ipk] rated peak withstand current

9.6 kA

Thermal stress limit

900 kA².s

Maximum radiated magnetic field

2 pT

THDI

0…15 % 40 A; 15…33 % 32 A; 33…100 % 28 A

Maximum voltage drop

<0.3 V with power factor = 1 at 50 Hz with 1A for 100 m long; <0.28 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.25 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.22 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Standards

EN/IEC 61439-6; EN/IEC 61439-1

Width

30 mm

Height

46 mm

Length

2 m

Colour

White (RAL 9003)

Product weight

1.6 kg

IP degree of protection

IP55 conforming to EN/IEC 60529

IK degree of protection

IK06 conforming to EN/IEC 62262

Ambient air temperature for operation

0…35 °C (100 % of In); 35…40 °C (96 % of In); 40…45 °C (93 % of In); 45…50 °C (89 % of In); 50…55 °C (85 % of In)

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

72

Country of origin

FR

Warranty (in months)

18

Model

Single

Flexible

No

RAL-number

9003

Degree of protection (IP)

IP55

Rated current AC 50 Hz

40 A

HS Code

8536.90

• EAN 3606480001864
• SAP 1000285130
• Code 831616
