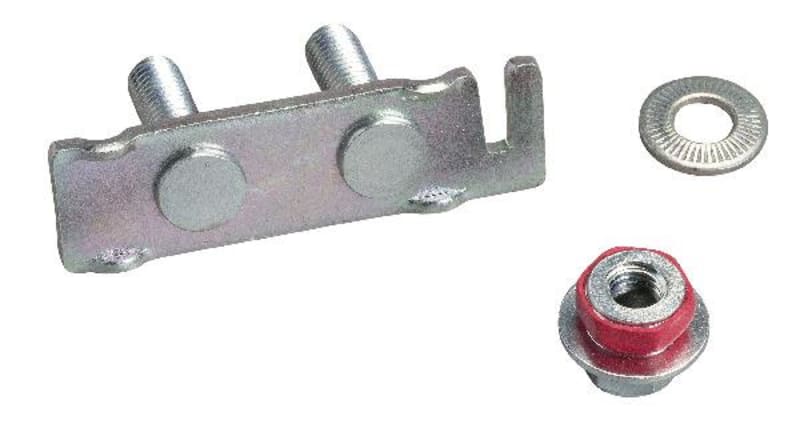

Splice Plates for Linergy LGYE Busbars, Set of 8, 2500 A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04769 splice plates, set of 8, for Linergy Evolution busbars (LGYE) rated up to 4000 A in PrismaSeT P cubicles. Supplied with one nut and one contact washer, three M8 studs, 37 mm length.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04769
- EAN / GTIN
- 3606481869111
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 2500 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Mounting hardware
- Product name
- Linergy LGY
- Accessory / separate part category
- Fixing accessory
- Range compatibility
- Linergy Linergy LGYE busbar; Linergy Linergy LGY busbar; PrismaSeT PrismaSeT P cubicle
- Provided equipment
- 1 nut; 1 contact washer
- Cubicle-device connection
- Busbar; Linergy busbar
- [Ie] rated operational current
- 3200 A; 4000 A
- installation description
- Cubicle
- Number of studs
- 3 stud
- ISO thread
- M8
- Quantity per set
- Set of 8
- Length
- 37 mm
- Colour
- Natural
- Product weight
- 0.9 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481869111
- SAP 1200547150
- Code 82879538
Product Documentation
