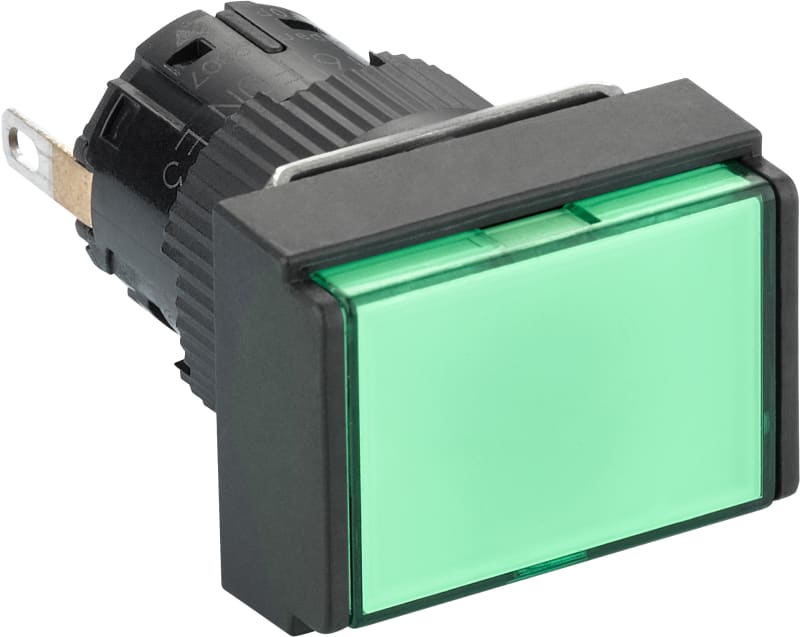

Schneider Electric Monolithic pilot light, Harmony XB6E, rectangular 16mm IP65 green, integral LED 24VDCPOLARISED connector XB6EDV3BP
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB6EDV3BP.
Technical Specifications
- Manufacturer part number (MPN)
- XB6EDV3BP
- EAN / GTIN
- 3389110630169
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 24 V
- Range of product
- Harmony XB6E
- Product or component type
- Monolithic pilot light
- Device short name
- XB6E
- Bezel material
- Plastic
- Mounting diameter
- 16 mm
- Sale per indivisible quantity
- 5
- Shape of signaling unit head
- Rectangular
- Cap/operator or lens colour
- Green
- Light source
- Integral LED
- Light block supply
- Direct
- [Us] rated supply voltage
- 24 V DC polarised
- Product weight
- 0.006 kg
- Overvoltage category
- II conforming to IEC 60536
- Operating position
- Any position
- Marking
- CE
- Connections - terminals
- Insulated faston, connection size: 2.8 x 0.5 mm; Solder terminal, clamping capacity: <= 0.75 mm² 19 AWG; Fast connector socket
- Tightening torque
- 0.6…1 N.m
- [Ui] rated insulation voltage
- 250 V (pollution degree 3) conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 2.5 kV conforming to IEC 60947-1
- Signalling type
- Steady
- Current consumption
- 10 mA
- Service life
- 30000 h
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -10…55 °C
- IP degree of protection
- IP65 conforming to IEC 60529
- Standards
- JIS C 852; IEC 60947-5-1; UL 508; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; JIS C8201-1
- Product certifications
- CCC; cURus
- Vibration resistance
- 1 mm (f= 10…55 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 10 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3389110630169
- SAP 1000040991
- Code 82027220
