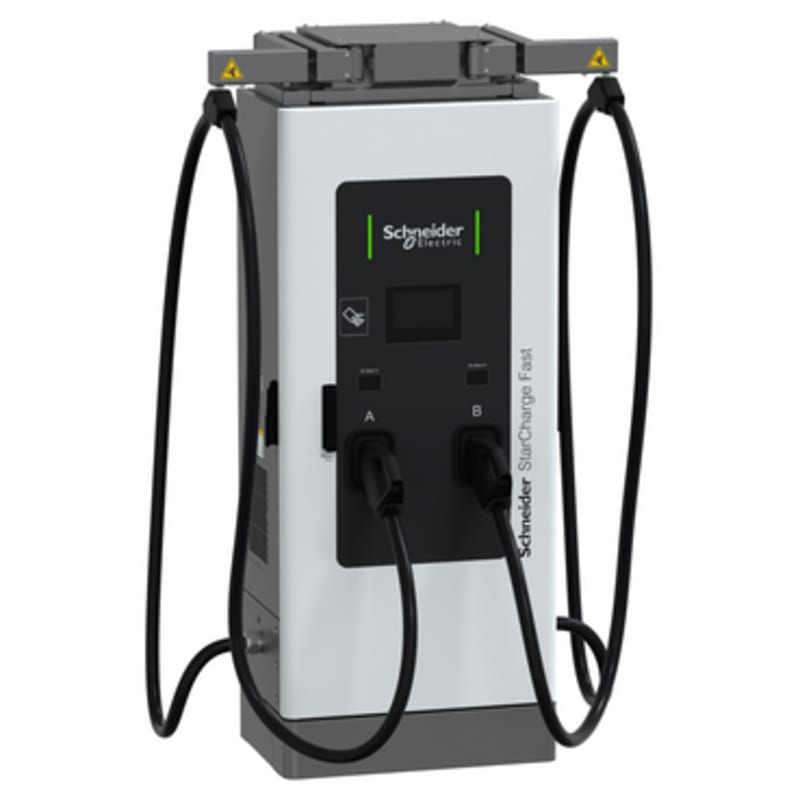

Schneider Electric Fast charging station, Schneider StarCharge Fast 60, 60kW, 2XCCS2, 3.6M cable range, cable management EVD2S60TBB

Schneider Electric EVD2S60TBB Fast charging station, Schneider StarCharge Fast 60, 60kW, 2xCCS2, 3,6m kabelrekkevidde, cable management.

Manufacturer part number (MPN)

EVD2S60TBB

EAN / GTIN

3606487675280

Sales unit

pcs

Power

60 kW

Range

Schneider StarCharge Fast 60

Product name

Schneider StarCharge Fast 60

Product or component type

Fast charging station

Type of installation

Indoor/outdoor

Poles description

3P + N + E

Range compatibility

EVlink EVlink Field Services; EVlink EVlink Load Management System

Device application

Electrical Vehicle charger

Mounting location

Floor stand

Earthing system

TN-S; TN-C-S; TT; Compatible IT with additional isolation transformer on the power supply

[Us] rated supply voltage

380...415 V AC at 50...60 Hz, 3 phases + neutral

Input current

95…105 A

Nominal output power

SAE CCS Combo 2: 60 kW at 0…200 A150...1000 V DC

Output cable range in m

Both side: 2 charging cable of 3.5 m

Number of outputs

2

Connector type

SAE CCS Combo 2

Provided equipment

energy meter per output

Accuracy class of energy meter

Class 1

Accuracy class error of energy meter

1 % of full scale

Cable management system

With

Protection type

Short-circuit protection on output; Overload protection; Ground fault protection; Temperature rise protection

Access control system

RFID authentication card MIFARE Classic conforming to ISO/IEC 14443 A and B; RFID authentication card MIFARE Ultralight; RFID authentication card MIFARE DESFire EV1; RFID authentication card MIFARE DESFire EV2; RFID authentication card MIFARE Plus; RFID authentication card NFC; Autocharge; Plug & charge conforming to ISO 15118; Free access; QR code/application

Contactless payment terminal

Without

Display type

LCD touch screen : 7 inch LED

Main user language (constantly evolving)

English; Bulgarian; Czech; Danish; Dutch; Estonian; Finnish; French; German; Greek; Hebrew; Hungarian; Indonesian; Italian; Norwegian; Portuguese; Spanish; Swedish; Multi-language

Control button type

Charge interruption button

Material

Enclosure: stainless steel 430

Colour

Front door: signal white (RAL 9003); Front door: black (RAL 9005); Body: dark grey silver; Green

Efficiency

97 %

Power factor

0.99

Ambient air temperature for operation

-30…50 °C (with derating above 50 °C)

Height

1770 mm

Width

1020 mm

Depth

470 mm

Net weight

268 kg

Services

Commercial service plan; Commissioning service; Warranty extension up to 5 years; Repair service

Ethernet service

Web browser

Communication port protocol

OCPP 1.6; Modbus TCP; Ethernet TCP/IP

Communication network type

4G; WLAN; Ethernet TCP/IP; Wi-Fi

Electromagnetic compatibility

Immunity for industrial environments: ; Emission standard for industrial environments:

IP degree of protection

IP55

IK degree of protection

IK10; Screen: IK08

Ambient air temperature for storage

-40…70 °C

Operating altitude

0...2000 m

Relative humidity

5…95 %, without condensation

Standards

IEC 61851-1:ed. 3; IEC 61851-23:ed. 1; IEC 62196-1; IEC 62196-3; EN/IEC 61000-6-2:2005; EN/IEC 61000-6-4:class A; ISO 15118-2; DIN 70121; VDV 261

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.930 cm

Package 1 Width

1167.000 cm

Package 1 Length

86.000 cm

Package 1 Weight

330.000 kg

Warranty (in months)

24

Country of origin

China

HS Code

8537.10

• EAN 3606487675280
• SAP 1200902231
• Code 84153499
