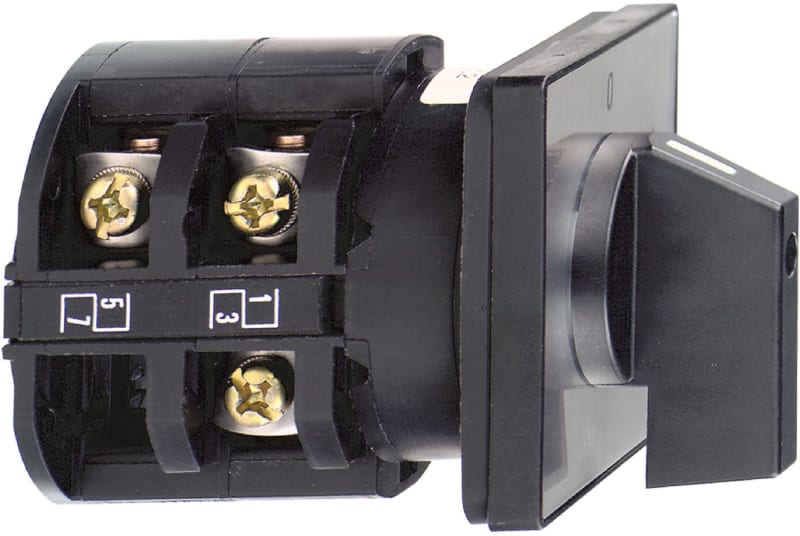

Schneider Electric cam switch - 3-Pole - 60° - 32 A - screw mounting K30C003AP

Schneider Electric K30C003AP Cam Switch Of/On 3-pole 60º.

Manufacturer part number (MPN)

K30C003AP

EAN / GTIN

3389110081152

HS code

8536.90

Sales unit

pcs

Package quantity

30 pcs

Number of poles

3P

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K30

[Ith] conventional free air thermal current

32 A

Product mounting

Front mounting

fixing mode

4 holes

Cam switch head type

With front plate 64 x 64 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 0 - 1 black marking

Cam switch function

Switch

Return

Without

Off position

With Off position

Poles description

3P

Switching positions

Right: 0° - 60°

IP degree of protection

IP40 conforming to IEC 60529

Switching angle

60 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

Short-circuit current

5000 A

Short-circuit protection

50 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 947-1; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm²; Captive screw clamp terminals solid, clamping capacity: 2 x 6 mm²

Tightening torque

1.2 N.m

Switching capacity in mA

11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms); 1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms); 16000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms); 16000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms); 16000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms); 23000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms); 23000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms); 23000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms); 25000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms); 25000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms); 25000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms); 400 mA DC at 440 V 1 contact(s) for resistive load (T = 1 ms); 400 mA DC at 660 V 2 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 110 V 1 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 220 V 2 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 330 V 3 contact(s) for resistive load (T = 1 ms)

Mechanical durability

300000 cycles

CAD overall width

64 mm

CAD overall height

64 mm

CAD overall depth

93 mm

Product weight

0.224 kg

Standards

IEC 60947-3

Product certifications

CULus 120 V 2 hp 1 phase; CULus 240 V 5 hp 1 phase; CULus 240 V 5 hp 3 phases; CULus 480 V 20 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536; Class II conforming to NF C 20-030

Country of origin

AT

Warranty (in months)

18
