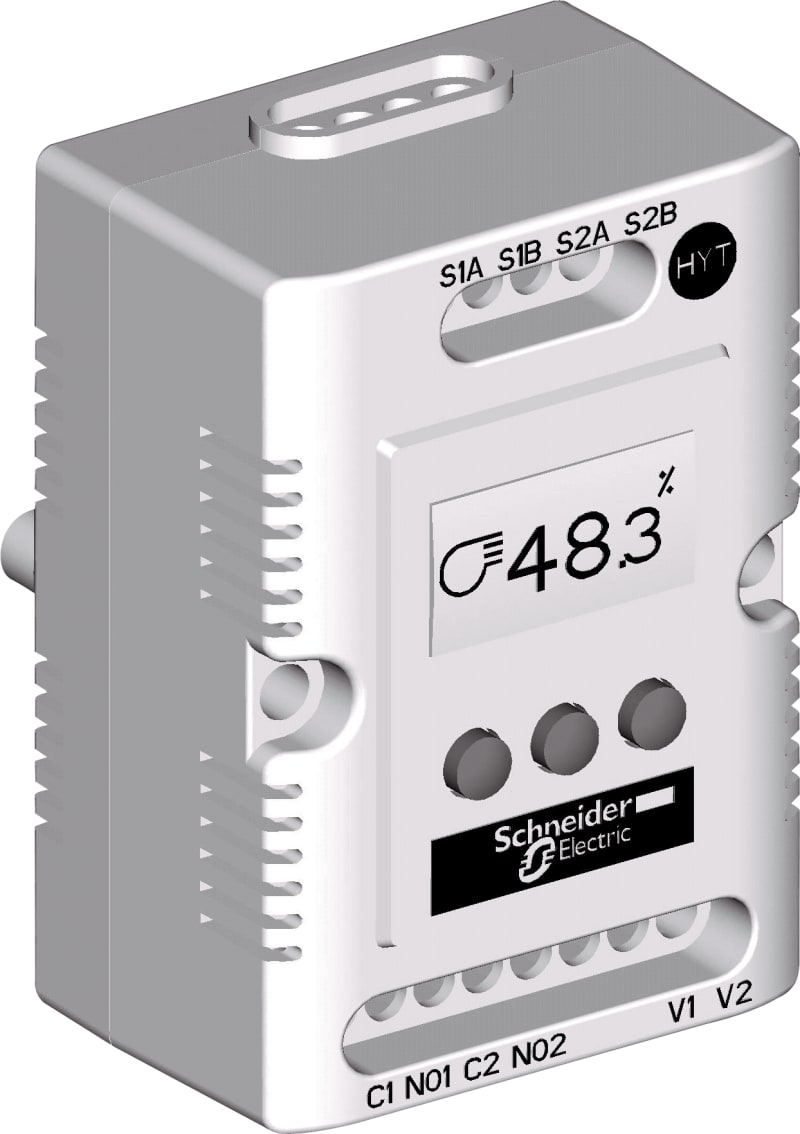

Schneider Electric Climasys CC - electronic hygrotherm - 95 ...135V - temp -40…80°C - Hr 20…80% NSYCCOHYT120VID
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCCOHYT120VID HYGROTHERM 110-120V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCCOHYT120VID
- EAN / GTIN
- 3606480152580
- Sales unit
- pcs
- Voltage
- 110-120 V
- Range
- ClimaSys
- Product name
- ClimaSys CC
- Product or component type
- Electronic hygrotherm
- Temperature setting range
- -40…80 °C
- Humidity setting range
- 20…80 %
- Display type
- OLED screen
- Information displayed
- Temperature in °F; Relative humidity; Temperature in °C
- Input voltage
- 90...140 V AC
- Sensor type
- Optional NTC external sensor
- Maximum switching capacity
- 4 A 120 V AC
- Electrical connection
- 8 connectors, clamping capacity: 2.5 mm²
- mounting mode
- By screws; Clipped
- Height
- External: 85 mm
- Width
- External: 56 mm
- Depth
- External : 44 mm
- Mounting location
- 35 mm DIN rail; Cross rails; On mounting plate; Spacial upright
- Ambient air temperature for operation
- -40…80 °C
- Hysteresis
- 2 K programmed value
- Number of outputs
- 2 ventilation/heating function
- Material
- PC
- Colour
- Light grey
- Flame retardance
- Self-extinguishing conforming to UL94 (material V0)
- Product certifications
- UR
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 4.500 cm
- Package 1 Weight
- 180.000 g
- Country of origin
- CN
- Warranty (in months)
- 18
- Rated voltage AC 50 Hz
- 95–135 V
- Rated voltage AC 60 Hz
- 95–135 V
- Model
- Hygrostat
- Rated voltage
- 135 V
- Rated current In
- 4 A
- Adjustable setting value for relative air humidity
- 20–80 %
- Mounting method
- Clamp mounting
- Type of switch function
- Normally closed contact and normally open contact
- With digital indication
- Yes
Standards & Compliance
- HS Code
- 9032.89
Cross References
- EAN 3606480152580
- SAP 1000470040
- Code 8104571
Product Documentation
