Schneider Electric

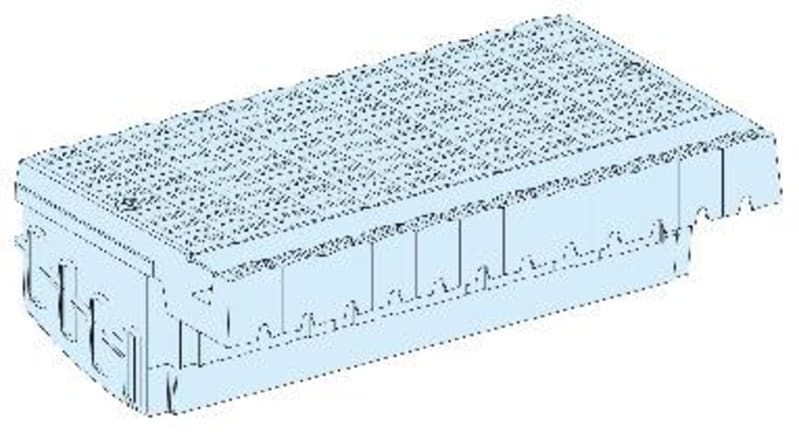

Linergy FC(Polypact) without connection fast 4P P
Part numberLVS04408EAN / GTIN3606481870681HS code8544.42
Electrical Components
Busbar Systems
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04408 Busbarblokk-Linergy FC(Polypact)-without connection-for vertical fast NSX100/250-4P-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04408
- EAN / GTIN
- 3606481870681
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Device feeder
- Product name
- Linergy FC
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Accessory / separate part category
- Connection accessory
- Poles description
- 4P
- Installed device
- ComPact: fixed NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 without earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: fixed NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: motor mechanism - vertical installation; ComPact: plug-in NSX100...160 with earth leakage protection - control: toggle - vertical installation; ComPact: plug-in NSX250 with earth leakage protection - control: toggle - vertical installation
- Number of devices
- 3 (4P)
- Installation direction
- Horizontal
- installation description
- Cubicle - width 650 mm
- Mounting support
- Mounting plate
- [Ui] rated insulation voltage
- 750 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 675 A at 40 °C
- [Ue] rated operational voltage
- 690 V
- [Ipk] rated peak withstand current
- 50 kA
- I²t on activation
- 25000000 A².s
- Permissible current
- 675 A at 40 °C; 615 A at 60 °C; 570 A at 70 °C
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA; KEMA
- Quantity per set
- Set of 1
- Length
- 440 mm
- Height
- 132 mm
- Depth
- 235 mm
- Product weight
- 8 kg
- Colour
- Black
- Connections - terminals
- Outgoer: plug in (phase / neutral) , 3 outgoers
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.0 cm
- Package 1 Width
- 24.5 cm
- Package 1 Length
- 46.0 cm
- Package 1 Weight
- 4.488 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 42
- Package 2 Height
- 103.0 cm
- Package 2 Width
- 80.0 cm
- Package 2 Length
- 120.0 cm
- Package 2 Weight
- 200.0 kg
- Warranty (in months)
- 18
- Insulated
- Yes
- Number of phases
- 3
- Cross section
- 300 mm²
- Rated permanent current Iu
- 675 A
- Conditioned rated short-circuit current Iq
- 85 kA
- Width in number of modular spacings
- 650
- Rated surge voltage
- 8 kV
- Rated short-time withstand current lcw
- 50 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- Yes
- Suitable for number of devices
- 3
- Max. rated operation voltage Ue
- 690 V
- Module width
- 35 mm
- Country of origin
- France
