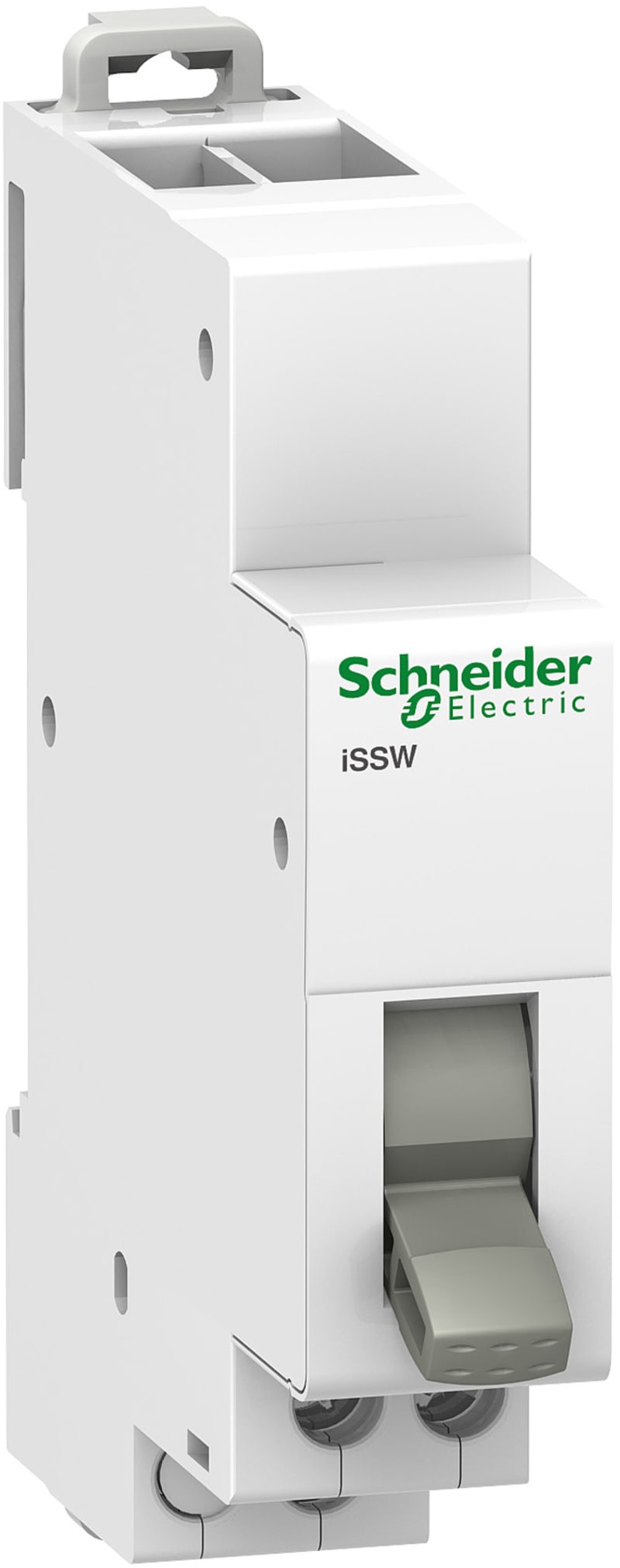

Schneider Electric linear switch - iSSW - 1 C/O - 20A - 250 V AC - 2 positions A9E18070
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18070 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Selector switch iSSW 20-1 2 Pos.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18070
- EAN / GTIN
- 3606480088476
- Sales unit
- pcs
- Package quantity
- 12 pcs
- range of product
- Acti9
- Product name
- Acti9 iSSW
- Product or component type
- Changeover switch
- Device short name
- iSSW
- Device application
- Electrical circuit control
- Poles description
- 1P
- Contacts type and composition
- 1 C/O
- [Ue] rated operational voltage
- 250 V AC 50/60 Hz
- Standards
- IEC 60669-1; IEC 60947-5-1
- [Ie] rated operational current
- 20 A
- Control type
- Toggle 2 positions
- Marking
- 0 - 1
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 75 mm
- Colour
- White
- Electrical durability
- AC-22: 30000 cycles cos Phi = 0.8
- Connections - terminals
- Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible; Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- IP degree of protection
- IP20 conforming to IEC 60529
- Tropicalisation
- 2
- Pollution degree
- 3
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -20…50 °C
- Ambient air temperature for storage
- -40…70 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 1.900 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 44.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 12
- Package 2 Height
- 8.000 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 23.000 cm
- Package 2 Weight
- 588.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 108
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 5.700 kg
- Country of origin
- BE
- Warranty (in months)
- 18
- Switching function
- Two-way switch
- Number of contacts as change-over contact
- 1
- Number of poles
- 1
- Rated current
- 20 A
- Rated voltage
- 250 V
- Min. rated voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- No
- Colour calotte
- White
- Width in number of modular spacings
- 1
- Built-in depth
- 75 mm
- Degree of protection (IP)
- IP40
- Imprint/indication
- None
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480088476
- SAP 1000325929
- Code 8873833
