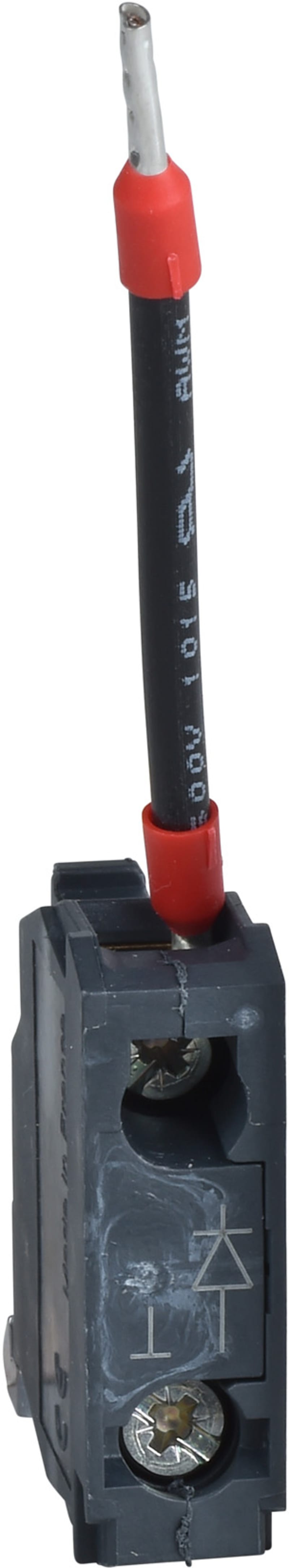

Schneider Electric ZBZG156 single light block for test light function 12V
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ZBZG156 single light block for test light function 12V is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Voltage: 120 V; Range of product: Harmony XB4; Harmony XB5; Product or component type: Block for test light; Product compatibility: Integral LED; BA 9s; Light block type: Single block for test light function.
Technical Specifications
- Manufacturer part number (MPN)
- ZBZG156
- EAN / GTIN
- 3389118030107
- Sales unit
- pcs
- Voltage
- 120 V
- Range of product
- Harmony XB4; Harmony XB5
- Product or component type
- Block for test light
- Product compatibility
- Integral LED; BA 9s
- Light block type
- Single block for test light function
- [Us] rated supply voltage
- 12 V AC/DC; 24 V AC/DC; 24...120 V AC/DC
- Electrical connection
- 1 wire
- Material
- Plastic
- Electrical shock protection class
- Class I for Harmony XB4 conforming to IEC 60536; Class II for Harmony XB5 conforming to IEC 60536
- Product weight
- 0.01 kg
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Standards
- UL 508; IEC 60947-5-5; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-1; IEC 60947-5-5; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; JIS C 4520
- Product certifications
- DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn for 18 ms conforming to IEC 60068-2-27; 50 gn for 11 ms conforming to IEC 60068-2-27
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.4 cm
- Package 1 Width
- 8.8 cm
- Package 1 Length
- 5.2 cm
- Package 1 Weight
- 18.0 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 165
- Package 2 Height
- 30.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 3.65 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
- Type of electrical accessory/spare part
- Diode element
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389118030107
- SAP 1000030741
- Code 8732809
