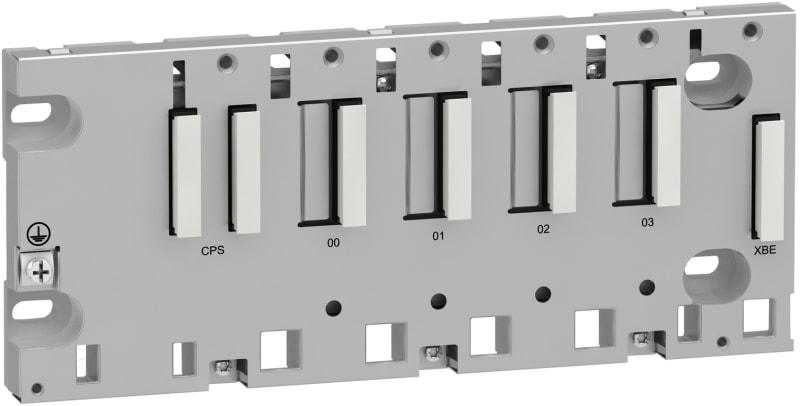

Schneider Electric BMXXBP0400 rack M340 - 4 slots - panel, plate or DIN rail mounting
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric BMXXBP0400 rack M340 - 4 slots - panel, plate or DIN rail mounting is listed under Computer & Electronics / Racks & Enclosures. Sales unit: pcs; Package quantity: 13 pcs; Range of product: Modicon X80; Product or component type: Backplane; Power consumption in W: 1.12 W; Electrical connection: 1 connector (XBE) expansion module.
Technical Specifications
- Manufacturer part number (MPN)
- BMXXBP0400
- EAN / GTIN
- 3595863908862
- Sales unit
- pcs
- Package quantity
- 13 pcs
- Range of product
- Modicon X80
- Product or component type
- Backplane
- Number of slots
- 4 bus X
- Product compatibility
- BMXP34 processor; BMXCPS power supply; I/O module; Specific application module
- Power consumption in W
- 1.12 W
- Electrical connection
- 1 connector (XBE) expansion module
- Fixing mode
- By 4 M4/M5/M6 screws, mounting on panel; By 4 M4/M5/M6 screws, mounting on mounting plate; By clips, mounting on 35 mm symmetrical DIN rail
- Height
- 103.7 mm
- Width
- 242.4 mm
- Depth
- 19 mm
- Product weight
- 0.63 kg
- IP degree of protection
- IP20
- Ambient air temperature for operation
- 0…60 °C
- Relative humidity
- 10…95 % without condensation
- Directives
- 2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility
- Product certifications
- CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy
- Standards
- EN/IEC 61131-2; EN/IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.600 cm
- Package 1 Width
- 15.200 cm
- Package 1 Length
- 32.500 cm
- Package 1 Weight
- 681.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 13
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 9.651 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 52
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 48.604 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for safety functions
- No
- Type of voltage (input voltage)
- AC/DC
- Redundancy
- No
- With integrated power supply
- Yes
- Suitable for rail mounting
- Yes
- Appendant operation agent (Ex ia)
- No
- Front built-in possible
- Yes
- Rack-assembly possible
- Yes
- Wall mounting/direct mounting
- Yes
- Performance level according to EN ISO 13849-1
- None
- Type of output voltage
- AC/DC
- SIL according to IEC 61508
- None
Standards & Compliance
- HS Code
- 8523.51
Cross References
- EAN 3595863908862
- SAP 1000204113
- Code 851482
Product Documentation
More from Schneider Electric
Schneider Electric

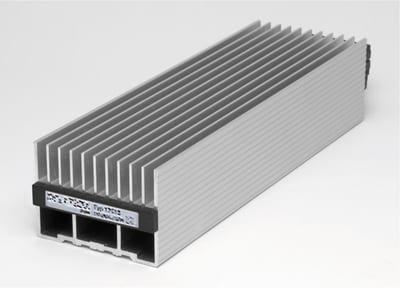

Schneider Electric ClimaSys PTC heating resistance 150W,110-250V NSYCR150WU2
Schneider Electric

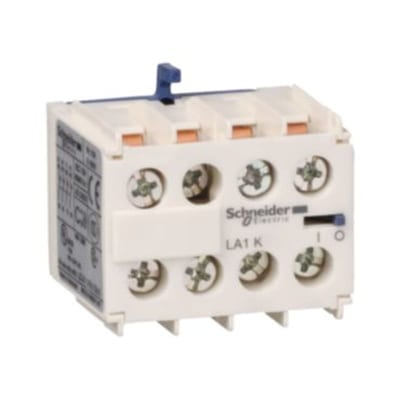

Schneider Electric TeSys K - Auxiliary contact block - 4 NO - screw-clamps terminals LA1KN40
Schneider Electric

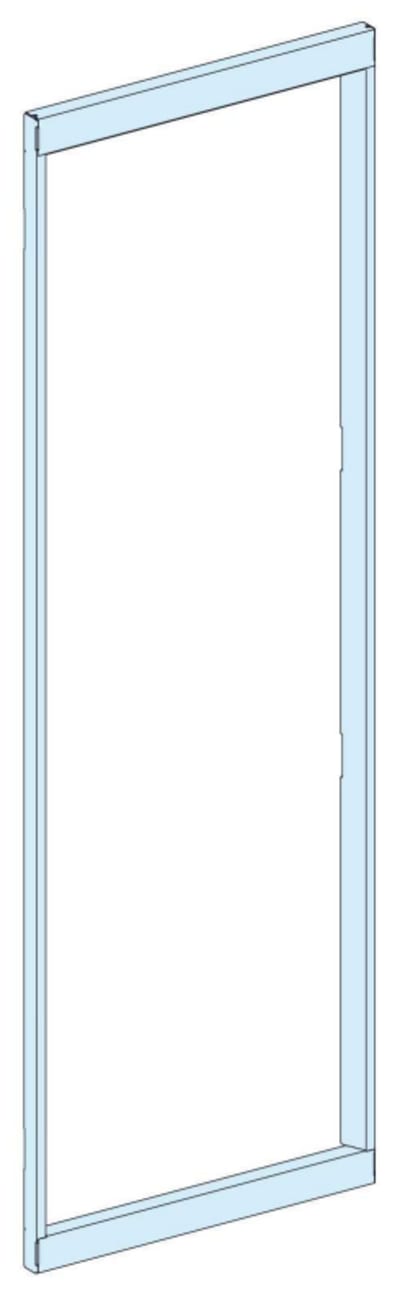

Frontframe IP30 PrismaSeT P B650
LVS08576
Schneider Electric

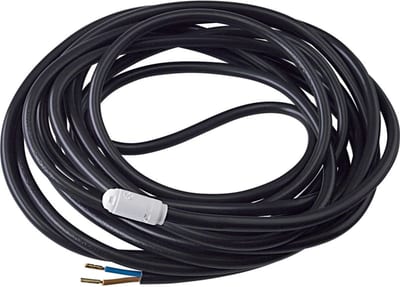

Schneider Electric KNX Universal Floor Temperature Sensor
MTN5775-0003
Schneider Electric

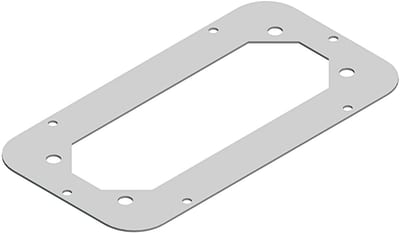

Cableplate 245X130 FOR FL21 FL
NSYTLCFL
Schneider Electric
Schneider Electric Trip unit MA50, ComPacT NSX100/160, 3 poles, magnetic protections, motor protection, 50A rating C103MA050
Schneider Electric

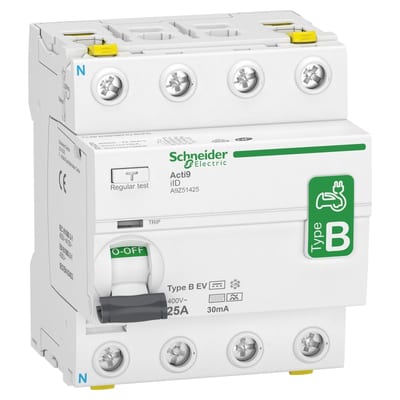

Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 25A, B-EV (Electric Vehicle) type, 30MA, double terminal A9Z51425
Schneider Electric

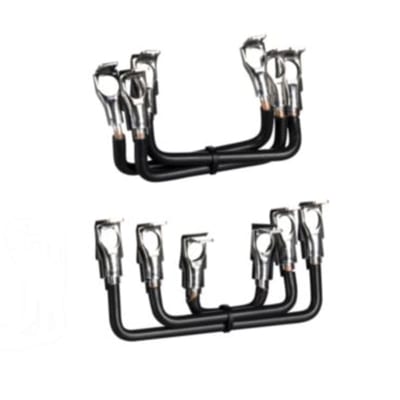

Schneider Electric LA9D8069 Set of power connections, parallel and reverser bars, for 3P reversing contactors assembly, LC1D80-D95
