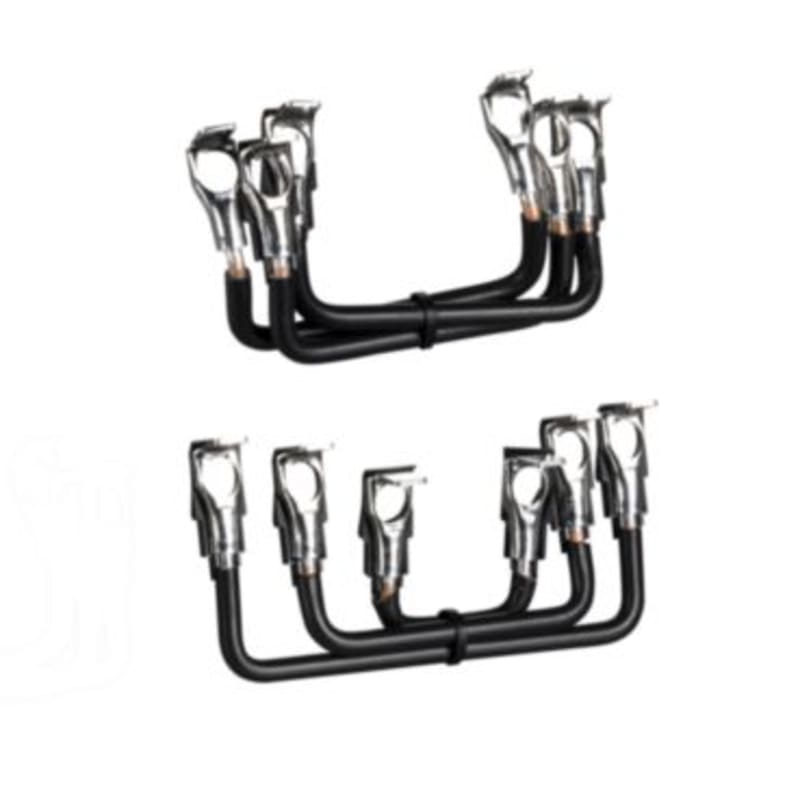

Schneider Electric LA9D8069 Set of power connections, parallel and reverser bars, for 3P reversing contactors assembly, LC1D80-D95
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LA9D8069 Set of power connections, parallel and reverser bars, for 3P reversing contactors assembly, LC1D80-D95 is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 12 pcs; Range of product: TeSys Deca; Range: TeSys; Linergy; Device short name: LA9D; Product or component type: Set of connections.
Technical Specifications
- Manufacturer part number (MPN)
- LA9D8069
- EAN / GTIN
- 3389110230161
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range of product
- TeSys Deca
- Range
- TeSys; Linergy
- Device short name
- LA9D
- Product or component type
- Set of connections
- Poles description
- 3P
- Electrical circuit type
- Reversing contactor
- Range compatibility
- TeSys TeSys D; TeSys TeSys Deca
- Product compatibility
- LC1D80; LC1D95
- Product weight
- 0.49 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.0 cm
- Package 1 Width
- 15.5 cm
- Package 1 Length
- 8.5 cm
- Package 1 Weight
- 460.0 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 12
- Package 2 Height
- 15.0 cm
- Package 2 Width
- 30.0 cm
- Package 2 Length
- 40.0 cm
- Package 2 Weight
- 5.845 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Type of accessory/spare part
- Connector
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110230161
- SAP 1000017039
- Code 8144475
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric RJ45 network socket, Actassi, Shielded, Cat 5E, DPM bag x 1, silver VDIB17715B01
Schneider Electric
Schneider Electric Circuit breaker basic frame, ComPacT NSX160H, 70KA/415VAC, 3 poles, 160A frame rating, without trip unit C16H3
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H105W105D55 EXT.H116W116D62 Opaque cover H10 NSYTBS11116
Schneider Electric
Schneider TeSys D Contactor LC1D80A 80A 3P 24V DC Coil
LC1D80ABBE
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X800X400MM, IP55 NSYSFN18840
Schneider Electric

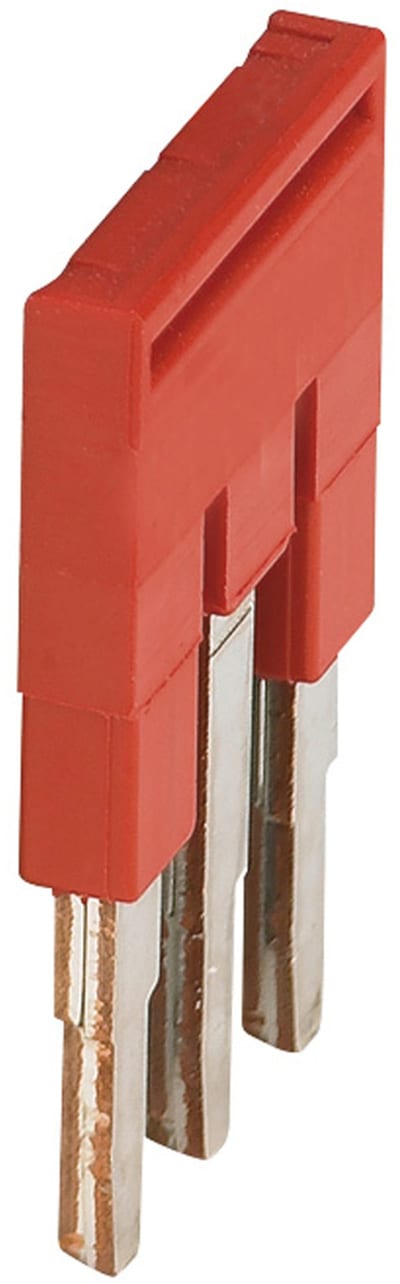

Jumper link 3 pole for 2,5mm² - red
NSYTRAL23
Schneider Electric

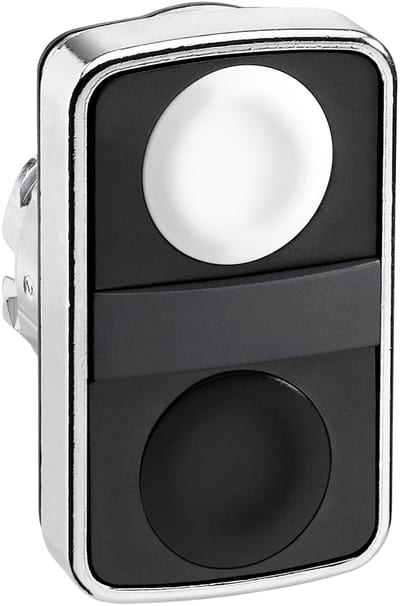

Schneider Electric ZB4BA7120 white flush/black flush double-headed pushbutton Ø22 unmarked
Schneider Electric

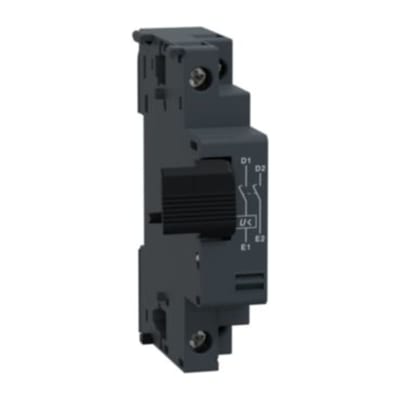

Schneider Electric TeSys GV2 - safety undervoltage trip - 380...400V AC 50Hz GVAX385
