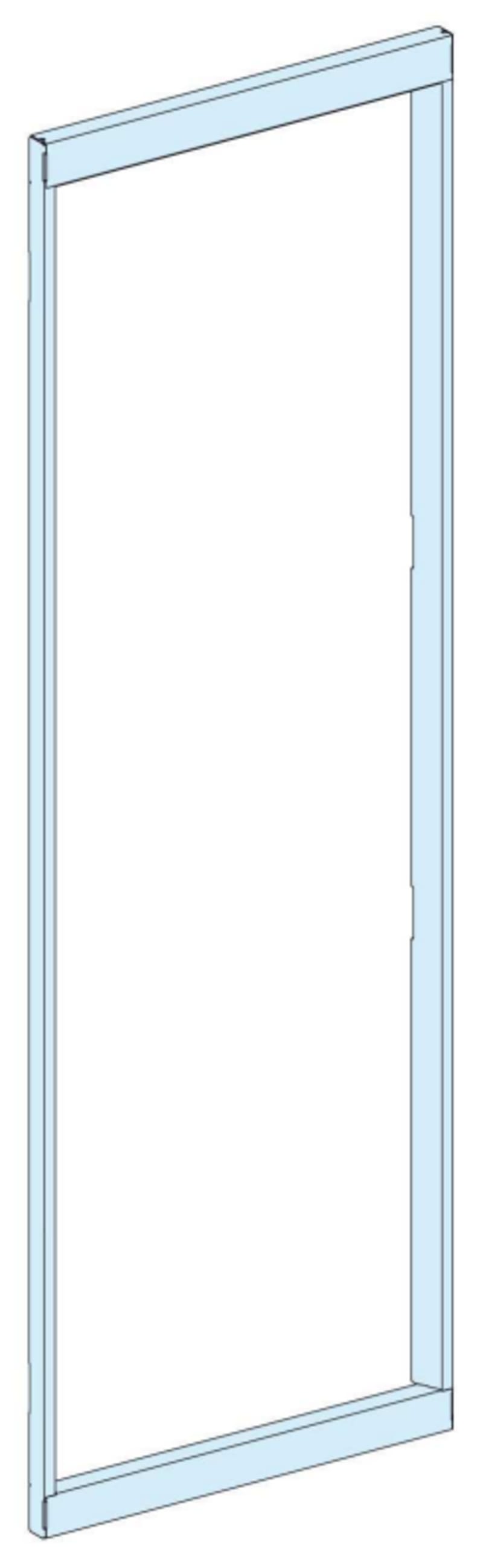

Frontframe IP30 PrismaSeT P B650
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08576 — IP30 COVER FRAME W650.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08576
- EAN / GTIN
- 3606481878861
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Cover frame
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Provided equipment
- cover frame
- Enclosure mounting
- Floor-standing
- type of door
- Cover frame
- IP degree of protection
- IP30
- installation description
- Cubicle - width 650 mm
- door opening angle
- 120 °
- Number of vertical modules [50 mm]
- 36
- Quantity per set
- Set of 1
- Height
- 1926.2 mm
- Width
- 650 mm
- Product weight
- 6.76 kg
- Material
- Treated sheet steel
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK07 conforming to EN/IEC 62262
- Standards
- IEC 61439-1; IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 70.000 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 7.848 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 12
- Package 2 Height
- 101.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 119.176 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481878861
- SAP 1200547300
- Code 82879482
