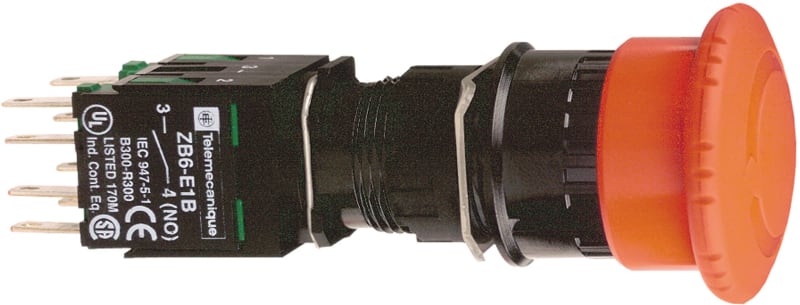

Emergency Stop Button Push/turn No+2NC

Schneider Electric XB6AS8349B Control device 16mm, complete units.

Manufacturer part number (MPN)

XB6AS8349B

EAN / GTIN

3389110071542

Sales unit

pcs

Package quantity

75 pcs

Contact configuration

NO + 2 NC

Range of product

Harmony XB6

Product or component type

Complete emergency stop push-button

Device short name

XB6

Bezel material

Plastic

Mounting diameter

16 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

trigger action and mechanical latching

Reset

Turn to release

Operator profile

Red mushroom Ø 30 mm, unmarked

Contacts type and composition

1 NO + 2 NC

Contact operation

Slow-break

Connections - terminals

Faston connectors, connection size: 2.8 x 0.5 mm

Height

30 mm

Width

30 mm

Depth

77 mm

Terminals description ISO n°1

(31-32)NC; (13-14)NO; (21-22)NC

Product weight

0.041 kg

Operating position

Any position

Type of keylock

Key 200

Contacts usage

Standard

Positive opening

With conforming to IEC 60947-5-1 appendix K

Operating travel

1 mm (NC changing electrical state); 2 mm (NO changing electrical state); 3.5 mm (total travel)

Operating force

3.5 N NO changing electrical state; 4.5 N NC changing electrical state

Mechanical durability

100000 cycles

Contacts material

Silver alloy (Ag/Ni)

Short-circuit protection

6 A cartridge fuse type gG

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

[Ie] rated operational current

3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1; 1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1; 0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C

Electrical reliability

Λ < 10exp(-8) at 5 V, 1 mA with confidence level of 90 % conforming to IEC 60947-5-4

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

NEMA degree of protection

NEMA 13 conforming to UL 50; NEMA 4 conforming to UL 50; NEMA 4X conforming to UL 50; NEMA 13 conforming to CSA C22.2 No 94; NEMA 4X conforming to CSA C22.2 No 94; NEMA 4 conforming to CSA C22.2 No 94

Standards

UL 508; JIS C 852; CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-1; ISO 13850; IEC 60947-5-5; JIS C8201-5-1; IEC 60947-1; JIS C8201-1

Product certifications

CSA; CCC; GOST; UL

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

75

Country of origin

FR

Warranty (in months)

18

Unlocking method

Turn-release

Number of contacts as normally closed contact

2

Number of contacts as normally open contact

1

Degree of protection (IP)

IP65

Mounting method

Built-in

With lighting

No

Hole diameter

16.2 mm

Connection type auxiliary circuit

Flat plug-in connection

Diameter cap

30 mm

HS Code

8536.50
