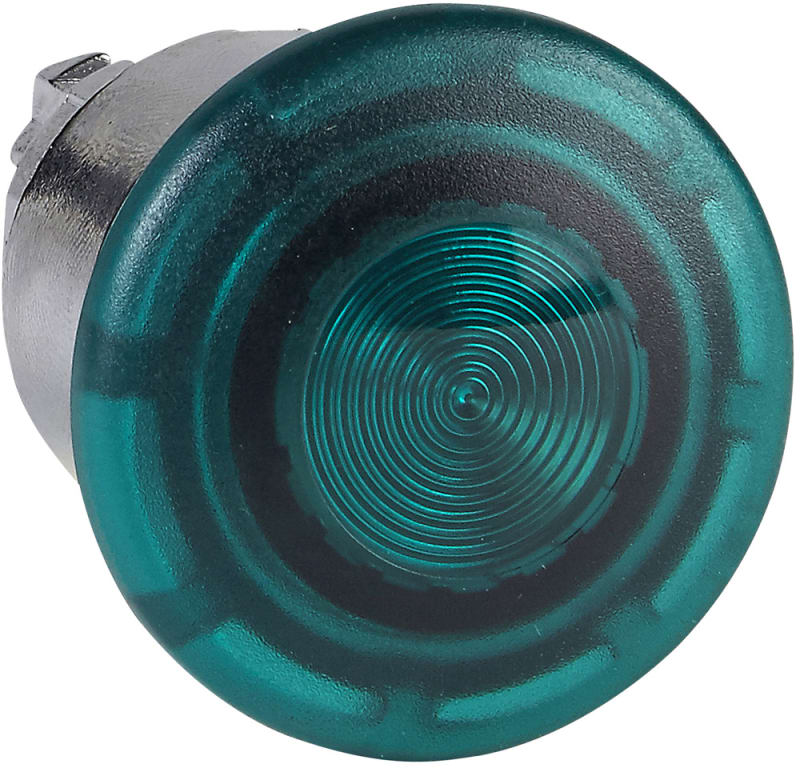

Mushroom push-button W/LIGHT Impulse Green
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4BW433 Mushroom push-button W/Light Impulse Green.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BW433
- EAN / GTIN
- 3389110666489
- Sales unit
- pcs
- Package quantity
- 80 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB4
- Product compatibility
- Universal LED
- Bezel material
- Chromium plated metal
- Head type
- Standard
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Green mushroom Ø 40 mm, unmarked
- Cap/operator or lens colour
- Green
- CAD overall width
- 40 mm
- CAD overall height
- 40 mm
- CAD overall depth
- 53 mm
- Product weight
- 0.051 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with in
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110666489
- SAP 1000041794
- Code 8755529
Product Documentation
More from Schneider Electric
Schneider Electric

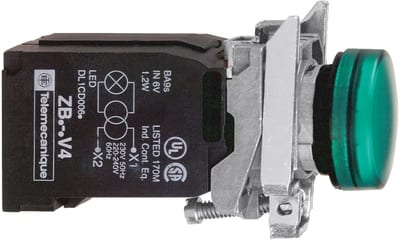

SIGNALL.M/TR.GREEN 230/240V (XB4BV43)
Schneider Electric

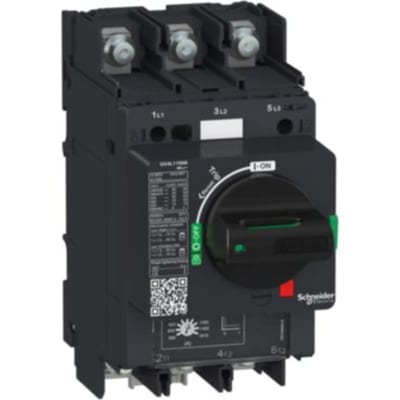

Schneider Electric TeSys GV4 - magnetic circuit breaker - 80A 3P - with compression lug GV4L80N6
Schneider Electric

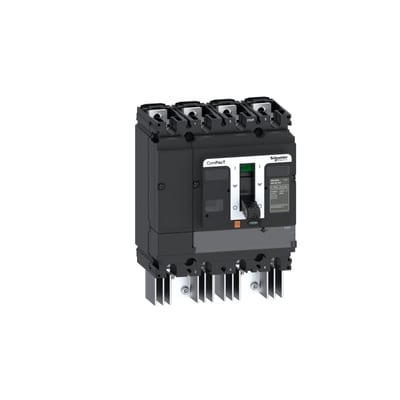

Schneider Electric Switch disconnector ComPacT NSX250NA DC EP, 4 poles, fixed, 100A rating, 1500V C254100D3S
Schneider Electric

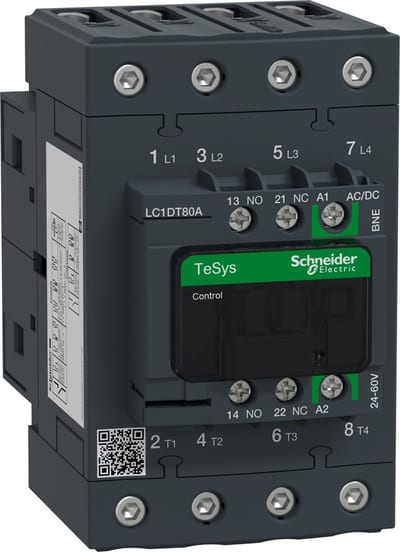

Schneider Electric Contactor, TeSys Deca Advanced, 4P(4NO), AC-1, <=440V, 80A, 24...60V AC/DC coil, EverLink BTR screws LC1DT80ABNE
Schneider Electric

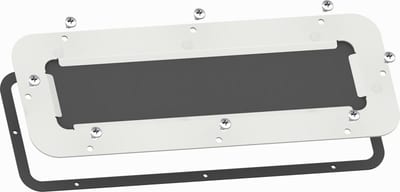

Flexicable flange 445X130
NSYTLEME
Schneider Electric

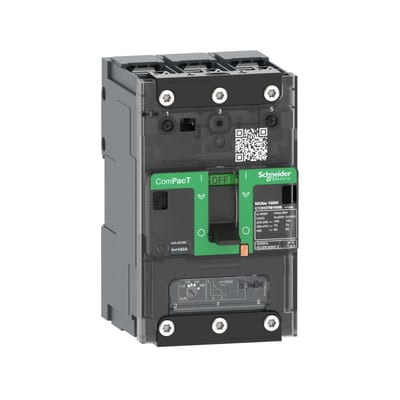

Schneider Electric Circuit breaker, ComPacT NSXm 160B, 25KA/415VAC, 3 poles, TMD trip unit 80A, lugs/busbars C11B3TM080B
Schneider Electric

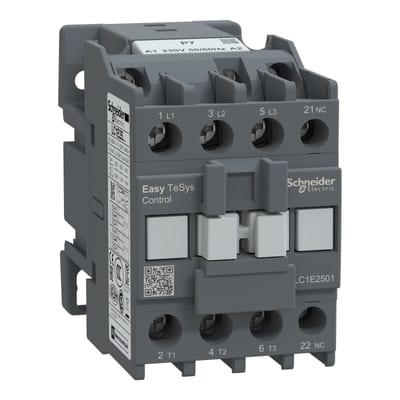

Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,25A,230V AC coil,1NC auxiliary contact LC1E2501P7
Schneider Electric

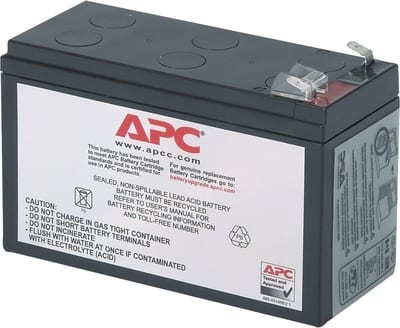

APC Replacements Battery
