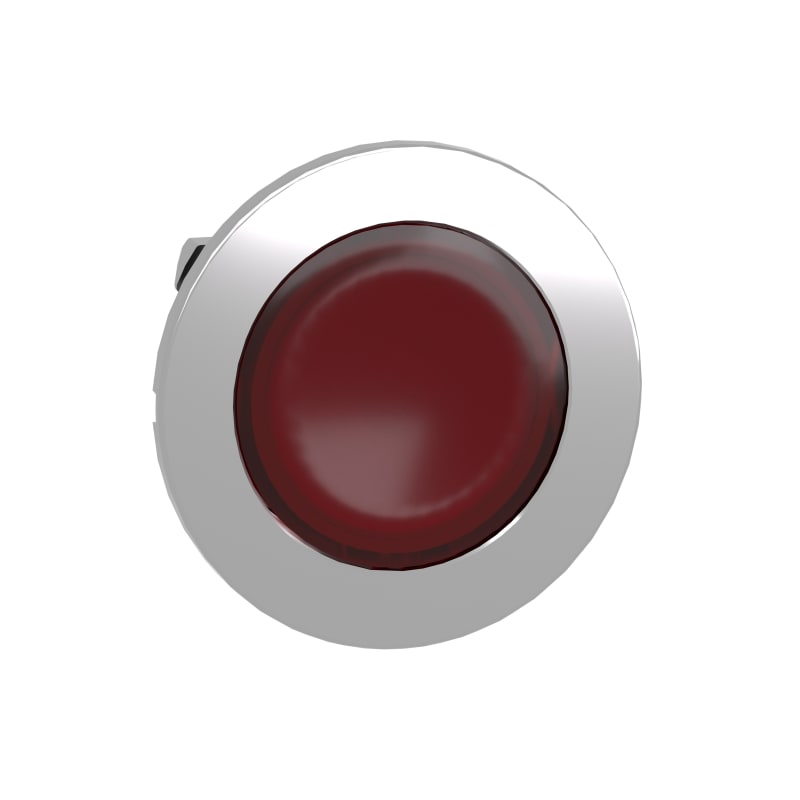

Indicator lamp flush red (ZB4FV043)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4FV043 Pilot Light Head flush for LED in red colour.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4FV043
- EAN / GTIN
- 3606489582555
- HS code
- 8539.52
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for pilot light
- Product compatibility
- Universal LED
- Device short name
- ZB4F
- Bezel material
- Chromium plated metal
- Mounting diameter
- 30.5 mm
- Sale per indivisible quantity
- 1
- Head type
- Built-in-flush
- Shape of signaling unit head
- Round
- Cap/operator or lens colour
- Red
- Operator additional information
- With plain lens
- CAD overall width
- 36.6 mm
- CAD overall height
- 36.6 mm
- CAD overall depth
- 31 mm
- Product weight
- 0.058 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Electrical composition code
- P1 in front mounting with integral LED; P2 in front mounting with integral LED and transformer
- Device presentation
- Basic element
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -40…70 °C
- Overvoltage category
- Class I conforming to IEC 60536
- IP degree of protection
- IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E
- IK degree of protection
- IK06 conforming to IEC 50102
- Standards
- IEC 60947-5-4; IEC 60947-5-1; UL 508; CSA C22.2 No 14; IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1
- Product certifications
- UL listed; CSA; CCC; EAC
- Vibration resistance
- 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 80
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8539.52
Cross References
- EAN 3606489582555
- SAP 1200223657
- Code 82176789
Product Documentation
