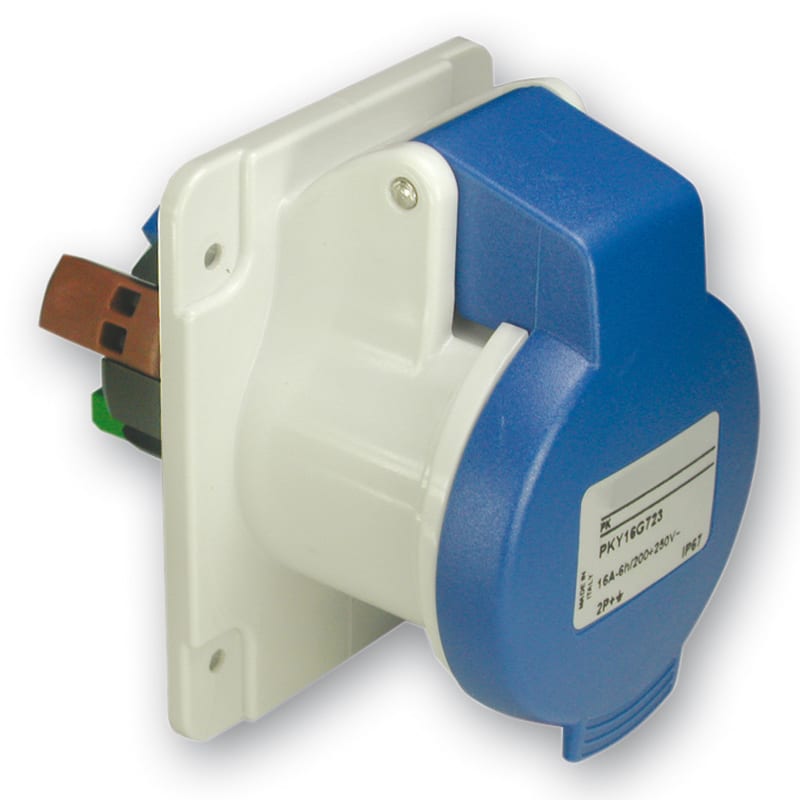

Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 16A, 2P+E, 220V, IP44 PKY16G423
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY16G423 PratiKa socket outlet - fast - straight - 16 A - 2P + E - 200.250 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY16G423
- EAN / GTIN
- 3303432012038
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V
- Rated current
- 16 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 2P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Straight
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 200...250 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 1…2.5 mm²
- Product weight
- 0.146 kg
- Base dimension
- 65 x 85 mm
- Height
- 85 mm
- Width
- 65 mm
- Depth
- 94 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432012038
- SAP 1200199260
- Code 82173949
Product Documentation
More from Schneider Electric
Schneider Electric
Back Piece for Mounting Frame 2 × 45 Modules
INS52153
Schneider Electric
NG125L/D 63-3 Modular Power Switch
18855
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 250A, 208 to 690V AC, control supply 110 to 230V AC ATS480C25Y
Schneider Electric
Retrofit bracket f/ G115-225
LA9GRFB1
Schneider Electric
Schneider Electric Solid state panel mount relay, 75 A, zero voltage switching, thermal pad, input 90…280 V AC, output 48…660 V AC SSP1A475M7T
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 13A, B curve, 6000A, A type, 30MA A9D56613
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 220V AC 50/60Hz coil, screw clamp terminals LC1D32M7
Schneider Electric

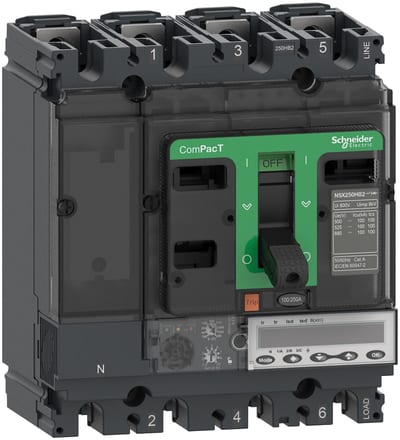

Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 5.2E trip unit 250A C25V45E250
