Schneider Electric

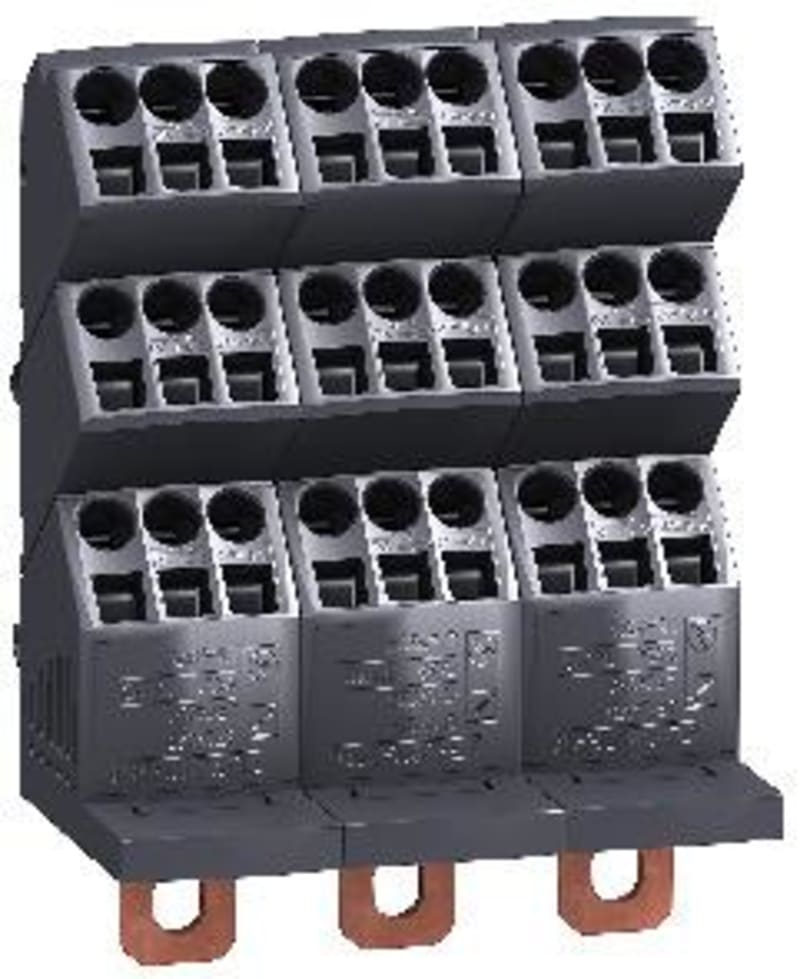

Linergy DP(Polyblock)250A 3P-27 HOLES G/P
Part numberLVS04033EAN / GTIN3606481870872HS code8536.90
Electrical Components
Terminal Blocks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04033 Linergy DP(Polyblock)-fordelingsblokk for DIN rail-250A 3P-27 holes for PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04033
- EAN / GTIN
- 3606481870872
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 3P
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Distribution block
- Product name
- Linergy DP
- Range compatibility
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma POLAR WHITE enclosure; PrismaSeT PrismaSeT Pack 250 enclosure
- Accessory / separate part category
- Current distribution accessory
- IP degree of protection
- IPxx B
- Mounting support
- Mounting plate; DIN rail
- Installed device
- EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - horizontal installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...250 without earth leakage protection - control: direct front rotary handle - vertical installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: toggle - vertical installation; EasyPact: fixed CVS100...250 with earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INS250 - control: direct front rotary handle - vertical installation; ComPact: fixed INS250 - control: lateral handle - vertical installation; ComPact: fixed INV100 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV100 - control: direct front rotary handle - vertical installation; ComPact: fixed INV160 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV160 - control: direct front rotary handle - vertical installation; ComPact: fixed INV200 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV200 - control: direct front rotary handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - horizontal installation; ComPact: fixed INV250 - control: lateral handle - vertical installation; ComPact: fixed INV250 - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...250 and ammeter without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: motor mechanism - horizontal installation; ComPact: plug-in NSX100...250 without earth leakage protection - control: toggle - horizontal installation; ComPact: fixed NSX100...250 without earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...250 with earth leakage protection - control: toggle - vertical installation; ComPact: fixed NSX100...250 without earth leakage protection - control: direct front rotary handle - vertical installation; ComPact: fixed NSX100...250 with earth leakage protection - control: direct front rotary handle - vertical installation
- Poles description
- 3P
- [Ue] rated operational voltage
- 690 V AC
- [Ui] rated insulation voltage
- 750 V AC
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 250 A at 40 °C
- [Icw] rated short-time withstand current
- 8.5 kA for 1 s
- [Ipk] rated peak withstand current
- 30 kA
- I²t on activation
- 72250000 A².s
- Connections - terminals
- Supply: direct connection120 mm²; Distribution: spring terminal (phase) , 6 x 4…10 mm² (flexible) ; Distribution: spring terminal (phase) , 3 x 6…16 mm² (flexible) ; Distribution: spring terminal (phase) , 6 x 4…10 mm² (rigid) ; Distribution: spring terminal (phase) , 3 x 6…16 mm² (rigid)
- Height
- 140 mm
- Width
- 105 mm
- Depth
- 64 mm
- Product weight
- 0.74 kg
- Colour
- Anthracite grey (RAL 7016)
- Pollution degree
- 3
- Overvoltage category
- III
- Resistance to incandescent wire
- 960 °C conforming to IEC 60695-2-11
- Standards
- IEC 60947-7-1; IEC 61439-1, inside enclosure; IEC 61439-2, inside enclosure
- Product certifications
- ASTA
- Ambient air temperature for operation
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 280
- Country of origin
- PL
- Warranty (in months)
- 18
- Nominal current
- 250 A
- Mounting method
- DIN rail
- Connection type
- Without screws
- Contact safe
- Yes
- Suitable for fine strand conductors
- No
- Suitable for solid conductors
- No
- Suitable for stranded conductors
- No
- Suitable for fine strand conductors without cable end sleeve
- No
- Suitable for extra fine-strand conductors
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481870872
- SAP 1200546791
- Code 82879683
Product Documentation
Document preview: Schneider Electric LVS04033 — OEM Product Page
More from Schneider Electric
Schneider Electric
Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 16A, 2P+E, 220V, IP44 PKY16G423
Schneider Electric
Back Piece for Mounting Frame 2 × 45 Modules
INS52153
Schneider Electric
NG125L/D 63-3 Modular Power Switch
18855
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 250A, 208 to 690V AC, control supply 110 to 230V AC ATS480C25Y
Schneider Electric

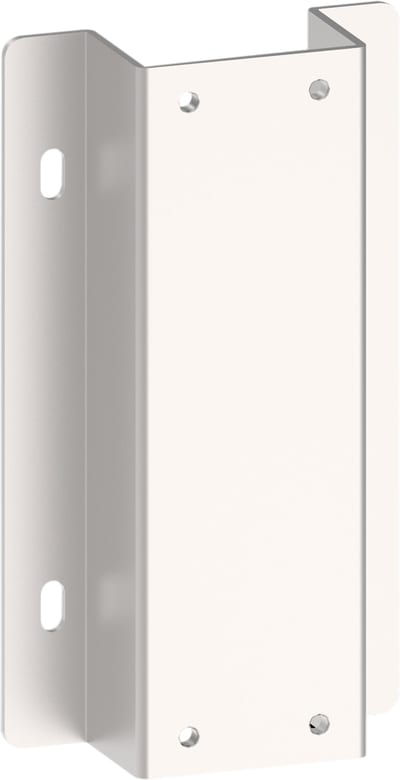

Retrofit bracket f/ G115-225
LA9GRFB1
Schneider Electric

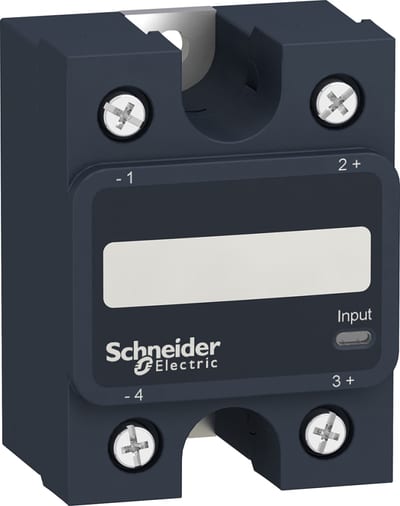

Schneider Electric Solid state panel mount relay, 75 A, zero voltage switching, thermal pad, input 90…280 V AC, output 48…660 V AC SSP1A475M7T
Schneider Electric

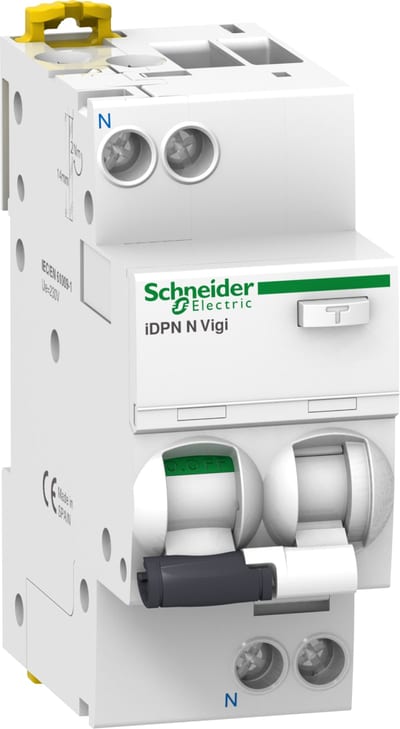

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 iDPN N Vigi, 1P+N, 13A, B curve, 6000A, A type, 30MA A9D56613
Schneider Electric

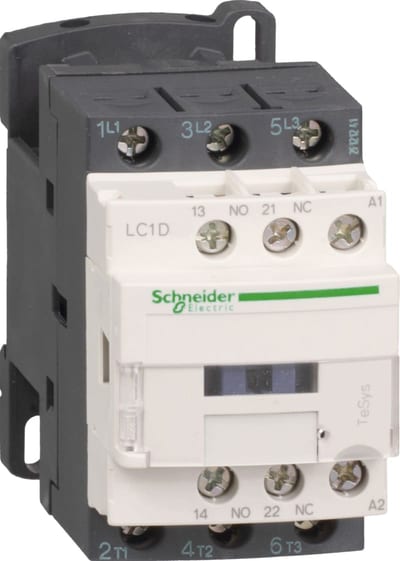

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 32A, 220V AC 50/60Hz coil, screw clamp terminals LC1D32M7
