Schneider Electric ZB5AW343 Harmony XB5 Push-Button Head — Ø22 mm, Red, flush, spring return, illuminated (LED), plastic bezel

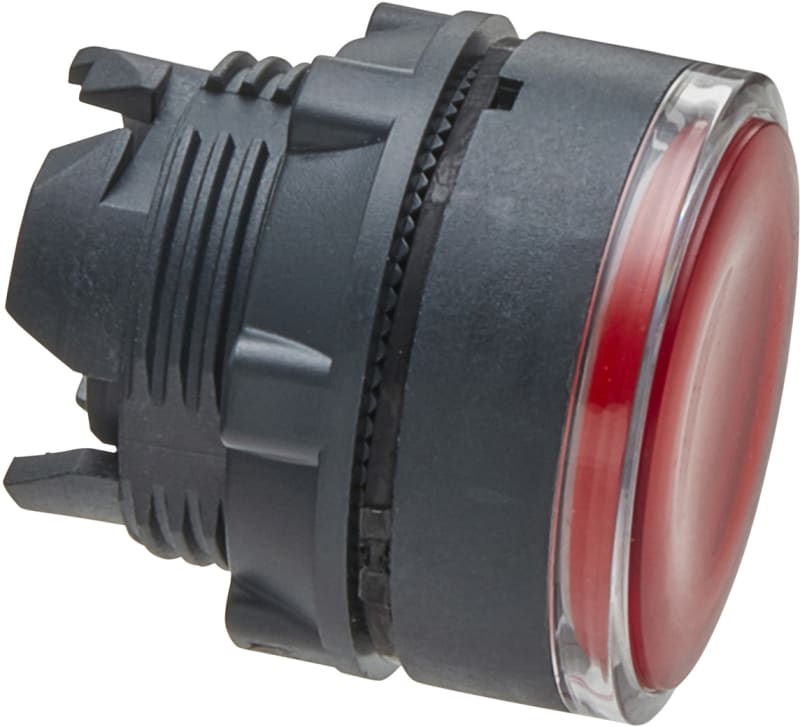

Schneider Electric ZB5AW343 is a Harmony XB5 Ø22 mm push-button operator head: red, flush actuator, spring-return (momentary) action, illuminated via an integral universal-LED light block (ordered separately), unmarked, with a chrome-plated plastic fixing collar. It mounts in a standard Ø22 mm panel cut-out and combines with Harmony ZBE contact blocks and light blocks (ordered separately) to form a complete control unit. Front face rated IP66; ambient −40 to +70 °C. Conforms to IEC/EN 60947-5-1. EAN 3389110909968.

Manufacturer part number (MPN)

ZB5AW343

EAN / GTIN

3389110909968

Product range

Harmony XB5

Type

push-button operator head (contact / light block ordered separately)

Mounting

Ø22 mm panel cut-out

Actuator

Flush

Operation

spring return (momentary)

Illumination

illuminated — universal LED (≤250 V) light block, plain lens

Colour

Red

Bezel material

chrome-plated plastic

Marking

unmarked

Degree of protection

IP66 (front face)

Ambient temperature

-40 to +70 °C

Mechanical durability

10 million operating cycles

Conforms to

IEC/EN 60947-5-1

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for illuminated push-button

Device short name

ZB5

Product compatibility

Universal LED

Mounting diameter

22 mm

Sale per indivisible quantity

1

Head type

Standard

Shape of signaling unit head

Round

Type of operator

spring return

Operator profile

Red flush, unmarked

Operator additional information

With plain lens

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

30 mm

Product weight

0.017 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Cap/operator or lens colour

Red

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED; MF1 for <2 contacts using single blocks in front mounting with integral LED; MR1 for <2 contacts using single blocks in rear mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67; IP69; IP69K

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 62262

Standards

UL 508; GB 14048.5; JIS C8201-5-1; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-1; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27

Country of origin

FR

Warranty (in months)

18

Standard

IEC 60947-5-1

HS Code

8538.90
