Bevegelsesvakt 360 IP55 WALL POLAR WHITE Blister
Pricing
Request a quote
We reply within 24 hours
Product Description

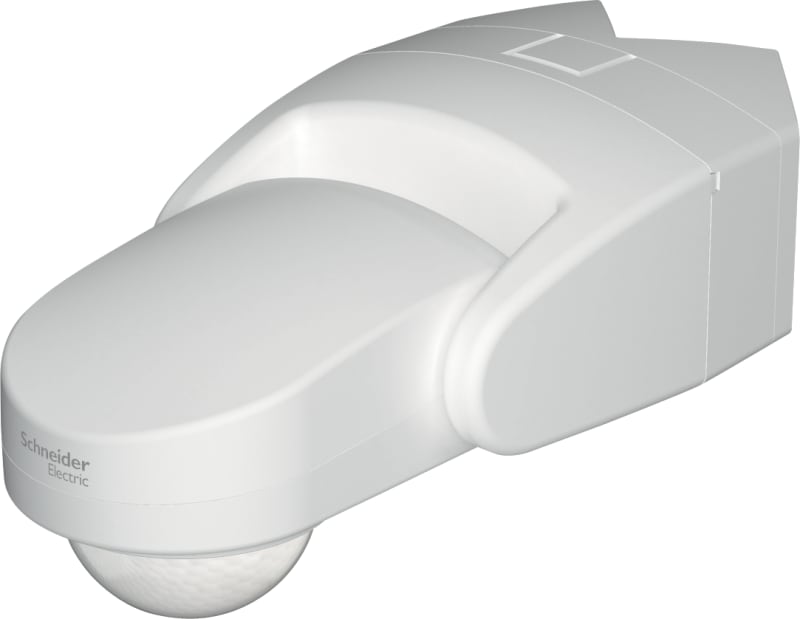

Schneider Electric CCTR1PA08 Bevegelsesvakt 360° IP55 WALL POLAR WHITE.
Technical Specifications
- Manufacturer part number (MPN)
- CCTR1PA08
- EAN / GTIN
- 3606480217036
- Sales unit
- pcs
- Package quantity
- 10 pcs
- IP rating
- IP55
- Nominal voltage
- 240 V
- Mounting method
- Surface mounted
- Colour
- White
- Model
- Movement sensor
- Halogen free
- Yes
- Surface protection
- Untreated
- Creep-under protection
- Yes
- Voltage type
- AC
- Frequency
- 50 Hz
- With remote control
- No
- Staircase light controller
- Yes
- Bridging switch
- No
- Suitable for wireless transmission
- No
- Material quality
- Thermoplastic
- Max. reach frontally
- 12 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Temperature
- -15–40 °C
- Max. starting current
- 10 A
- Material
- Plastic
- Ambient temperature
- -15–40 °C
- Response value sensitivity adjustable
- Yes
- Dim function with dimmer basic element
- No
- Response value luminosity
- 5–2000 lx
- Suitable for C-load
- Yes
- Remote operation
- No
- HVAC-control
- No
- Constant light control
- No
- Substation input
- No
- With signal unit
- No
- Teach-function for response value luminosity
- No
- Networkable
- No
- Forced switch off
- Yes
- Scan angle
- 360 °
- With connection cable
- No
- Degree of protection (IP)
- IP55
- With alarm function
- No
- Transparent
- No
- Animal zone
- No
- Surface finishing
- Glossy
- Detection angle horizontal
- 0–360 °
- Min. switch-on time
- 5 s
- Max. duty cycle
- 20 min
- Suitable for wall mounting
- Yes
- Response value luminosity adjustable
- Yes
- Optimum mounting height
- 2.5 m
- Pivoting range sensor, vertical
- 180 °
- With DALI interface
- No
- IFTTT support available
- No
- Forced switch on
- Yes
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Compatible with Casambi
- No
- Background monitoring
- No
- With acoustic sensor
- No
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Suitable for ceiling mounting
- Yes
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 0 mm
- Anti-bacterial treatment
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480217036
- SAP 1000419962
- Code 835015
