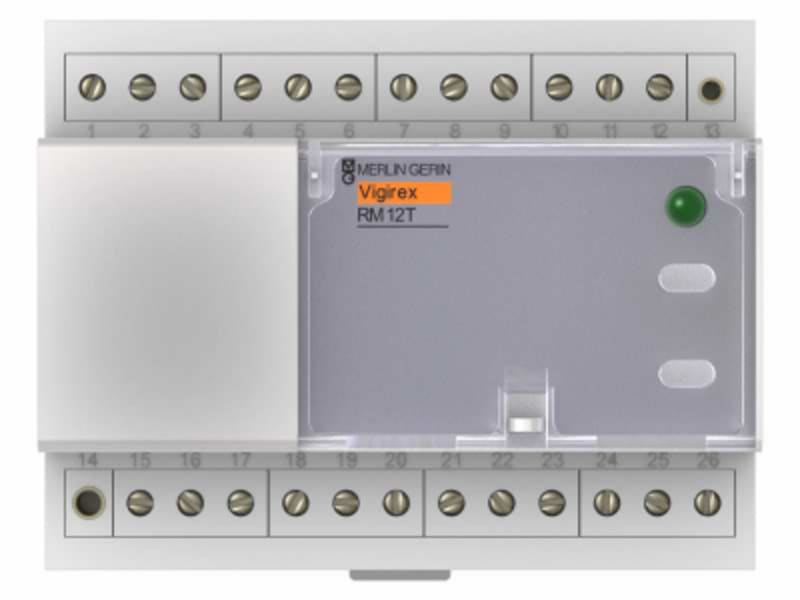

Schneider Electric 28566 Monitoring relay Vigirex RM12T - 30 MA..30 A - 220..240 V AC

Schneider Electric 28566 Monitoring relay Vigirex RM12T - 30 MA..30 A - 220..240 V AC is listed under Control & Automation / Relays & Timers. HS code: 9030.33.

Manufacturer part number (MPN)

28566 EAN / GTIN: 3303430285663 Sales unit: pcs Range: VigiPacT Device short name: RM12T Product or component type: Multiplexer Relay application: Monitoring relay Mounting support: DIN rail Current sensors compatibility: VigiPacT RMH monitoring relay [Ithe] conventional enclosed thermal current: 8 A minimum load: 10 mA at 12 V [Us] rated supply voltage: 220...240 V AC 50/60 Hz 70...110 % Power consumption in VA: 8 VA Test function: Local Monitoring: Electronics (continuous) ; Power supply (continuous) ; Relay/sensor link (continuous) ; Sensor/multiplexer RM12T and RM12T/RMH link (continuous) Signal contacts composition: 1 NO Type of measurement: Earth fault current internal measurement, range: 80...100 %, accuracy: +/- 10 % Communication service: Supervision via internal bus Connections - terminals: Auxiliary power supply: screw terminal cable(s) 0.2…2.5 mm² flexible 22 AWG...12 AWG; Auxiliary power supply: screw terminal cable(s) 0.2…2.5 mm² rigid 22 AWG...12 AWG; Auxiliary power supply: screw terminal cable(s) 0.25…2.5 mm² flexible with ferrule 22 AWG...12 AWG; Earth leakage monitor: screw terminal cable(s) 0.2…2.5 mm² flexible 22 AWG...12 AWG; Earth leakage monitor: screw terminal cable(s) 0.2…2.5 mm² rigid 22 AWG...12 AWG; Earth leakage monitor: screw terminal cable(s) 0.25…2.5 mm² flexible with ferrule 22 AWG...12 AWG; Sensor: screw terminal cable(s) 0.2…2.5 mm² flexible 22 AWG...12 AWG; Sensor: screw terminal cable(s) 0.2…2.5 mm² rigid 22 AWG...12 AWG; Sensor: screw terminal cable(s) 0.25…2.5 mm² flexible with ferrule 22 AWG...12 AWG Wire stripping length: Auxiliary power supply: 6 mm for bottom connection; Earth leakage monitor: 6 mm for bottom connection; Sensor: 6 mm for bottom connection; Sensor: 6 mm for top connection Tightening torque: Auxiliary power supply: 0.5 N.m bottom; Earth leakage monitor: 0.5 N.m bottom; Sensor: 0.5 N.m bottom; Sensor: 0.5 N.m top 9 mm pitches: 12 Standards: EN/IEC 60947-2 Annex M; EN/IEC 60755 Width: 106 mm Height: 81 mm Depth: 73.5 mm Product weight: 0.42 kg IP degree of protection: IP40 on front face: conforming to EN/IEC 60529; IP30 on side parts: conforming to EN/IEC 60529; IP20 on connection terminals: conforming to EN/IEC 60529 IK degree of protection: IK07 conforming to EN 50102 Mechanical robustness: Fire resistance conforming to IEC 60695-2-1; IK protection 2 joules: IK07 conforming to EN 50102; Vibrations 13.2...100 Hz: 0.7 g; Vibrations 2...13.2 Hz: +/- 1 mm Overvoltage category: IV Electromagnetic compatibility: Conducted and radiated emissions: , B, conforming to CISPR 11; Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6; Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2; High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5; Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4; Radiated susceptibility: , 3, conforming to IEC 61000-4-3 Relative humidity: 95 % at 55 °C Pollution degree: 3 conforming to IEC 60664-1 Ambient air temperature for operation: -25…55 °C Ambient air temperature for storage: -40…85 °C Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 9.5 cm Package 1 Width: 9.2 cm Package 1 Length: 11.5 cm Package 1 Weight: 471.0 g Unit Type of Package 2: S04 Number of Units in Package 2: 24 Package 2 Height: 30.0 cm Package 2 Width: 40.0 cm Package 2 Length: 60.0 cm Package 2 Weight: 12.07 kg Country of origin: FR Warranty (in months): 18 External power supply required: Yes Rated switch current: 8 A Voltage type (operating voltage): AC Type of electric connection: Screw connection Rated control supply voltage AC 50 Hz: 220–240 V Rated control supply voltage AC 60 Hz: 220–240 V Voltage type for actuating: AC With detachable clamps: No Function: For AC-current system Min. adjustable delay-on energization time: 0 s Max. permitted delay-on energization time: 5 s Indication of difference current: No Error registration possible: No

HS Code

9030.33

• EAN 3303430285663
• SAP 1000017408
• Code 8142503
