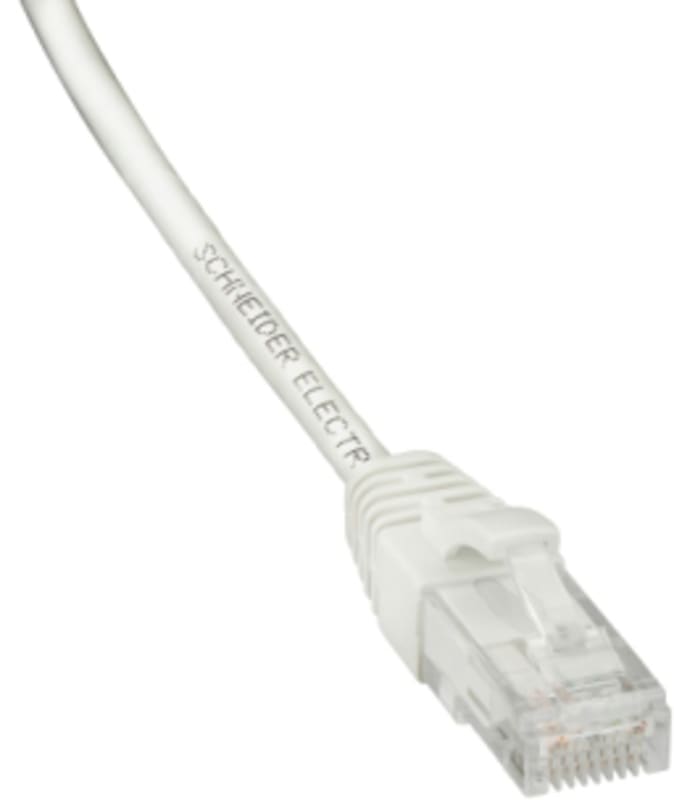

Schneider Electric Patch cord, Actassi, Category 6, U/UTP, LSZH, 3 m, white ACTPC6UULS30WE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ACTPC6UULS30WE Actassi patch cord Cat 6 U/UTP AWG28 halogen-free LSZH, 3 meter, white.
Technical Specifications
- Manufacturer part number (MPN)
- ACTPC6UULS30WE EAN / GTIN: 3606481052193 HS code: 8544.42 Sales unit: pcs Package quantity: 46 pcs range: Actassi product: Patch cord Device application: Communication Colour: White Cable shielding type: U/UTP Type of cable: 4 pair cables length (customizable value in configurator): 3 m Communication network category: 6 Transmission frequency: 250 MHz Contacts material: Phosphor bronze with 50 micro-inches gold over 100 micro-inches nickel AWG gauge: 28 AWG Maximum number of cord per bundle: 24 in cabinet for 4PPoE Type 3 (up to 60 W); 12 in cabinet for 4PPoE Type 4 (up to 90 W) Maximum patch cord cumulated length: 10 m with 84 m 2-point permanent link at 20 °C; 7 m with 90 m 2-point permanent link at 20 °C minimum number of matings: 750 cycles Cable outer diameter: 3.8 mm +/- 0.2 mm material: Copper: conductor; PE (polyethylene): wire insulation; Aluminium/polyester: foil; Tin plated copper: braid shield; PE (polyethylene): sheath Flame retardance: LSZH Standards: ISO/IEC 11081-2017 performance; TIA/EIA-568-C.2 performance; EN 50173-2018 performance; IEC 61935-2 performance Number of Units in Package 1: 1 Number of Units in Package 2: 46 Number of Units in Package 3: 368 Warranty (in months): 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606481052193
- SAP 1200537750
- Code 82699924
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric NSYCAG19LP Airing grille cut-out diameter 19mm IP45
Schneider Electric
Schneider Electric Actassi 19-C Evolution Fibre Optic Panel Sliding 19" 1U VDIG150991V2
Schneider Electric
Schneider Electric NSYS3D12830P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1200X800X300MM, IP66, IK10
Schneider Electric
Endeksel BUSBAR.4P pk à 10 pcs
A9XPE410
Schneider Electric
CYB-BK1 data cover, snap-on, angled, black
INS60703
Schneider Electric
Schneider Electric IPRD20 modular surge arrester - 3P + N - 350V A9L20600
Schneider Electric
VIGI IC60 4P 63A 300MA A
A9W24463
Schneider Electric
Schneider Electric NSYS3D10825P Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 1000X800X250MM, IP66, IK10
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy ACTPC6UULS30WE?
- ACTPC6UULS30WE can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is ACTPC6UULS30WE.
- What is the HS code for ACTPC6UULS30WE?
- The customs tariff (HS) code for ACTPC6UULS30WE is 8544.42.
- Who manufactures ACTPC6UULS30WE?
- ACTPC6UULS30WE is a Schneider Electric product in the Cables & Wiring range.
- Is a datasheet available for ACTPC6UULS30WE?
- Yes — the ACTPC6UULS30WE datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for ACTPC6UULS30WE?
- The minimum order quantity is 1.
- Is ACTPC6UULS30WE available?
- Yes — ACTPC6UULS30WE is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
