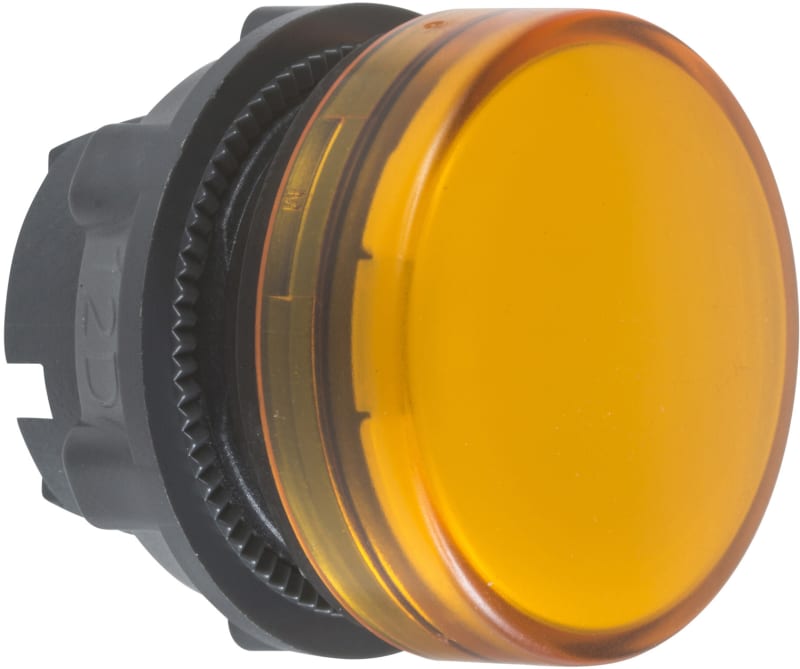

Pilot Light Head Yellow FOR BA9S

Schneider Electric ZB5AV05 Indicator lamp Yellow For BA9S.

Manufacturer part number (MPN)

ZB5AV05

EAN / GTIN

3389110908114

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5

Product or component type

Head for pilot light

Product compatibility

BA 9s

Device short name

ZB5

Bezel material

Dark grey plastic

Mounting diameter

22 mm

Head type

Standard

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Yellow

Operator additional information

With plain lens

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

31 mm

Product weight

0.018 kg

Station name

XALD 1...5 cut-outs; XALK 2...5 cut-outs

Electrical composition code

P3 in front mounting with BA 9s; P4 in front mounting with BA 9s and transformer; PF2 in front mounting with BA 9s

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

IK degree of protection

IK05 conforming to IEC 50102

Standards

IEC 60947-1; JIS C8201-5-1; IEC 60947-5-4; IEC 60947-5-5; UL 508; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.500 cm

Package 1 Width

3.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

16.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

300

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

5.215 kg

Unit Type of Package 3

P06

Number of Units in Package 3

2400

Package 3 Height

75.000 cm

Package 3 Width

80.000 cm

Package 3 Length

60.000 cm

Package 3 Weight

49.720 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour lens

Orange

Colour front ring

Black

Degree of protection (IP), front side

IP66

Width opening

29 mm

Height opening

29 mm

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Suitable for number of built-in signal lights

1

Type of lens

High

Degree of protection (NEMA)

4X, 13

HS Code

8531.90
