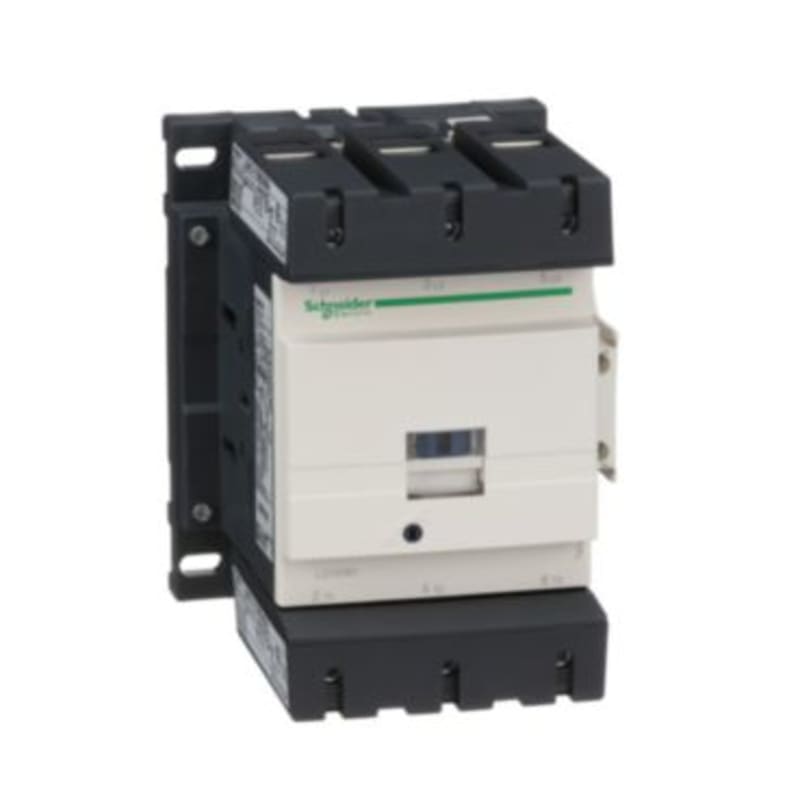

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 150A, 400V AC 50/60Hz coil, screw clamp terminals LC1D150V7

Schneider Electric LC1D150V7 — TeSys Deca contactor. AC-3 rated 3-pole contactor with modular auxiliary and coil options. LC1D: 3-pole contactors with AC-coil for motor drive and not-inductive load.

Manufacturer part number (MPN)

LC1D150V7 EAN / GTIN: 3389110480214 HS code: 8536.90 Sales unit: pcs Package quantity: 6 pcs Voltage: 400 V AC Number of poles: 3P Range: TeSys Range of product: TeSys Deca Product or component type: Contactor Device short name: LC1D Contactor application: Resistive load; Motor control Utilisation category: AC-1; AC-4; AC-3; AC-3e Poles description: 3P [Ue] rated operational voltage: Power circuit: <= 1000 V AC 25...400 Hz; Power circuit: <= 300 V DC [Ie] rated operational current: 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit; 150 A (at <60 °C) at <= 440 V AC AC-3 for power circuit; 150 A (at <60 °C) at <= 440 V AC AC-3e for power circuit [Uc] control circuit voltage: 400 V AC 50/60 Hz Motor power kW: 40 kW at 220...230 V AC 50/60 Hz (AC-3); 75 kW at 380...400 V AC 50/60 Hz (AC-3); 80 kW at 415...440 V AC 50/60 Hz (AC-3); 90 kW at 500 V AC 50/60 Hz (AC-3); 100 kW at 660...690 V AC 50/60 Hz (AC-3); 75 kW at 1000 V AC 50/60 Hz (AC-3); 22 kW at 400 V AC 50/60 Hz (AC-4); 40 kW at 220...230 V AC 50/60 Hz (AC-3e); 75 kW at 380...400 V AC 50/60 Hz (AC-3e); 80 kW at 415...440 V AC 50/60 Hz (AC-3e); 90 kW at 500 V AC 50/60 Hz (AC-3e); 100 kW at 660...690 V AC 50/60 Hz (AC-3e); 75 kW at 1000 V AC 50/60 Hz (AC-3e) Motor power hp: 40 hp at 200/208 V AC 50/60 Hz for 3 phases motors; 50 hp at 230/240 V AC 50/60 Hz for 3 phases motors; 100 hp at 460/480 V AC 50/60 Hz for 3 phases motors; 125 hp at 575/600 V AC 50/60 Hz for 3 phases motors Compatibility code: LC1D Pole contact composition: 3 NO Protective cover: With [Ith] conventional free air thermal current: 200 A (at 60 °C) for power circuit Irms rated making capacity: 140 A AC for signalling circuit conforming to IEC 60947-5-1; 250 A DC for signalling circuit conforming to IEC 60947-5-1; 1660 A at 440 V for power circuit conforming to IEC 60947 Rated breaking capacity: 1400 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current: 250 A 40 °C - 10 min for power circuit; 580 A 40 °C - 1 min for power circuit; 1200 A 40 °C - 10 s for power circuit; 1400 A 40 °C - 1 s for power circuit; 100 A - 1 s for signalling circuit; 120 A - 500 ms for signalling circuit; 140 A - 100 ms for signalling circuit Associated fuse rating: 10 A gG for signalling circuit conforming to IEC 60947-5-1; 315 A gG at <= 690 V coordination type 1 for power circuit; 250 A gG at <= 690 V coordination type 2 for power circuit Average impedance: 0.6 mOhm - Ith 200 A 50 Hz for power circuit Power dissipation per pole: 24 W AC-1; 13.5 W AC-3; 13.5 W AC-3e [Ui] rated insulation voltage: Power circuit: 600 V CSA certified; Power circuit: 600 V UL certified; Power circuit: 1000 V conforming to IEC 60947-4-1; Signalling circuit: 690 V conforming to IEC 60947-1; Signalling circuit: 600 V CSA certified; Signalling circuit: 600 V UL certified Overvoltage category: III Pollution degree: 3 [Uimp] rated impulse withstand voltage: 8 kV conforming to IEC 60947 Safety reliability level: B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1; B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Mechanical durability: 8 Mcycles Electrical durability: 0.85 Mcycles 150 A AC-3 at Ue <= 440 V; 1 Mcycles 200 A AC-1 at Ue <= 440 V; 0.85 Mcycles 150 A AC-3e at Ue <= 440 V Control circuit type: AC at 50/60 Hz standard Coil technology: Built-in bidirectional peak limiting diode suppressor Control circuit voltage limits: 0.3...0.5 Uc (-40…70 °C):drop-out AC 50/60 Hz; 0.8...1.15 Uc (-40…55 °C):operational AC 50/60 Hz; 1...1.15 Uc (55…70 °C):operational AC 50/60 Hz Inrush power in VA: 280…350 VA 60 Hz cos phi 0.9 (at 20 °C); 280…350 VA 50 Hz cos phi 0.9 (at 20 °C) Hold-in power consumption in VA: 2…18 VA 60 Hz cos phi 0.9 (at 20 °C); 2…18 VA 50 Hz cos phi 0.9 (at 20 °C) Heat dissipation: 3…4.5 W at 50/60 Hz Operating time: 20...35 ms closing; 40...75 ms opening Maximum operating rate: 1200 cyc/h at 60 °C Connections - terminals: Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end; Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end; Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end; Power circuit: connector 1 10…120 mm² - cable stiffness: flexible without cable end; Power circuit: connector 2 10…50 mm² - cable stiffness: flexible without cable end; Power circuit: connector 1 10…120 mm² - cable stiffness: flexible with cable end; Power circuit: connector 2 10…50 mm² - cable stiffness: flexible with cable end; Power circuit: connector 1 10…120 mm² - cable stiffness: solid without cable end; Power circuit: connector 2 10…50 mm² - cable stiffness: solid without cable end Tightening torque: Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2; Power circuit: 12 N.m - on connector hexagonal screw head 4 mm; Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 Auxiliary contact composition: 1 NO + 1 NC Auxiliary contacts type: type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1; type mirror contact 1 NC conforming to IEC 60947-4-1 Signalling circuit frequency: 25...400 Hz minimum switching voltage: 17 V for signalling circuit minimum switching current: 5 mA for signalling circuit Insulation resistance: > 10 MOhm for signalling circuit Non-overlap time: 1.5 ms on de-energisation between NC and NO contact; 1.5 ms on energisation between NC and NO contact Mounting support: Plate; Rail Standards: CSA C22.2 No 14; EN 60947-4-1; IEC 60947-4-1; IEC 60335-1:Clause 30.2; IEC 60335-2-40:Annex JJ; UL 60335-2-40:Annex JJ; UL 60947-4-1; CSA C22.2 No 60947-4-1; JIS C8201-4-1 Product certifications: UL; CCC; CSA; CE; UKCA; Marine; EAC IP degree of protection: IP20 front face conforming to IEC 60529 Protective treatment: TH conforming to IEC 60068-2-30 Climatic withstand: conforming to IACS E10 exposure to damp heat Permissible ambient air temperature around the device: -40…60 °C; 60…70 °C with derating Operating altitude: 0...3000 m Fire resistance: 850 °C conforming to IEC 60695-2-1 Flame retardance: V1 conforming to UL 94 Mechanical robustness: Vibrations contactor open (2 Gn, 5...300 Hz) ; Vibrations contactor closed (4 Gn, 5...300 Hz) ; Shocks contactor closed (15 Gn for 11 ms) ; Shocks contactor open (6 Gn for 11 ms) Height: 158 mm Width: 120 mm Depth: 136 mm Product weight: 2.5 kg Warranty (in months): 18

HS Code

8536.90

• EAN 3389110480214
• SAP 1000253495
• Code 81141574
