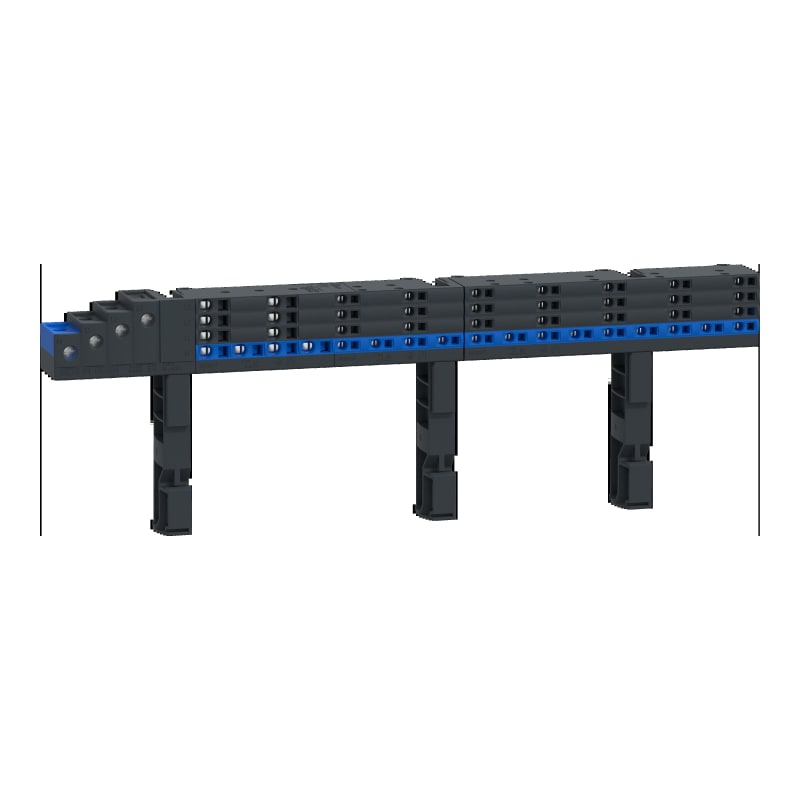

Multiclip Linergy FM4P 80A 24 modules
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04004 Multiclip Linergy FM4P 80A 24 modules.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04004
- EAN / GTIN
- 3606482131712
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Rated current
- 80 A
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Distribution block
- Product name
- Linergy FM
- Range compatibility
- PrismaSeT P PrismaSeT G enclosure
- IP degree of protection
- IPxx B
- Mounting support
- DIN rail; Plain backplate
- mounting mode
- -
- Installed device
- modular device
- Poles description
- 4P
- [Ue] rated operational voltage
- 440 V AC
- [Ui] rated insulation voltage
- 500 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ie] rated operational current
- 80 A
- [In] rated current
- 80 A at 40 °C
- [Ipk] rated peak withstand current
- 13 kA
- I²t on activation
- 2400000 A².s
- Connections - terminals
- Distribution: quick-connect terminal strips (phase) , 2 x 1…6 mm² (rigid) ; Distribution: quick-connect terminal strips (phase) , 7 x 1…4 mm² (rigid) ; Distribution: quick-connect terminal strips (phase) , 2 x 1…6 mm² (flexible) ; Distribution: quick-connect terminal strips (phase) , 7 x 1…4 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 4 x 1…6 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 13 x 1…4 mm² (rigid) ; Distribution: quick-connect terminal strips (neutral) , 4 x 1…6 mm² (flexible) ; Distribution: quick-connect terminal strips (neutral) , 13 x 1…4 mm² (flexible) ; Supply: tunnel type terminal25 mm²
- 9 mm pitches
- 48
- Total number of 18 mm modules
- 24
- Height
- 45 mm
- Width
- 63 mm
- Depth
- 395 mm
- Product weight
- 0.74 kg
- Colour
- Anthracite grey (RAL 7016)
- Standards
- IEC 61439-1, inside Prisma; IEC 61439-2, inside Prisma; IEC 60947-7-1
- Product certifications
- ASEFA
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 480
- Country of origin
- PL
- Warranty (in months)
- 18
- Core cross section
- 6 mm²
- With seal head
- No
- Number of poles
- 4
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606482131712
- SAP 1200697704
- Code 83582457
