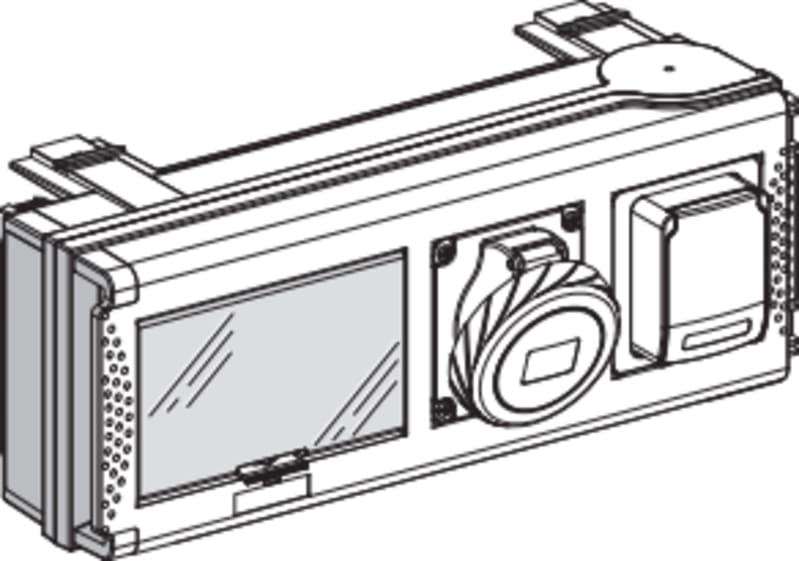

Schneider Electric Tap off unit, Canalis KS 100A to 1000A, 8 modules of 18mm, 32A, DIN rail, 3L+N+PE, 1 Schuko + 1 industrial power sockets KSB32CP15D

Schneider Electric KSB32CP15D Box With Outdoors+Ce 2X16/3X16+Pe.

Manufacturer part number (MPN)

KSB32CP15D

EAN / GTIN

3606480006012

Sales unit

pcs

Package quantity

29 pcs

Range of product

Canalis

Product name

KS

Product or component type

Tap-off unit

Product compatibility

Modular device

[Ie] rated operational current

32 A at 35 °C

Tap-off unit socket description

Domestic 10/16A 2P+T 230V

Tap-off unit 2nd socket description

Industrial 16A 3P+N+T 415V

Tap-off unit polarity

3L+N+PE

Provided equipment

Blanking plate

Colour

White (RAL 9001)

Device application

Power socket distribution; Low power distribution

[Ue] rated operational voltage

230...690 V depending on protective device

[Uimp] rated impulse withstand voltage

6.8 kV

[Ui] rated insulation voltage

400 V depending on protective device; 500 V depending on protective device; 690 V depending on protective device

Network frequency

50/60 Hz

Protection type

Without protection

Tap-off unit disconnection mode

By drawing out

Tap-off unit connector type

With phase selection

Standards

IEC 60439-2; IEC 61439-6

Body material

Plastic

number of 18mm modules

8

Width

437.5 mm

Depth

108 mm

Height

165 mm

Product weight

3 kg

Earthing system

TT - busbar trunking; TN-S - busbar trunking; TN-C - busbar trunking; TT - tap-off unit; TN-S - tap-off unit

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

20.300 cm

Package 1 Width

17.600 cm

Package 1 Length

43.500 cm

Package 1 Weight

1.946 kg

Unit Type of Package 2

P12

Number of Units in Package 2

29

Package 2 Height

195.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

71.370 kg

Warranty (in months)

18

RAL-number

9001

With locking

No

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

5

Length

437.5 mm

Degree of protection (IP)

IP55

Number of other socket outlets

1

Branch off type

Socket outlet

Rated voltage AC 50 Hz

230–690 V

Type of socket outlets

Socket outlet w/protective contact CEE 7/3 (F) 16 A + CEE socket outlet 5p 16 A

Rated current AC 50 Hz

32 A

Country of origin

Italy

HS Code

8536.90

• EAN 3606480006012
• SAP 1200721829
• Code 83845677
