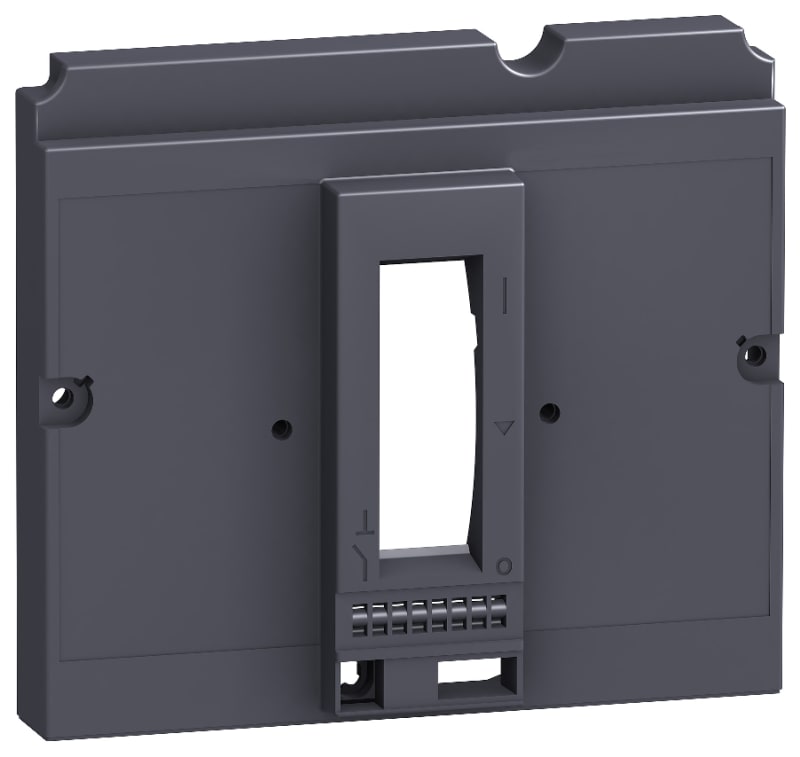

Schneider Electric LV429528 — NS Retrofit Escutcheon, small cut-out, NSX100/160/250
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429528 is a front-panel escutcheon that adapts a Compact NS switchboard cut-out to a ComPacT NSX100/160/250 device (small cut-out variant). Conforms to IEC 60947-2 as a circuit-breaker accessory. RoHS 2011/65/EU and REACH compliant; CE marked.
Technical Specifications
- Type
- front cover / escutcheon (spare part)
- Compatible devices
- ComPacT NSX100/160/250 (and EasyPact CVS 100/160/250)
- Function
- front-panel escutcheon that adapts a Compact NS switchboard cut-out to a ComPacT NSX100/160/250 device (small cut-out variant)
- Standard
- IEC 60947-2 (circuit-breaker accessory)
- Compliance
- RoHS 2011/65/EU, REACH; CE marked
- Manufacturer part number (MPN)
- LV429528
- EAN / GTIN
- 3606480021794
- HS code
- 8538.90
- Product or component type
- Escutcheon
- Accessory / separate part category
- Insulation accessory
- Range compatibility
- ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPact Compact NSX100 DC; ComPact Compact NSX160 DC; ComPact Compact NSX250 DC
- Cut-out dimensions
- 131 x 154 mm
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- Standard
- IEC 60947-2
- HS Code
- 8538.90
Cross References
- EAN 3606480021794
- SAP 1000092356
- Code 8859782
Product Documentation
More from Schneider Electric
Schneider Electric
Front plate NSX630 Horizontal PrismaSeT G
LVS03296
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3E, <=440V, 150A, 400V AC 50/60Hz coil, screw clamp terminals LC1D150V7
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX500 DC PV, 10KA/1000VDC, 4 poles, TM-DC PV trip unit 500A C63F4TM500D1
Schneider Electric

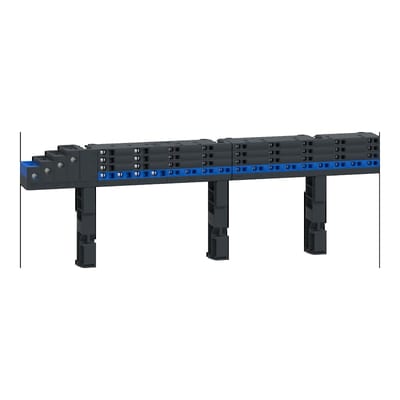

Multiclip Linergy FM4P 80A 24 modules
LVS04004
Schneider Electric

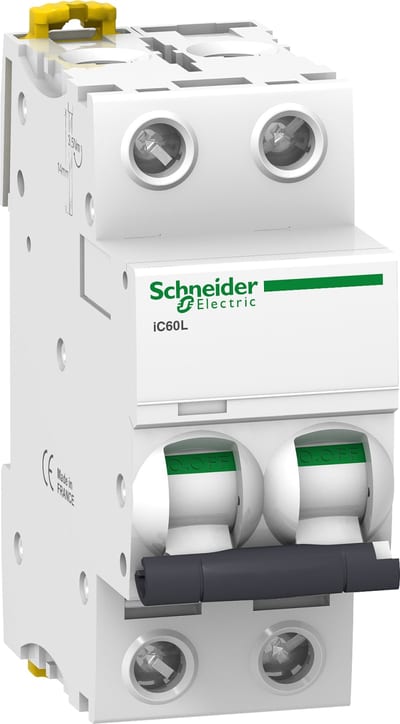

Schneider Electric A9F92216 ACTI9 IC60L Miniature Circuit Breaker 2P 16 A, Curve Z
Schneider Electric

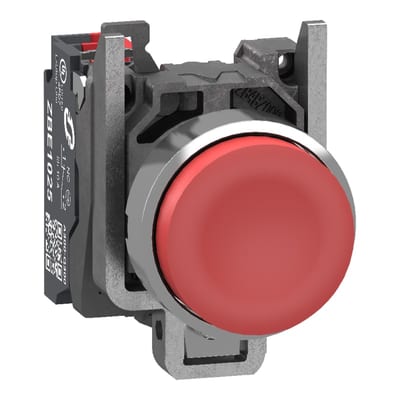

Schneider Electric Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1 NC, compact push in terminals XB4BL425
Schneider Electric

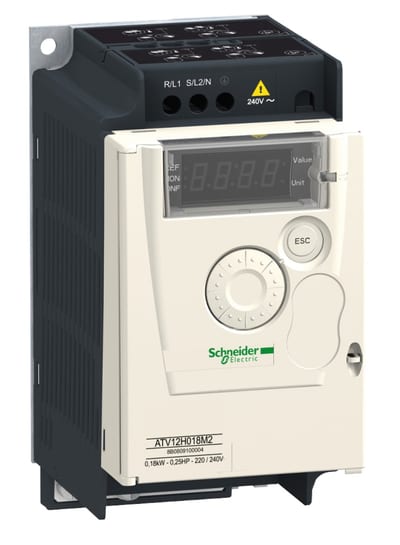

ATV12 2.2kW without heatsink 3-Phase
ATV12PU22M3
Schneider Electric

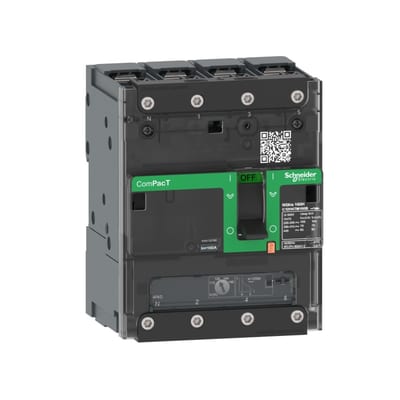

Schneider Electric Circuit breaker, ComPacT NSXm 63B, 25KA/415VAC, 4 poles 4D (neutral fully protected), TMD trip unit 32A, lugs/busbars C11B4TM032B
