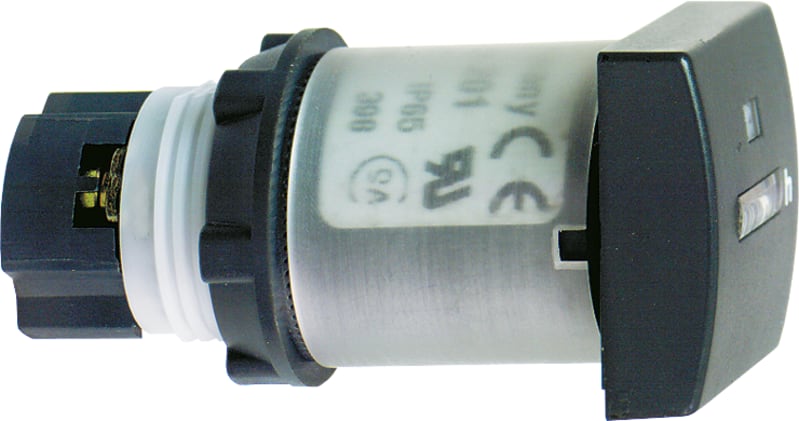

Schneider Electric Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 120V AC XB5DSG
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XB5DSG — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Timeteller 0-9999 9 120V 60HZ.
Technical Specifications
- Manufacturer part number (MPN)
- XB5DSG
- EAN / GTIN
- 3389110102635
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 120 V
- Frequency
- 60 Hz
- Range of product
- Harmony XB5
- Bezel material
- Dark grey plastic
- Product or component type
- Hour counter
- Mounting diameter
- 22 mm
- Reset
- Without
- [Us] rated supply voltage
- 120 V +/- 10 %
- Display digits
- 5
- Current consumption
- 8 mA
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- mounting mode
- Flush-mounted
- Mounting support
- Panel mounting
- Height
- 30 mm
- Width
- 30 mm
- Depth
- 60 mm
- Device presentation
- Monolithic product
- Product weight
- 0.045 kg
- Protective treatment
- TH
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Electrical shock protection class
- Class II conforming to IEC 60536
- IP degree of protection
- IP65 conforming to IEC 60529
- Enclosure Type
- UL type 13
- Standards
- IEC 60947-5-1
- Product certifications
- CE; UL
- Warranty (in months)
- 18
- Frequency input voltage
- 60 Hz
- Voltage type
- AC
- Model
- Front mounting
- Width in number of modular spacings
- 30
- Number of digits
- 5
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9029.10
Cross References
- EAN 3389110102635
- SAP 1000068772
- Code 8763490
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Smart-UPS X, Line Interactive, 3KVA, Rack/tower convertible 4U, 208V-230V, 8X C13+2X C19 IEC, Network card, Extended runtime SMX3000HVNC
Schneider Electric
Jf.relay RH197M 24-130VDC/48VAC
56515
Schneider Electric
Schneider Electric Mureva BOX - junction box - knock-out 6XM16/20 - 105X65X55 mm ENN05083
Schneider Electric
Schneider Electric high speed counter module M340 - 2 channels BMXEHC0200
Schneider Electric
Schneider Electric Interface plug-in relay, 5 A, 2 CO, clear cover, 24 V AC RXG25B7
Schneider Electric

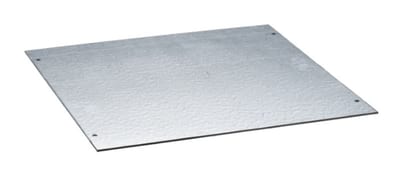

Schneider Electric UFB-MP Blind Mounting Plate for UFB-IG Floor Box
5197780
Schneider Electric

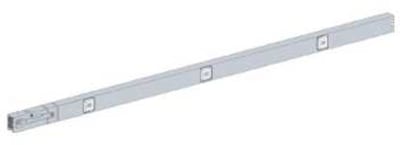

Schneider Electric Straight length, Canalis KBA, 25 A, 1 circuit 3L+N+PE, remote control circuit, 3 tap-off units, 3 m, white KBA25ED4303TW
Schneider Electric

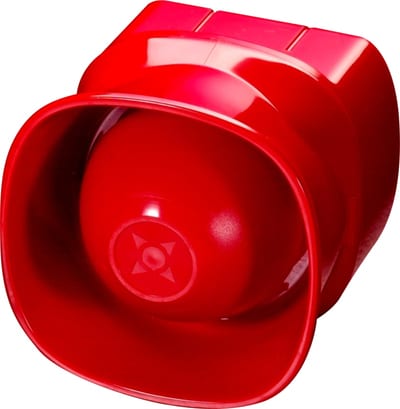

Schneider Electric ESI-50 Loop-Powered Sounder 100 dB Red IP65
