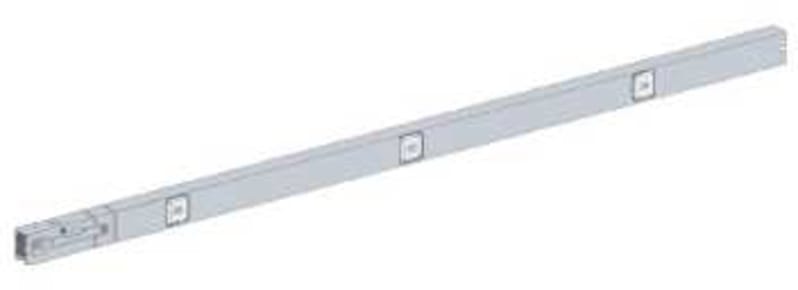

Schneider Electric Straight length, Canalis KBA, 25 A, 1 circuit 3L+N+PE, remote control circuit, 3 tap-off units, 3 m, white KBA25ED4303TW

Schneider Electric KBA25ED4303TW Rail 25A 3m 4pol 3UT BusHvit.

Manufacturer part number (MPN)

KBA25ED4303TW

EAN / GTIN

3606480000157

Sales unit

pcs

Package quantity

6 pcs

Rated current

25 A

Range of product

Canalis

Device short name

KBA

Offer type

Control system

Product or component type

Straight length

Busbar description

Distribution length

Device application

Lighting; Power socket distribution

[Ie] rated operational current

25 A at 35 °C

[Ue] rated operational voltage

230...400 V

Network frequency

50/60 Hz

Busbar trunking polarity

3L + N + PE

Number of circuits

1

Number of tap-off outlets

3

Control type

Communicating

Communication port protocol

DALI; KNX

mounting mode

By clips

[Uimp] rated impulse withstand voltage

4 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

0.44 kA

[Ipk] rated peak withstand current

4.4 kA

Thermal stress limit

195 kA².s

Maximum radiated magnetic field

2 pT

THDI

0…15 % 25 A; 15…33 % 20 A; 33…100 % 16 A

Maximum voltage drop

<0.72 V with power factor = 1 at 50 Hz with 1A for 100 m long; <0.67 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.61 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.54 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Standards

EN/IEC 61439-6; EN/IEC 61439-1

Width

30 mm

Height

46 mm

Length

3 m

Colour

White (RAL 9003)

Product weight

3.1 kg

IP degree of protection

IP55 conforming to EN/IEC 60529

IK degree of protection

IK06 conforming to EN/IEC 62262

Ambient air temperature for operation

0…35 °C (100 % of In); 35…40 °C (96 % of In); 40…45 °C (93 % of In); 45…50 °C (89 % of In); 50…55 °C (85 % of In)

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

144

Country of origin

FR

Warranty (in months)

18

Model

Single

Flexible

No

RAL-number

9003

Number of conductors (without earthing)

4

Number of poles

4

Degree of protection (IP)

IP55

Number of tap-off units

3

Rated current AC 50 Hz

25 A

HS Code

8538.90

• EAN 3606480000157
• SAP 1000285124
• Code 831610
