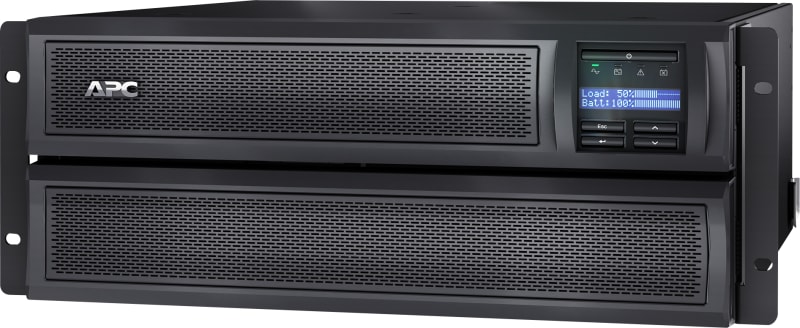

Schneider Electric APC Smart-UPS X, Line Interactive, 3KVA, Rack/tower convertible 4U, 208V-230V, 8X C13+2X C19 IEC, Network card, Extended runtime SMX3000HVNC

Schneider Electric SMX3000HVNC APC by Schneider Electric.

Manufacturer part number (MPN)

SMX3000HVNC

EAN / GTIN

0731304292623

Sales unit

pcs

Presentation

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Main input voltage

208 V AC; 230 V AC

Other input voltage

220 V; 240 V

Input connection

BS 1363 British; IEC 60320 C20; CEE 7/7

Efficiency at full load

140...280 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing

Output voltage

208 V AC 1 phase; 230 V AC 1 phase

Other output voltage

208 V; 220 V; 240 V

Rated power in W

2700 W

Rated power in VA

3000 VA

Output connection

8 IEC 60320 C13; 2 IEC Jumpers; 2 IEC 60320 C19

Harmonic distortion

Less than 5 %

Maximum configurable power in VA

3000 VA

Maximum configurable power in W

2700 W

Transfer time

6 ms typical : 10 ms maximum

UPS topology

Line interactive

Waveform type

Its wave

Output frequency

50/60 Hz +/- 3 Hz sync to mains

Replacement battery

APCRBC143

Run Time

View Runtime Graph

Efficiency

View Efficiency Graph

Battery type

Lead-acid internal included

Control panel

Multifunction LCD status and control console

Emergency power off

Yes

Free slot

0

Preinstalled device

Network management card 3 with environmental monitoring

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

UPS connectivity

Serial port; USB port; Pre-installed network management card 3

Surge energy rating

645 J

Noise filtering

Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449

Number of rack unit

4U

Cable length

2.4 m

Number of cables

1

Color

Black

Height

432 mm

Width

178 mm

Depth

483 mm

Product weight

38.64 kg

Mounting location

Front

Mounting preference

Lower

Mounting mode

Rack-mounted

Two post mountable

1

USB compatible

Yes

Provided equipment

CD with software; Rack mounting support rails; Smart UPS signalling RS-232 cable; Temperature probe; User manual; Web/SNMP management card

Number of power modules

0

Number of power module filled slots

0

Number of power module free slots

0

Additional specification

Network card pre-installed

Redundant

No

Range of product

Smart-UPS

Product or component type

Uninterruptible power supply (UPS)

Product certification

C-Tick; CE; CSA; EAC; GOST; IRAM; VDE; UK PSTI

Standard

EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018

Ambient air temperature for operation

0…40 °C

Ambient air temperature for storage

-15…45 °C

Storage altitude

0…15240 m

Relative humidity

0…95 %

Storage relative humidity

0…95 %

Acoustic level

55 dBA

Heat dissipation

184 Btu/h

Operating altitude

0...10000 ft

Extendable runtime

1

Included battery module

0

Empty battery slot

0

Typical recharge time

3 h

RBC quantity

1

Battery life

3…5 year(s)

Battery charging power

245 W rated

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

33 cm

Package 1 Width

58.6 cm

Package 1 Length

63.3 cm

Package 1 Weight

47.73 kg

Pallet unit layers

2

Pallet layers

4

Country of origin

PH

Warranty (in months)

36 UPS|24 Battery

HS Code

8504.40
