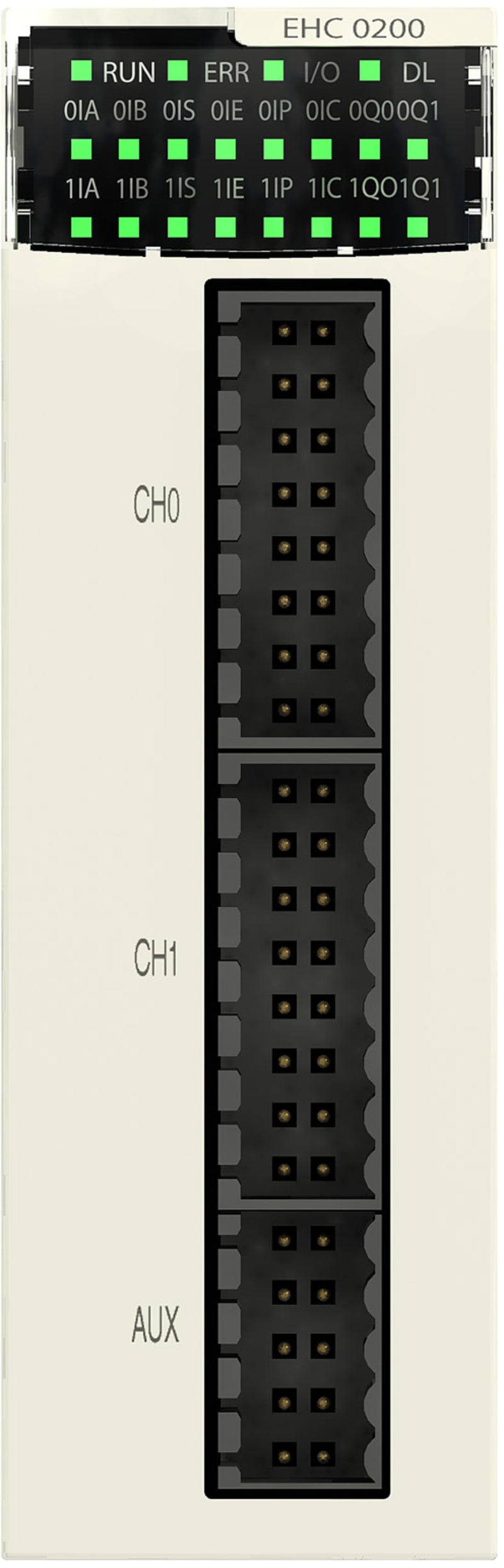

Schneider Electric high speed counter module M340 - 2 channels BMXEHC0200

Schneider Electric BMXEHC0200 M340 hurtigteller, 2 channels, up to 60kHz.

Manufacturer part number (MPN)

BMXEHC0200

EAN / GTIN

3595863910148

Sales unit

pcs

Package quantity

15 pcs

Range of product

Modicon M340 automation platform

Product or component type

Counter module

Number of channels

2

Maximum counting frequency

60000 Hz

Number of inputs

6

Input compatibility

19.2…30 V 2-wire/3-wire proximity sensor; incremental encoder with push-pull outputs, 10...30 V totem pole

input voltage

24 V DC type 3

Number of outputs

2

output voltage

24 V DC

Counter functions

Loop (modulo) counting; Width modulation; Down counting; Measure time periods; Ratio count; Count events; 32-bit counter counting; Frequency meter

Cycle time

1 ms

Isolation voltage

1500 V for 60 s

Input type

3 auxiliary input; 3 high speed

Input voltage limits

24 V DC

Input current

2 mA at 11 V

Voltage state 1 guaranteed

10...30 V DC

Current state 1 guaranteed

> 2 mA (for U >= 11V)

Voltage state 0 guaranteed

< 5 V DC

Current state 0 guaranteed

< 1.5 mA

Discrete output logic

Positive or negative configurable

Maximum output current

2 A per module; 0.5 A per output

Output voltage limits

19.2...30 V

Maximum load current

1 A per module; 0.5 A per output

Maximum leakage current

0.1 mA at state 0

Maximum voltage drop

<3 V at state 1

Output overload protection

Integrated

Output short-circuit protection

1.5 A integrated

Overlap time

0.2 ms

Electrical connection

1 connector with 10 pins for wiring auxiliary input and sensor power supply; 1 connector with 16 pins for wiring the sensors of counter 0; 1 connector with 16 pins for wiring the sensors of counter 1

Current consumption

200 mA at 3.3 V DC bus; 40 mA at 24 V DC rack; 80 mA at 24 V DC sensor

Module format

Standard

Product weight

0.112 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

10…95 % without condensation

IP degree of protection

IP20

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility

Protective treatment

Standard version

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Number of functions

6

Redundancy

No

Suitable for counting

Yes

Suitable for weighing

No

Suitable for temperature control

No

Suitable for welding control

No

Suitable for pressure control

No

Suitable for NC

No

Suitable for electronic positioning

Yes

Suitable for CNC

No

Suitable for SSI

No

Suitable for incremental data detection

Yes

Suitable for detection absolute value

No

Suitable for flux controller

Yes

Suitable for flux measurement

Yes

Suitable for path controller

Yes

Suitable for cam controller

No

Suitable for multi-axis control

Yes

Suitable for single-axis controller

Yes

Suitable for multi-axis positioning

Yes

Suitable for single-axis positioning

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Width

32 mm

Height

103.76 mm

Depth

92 mm

HS Code

8538.90
