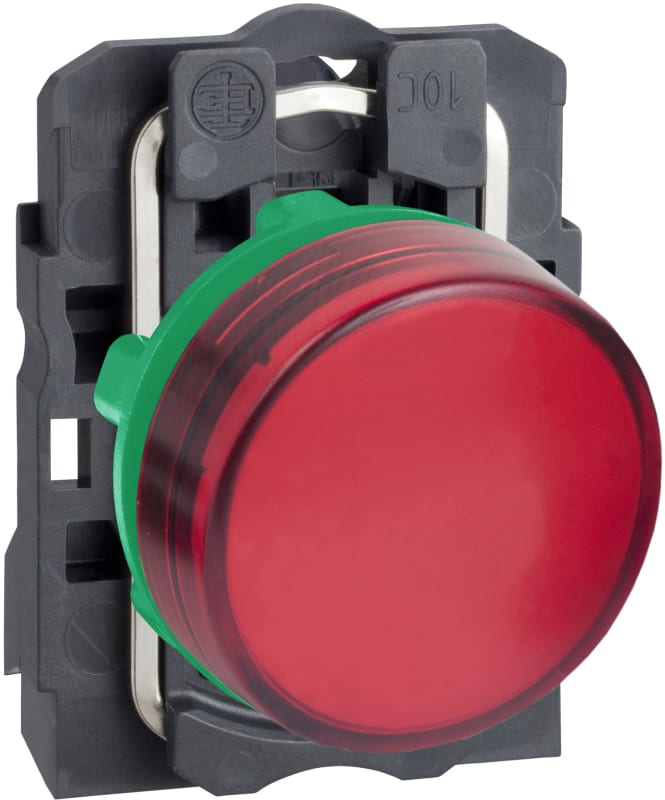

Schneider Electric Pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 230...240V AC XB5AVM4

Schneider Electric XB5AVM4 — Harmony XB4 22 mm command actuator. Metal or plastic 22 mm cutout push-button, selector or indicator. Indicator lamp Red 230VAC LED.

Manufacturer part number (MPN)

XB5AVM4

EAN / GTIN

3389110903867

HS code

8539.52

Sales unit

pcs

Package quantity

5 pcs

Voltage

230/240 V

Range of product

Harmony XB5

Product or component type

Pilot light

Device short name

XB5

Bezel material

Dark grey plastic

Fixing collar material

Plastic

Head type

Standard

Mounting diameter

22.5 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Cap/operator or lens colour

Red

Operator additional information

With plain lens

Light source

Universal LED

Bulb base

Integral LED

Light source colour

Red

[Us] rated supply voltage

230...240 V AC at 50/60 Hz

Device presentation

Complete product

Height

42 mm

Width

30 mm

Depth

54 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.038 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Connections - terminals

Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

GCR BRIDGE

XB5AVCUST05

Compatibility code

XB5

Supply voltage limits

195…264 V AC

Current consumption

14 mA

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class II conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653

Enclosure Type

UL type 4X/13

IK degree of protection

IK05 conforming to IEC 50102

Standards

CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-4; UL 508; JIS C8201-1

Product certifications

CSA; UL listed

Vibration resistance

5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 30 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Electromagnetic compatibility

Electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2; Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2; Electromagnetic emission class B conforming to IEC 55011

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Warranty (in months)

18

HS Code

8539.52
