Prefab. Connection Horizontal NSX630/LGY 4P P
Pricing
Request a quote
We reply within 24 hours
Product Description

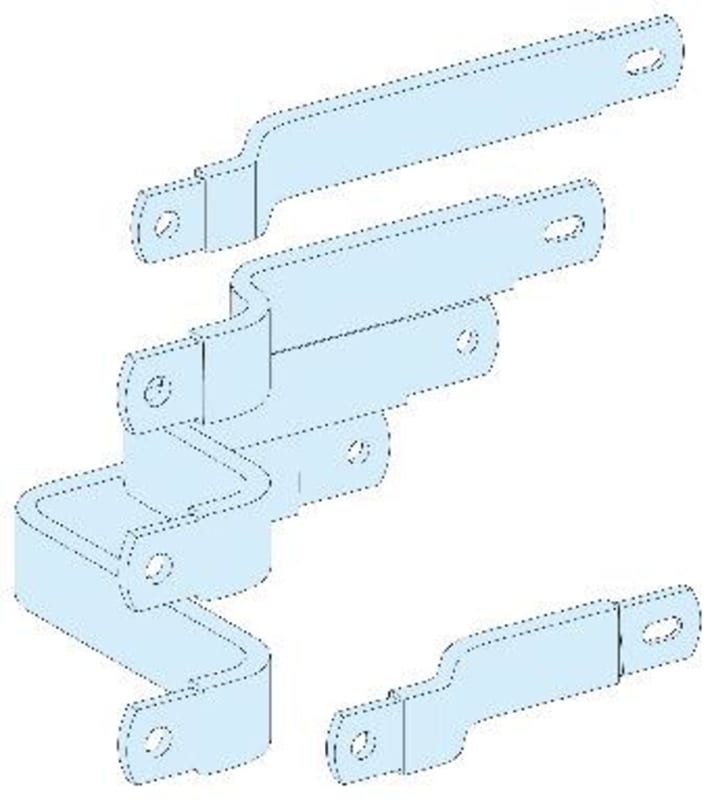

Schneider Electric LVS04454 — Connection for horizontal fixed NSX630 with toggle, 4P 630A, on Linergy LGY.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04454
- EAN / GTIN
- 3606481867643
- Sales unit
- pcs
- Number of poles
- 4P
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Connection
- product name
- PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Connection accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- Cubicle-device connection
- Linergy busbar
- Poles description
- 4P
- installation description
- Cubicle - width 650 mm
- Installed device
- ComPact: fixed NSX400 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 without earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX400 with earth leakage protection - control: toggle horizontal installation; ComPact: fixed NSX630 with earth leakage protection - control: toggle horizontal installation
- [Ie] rated operational current
- 630 A
- Busbar cross section
- 32 x 6 mm
- Product weight
- 3.5 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 without fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 without fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX400 with fixed toggle horizontal 4P 1 direct 5; 650 mm 400 mm PrismaSeT P cubicle ComPact NSX630 with fixed toggle horizontal 4P 1 direct 5
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.500 cm
- Package 1 Width
- 27.500 cm
- Package 1 Length
- 30.000 cm
- Package 1 Weight
- 3.360 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 60
- Package 2 Height
- 35.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 215.600 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 650 mm
- Depth
- 400 mm
- With cover
- No
- Max. rated current
- 630 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481867643
- SAP 1200547119
- Code 82879126
Product Documentation
More from Schneider Electric
Schneider Electric
CYB-PS Masteroutlet Triple PC/ABS Aluminium
5941505
Schneider Electric
Robust recessed centre plate 2XS-ONE white
WDE000918
Schneider Electric

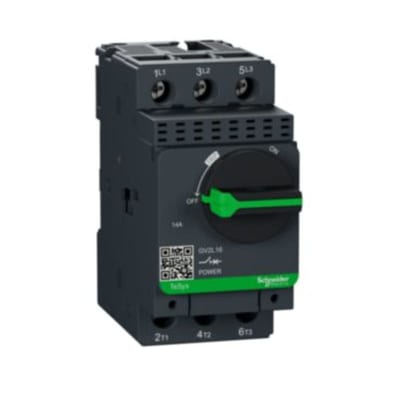

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 14 A, magnetic, rotary handle, screw clamp terminals GV2L16
Schneider Electric
Schneider Electric PrismaSeT Form 2 Side Barrier for Vertical Busbar
LVS04922
Schneider Electric

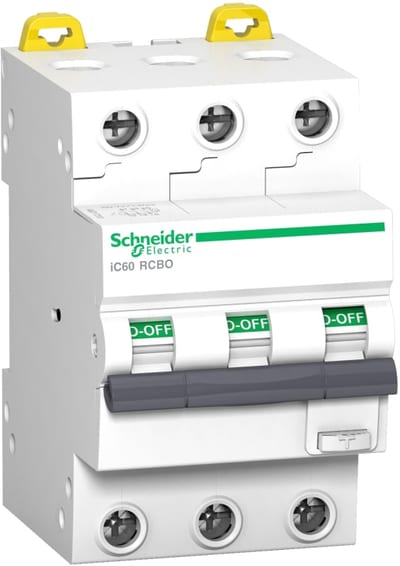

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 3P, 32A, C curve, 6000A/6KA, A type, 30MA A9D67332
Schneider Electric
Schneider Electric TeSys Vario - emergency stop switch disconnector - 20 A - on door VCF01
Schneider Electric

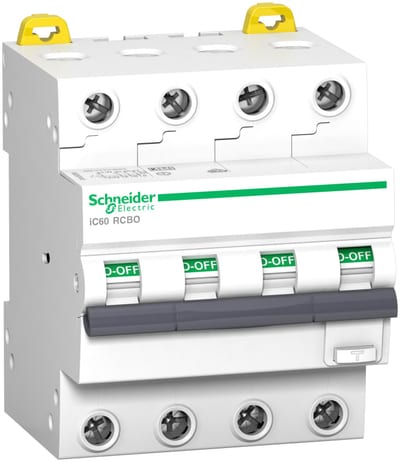

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 4P, 16A, B curve, 6000A/6KA, A type, 30MA A9D87416
Schneider Electric

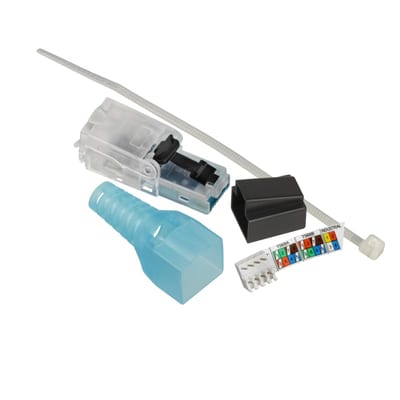

Schneider Electric Field termination plug, Actassi, RJ45, UTP, CAT6A ACTPG6ATLU001
