Easy UPS SRVS Networkskort NMC

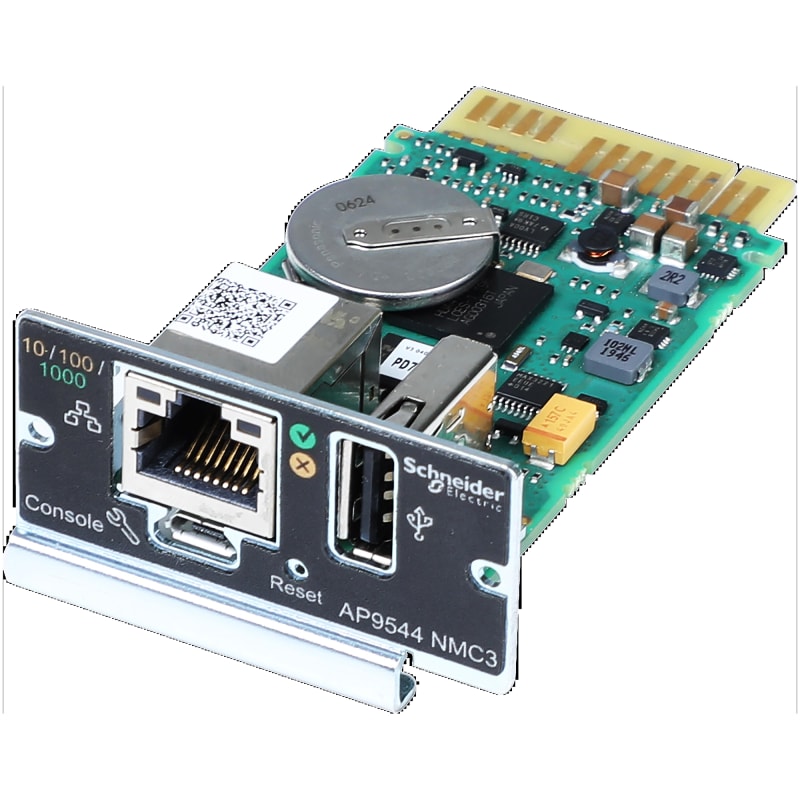

Schneider Electric AP9544 — Network Management Card 3 (NMC3) for Easy UPS On-Line, 1-Phase, secure remote UPS monitoring and management.

Manufacturer part number (MPN)

AP9544

EAN / GTIN

0731304440161

Sales unit

pcs

Presentation

The Network Management Card for Easy UPS On-Line (AP9544) enables secure remote monitoring and control of one Easy UPS Online through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. A 12-month Secure NMC Subscription, that allows the customer to access future firmware updates, is included with the purchase of the card*. Upon expiration of the provided Secure NMC Subscription the purchase of a new Secure NMC Subscription is required to access future firmware updates. *The NMC Firmware must be V2.5 or later. Find the latest Firmware in the Software and Firmware section below.​​​​​​​

Range of product

Network Management Cards

Range compatibility

Easy UPS On-Line; Easy UPS 1 Ph On-Line

Product or component type

Device monitoring and management

Provided equipment

Micro-USB cable; Installation manual

Number of input phases

1

Standards

CISPR 32; VCCI class A; ICES-003; EN 55024; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-4-8; EN 61000-6-2; EN/IEC 62040-2

Product weight

0.05 kg

Width

5.2 cm

Height

4.4 cm

Depth

8.0 cm

Product certifications

FCC Class A; AS/NZS; UK PSTI

Storage Relative Humidity

0…95 %

Relative humidity

0…95 %

Ambient air temperature for storage

-15…65 °C

Ambient air temperature for operation

-5…45 °C

Storage altitude

0…15240 m

Operating altitude

0...10000 ft

Communication network type

10/100/1000BASE-T

Authentication

Radius

Communication port protocol

HTTP over secure sockets; Layer (HTTPS); SSH; FTP; HTTP; SNMP; DHCP; BOOTP (Bootstrap Protocol); TCP/IP

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.600 cm

Package 1 Width

16.500 cm

Package 1 Length

23.000 cm

Package 1 Weight

284.000 g

Unit Type of Package 2

S06

Number of Units in Package 2

44

Package 2 Height

68.000 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

21.000 kg

Country of origin

PH

Warranty (in months)

24

HS Code

8504.40

• EAN 0731304440161
• SAP 1200659965
• Code 83104909
