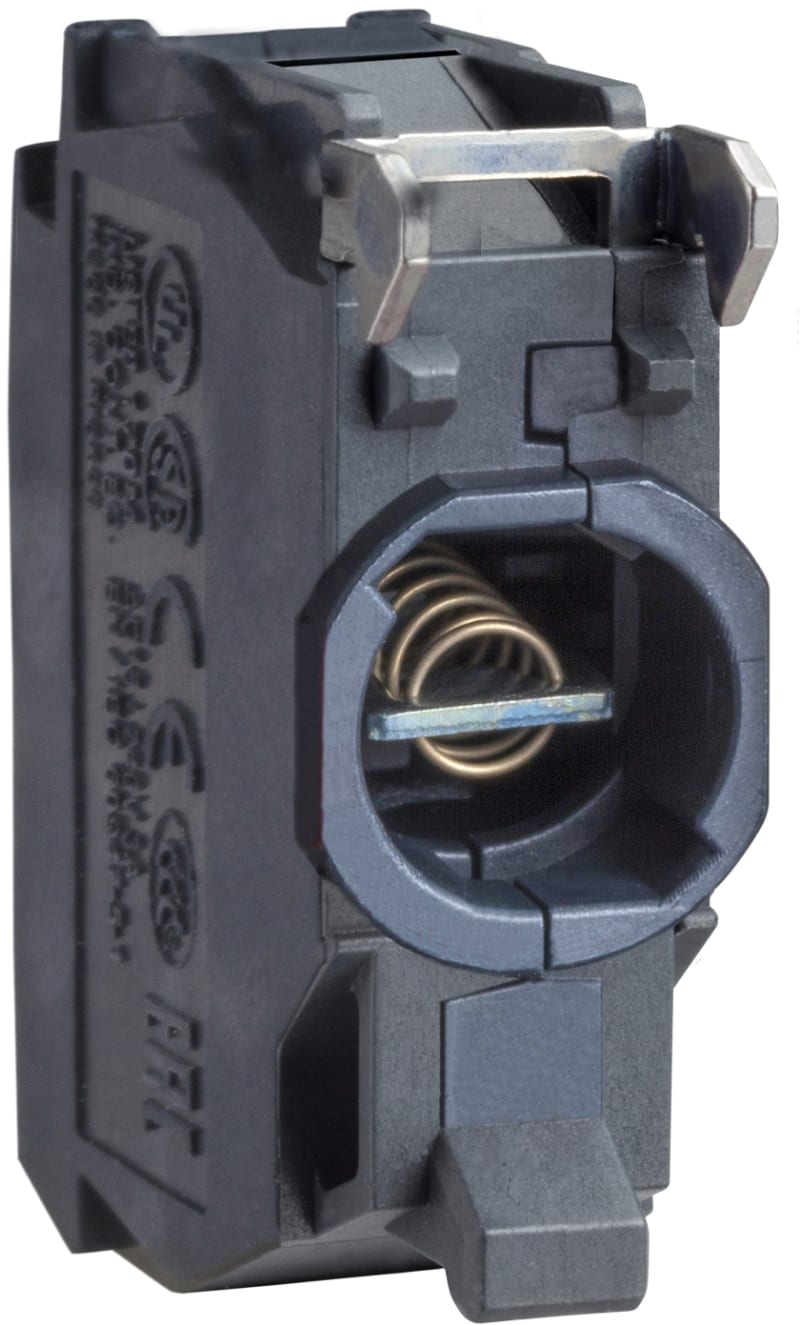

Pilot Light Holder <250V BA9S

Schneider Electric ZBV6 Signallamp holder <250V BA9S.

Manufacturer part number (MPN)

ZBV6

EAN / GTIN

3389110089608

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB5; Harmony XB4

Product or component type

Light block

Device short name

ZBV

Sale per indivisible quantity

5

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Signalling type

Steady

Light source

Bulb not included

Bulb base

BA 9s

Light block supply

Direct

[Us] rated supply voltage

<= 250 V

Product weight

0.016 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

Service life

100000 h at rated voltage and 25 °C

Surge withstand

1 kV conforming to IEC 61000-4-5

Mounting of block

Front mounting

Electrical composition code

M7; M8; MF2; P3; PF2

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 60947-1; IEC 60947-5-4; JIS C8201-5-1; UL 508; IEC 60947-5-5; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; UL listed

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2

Electromagnetic emission

Class B conforming to IEC 55011

Supply voltage

250 V

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.600 cm

Package 1 Width

4.400 cm

Package 1 Length

5.400 cm

Package 1 Weight

8.400 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

5.600 cm

Package 2 Width

4.400 cm

Package 2 Length

5.400 cm

Package 2 Weight

49.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

800

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

8.356 kg

Country of origin

FR

Warranty (in months)

18

Lamp holder

BA9s

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

No

Lamp type

Incandescent lamp

Type of fastening

Front fastening

With light source

No

Connection type auxiliary circuit

Screw connection

Rated voltage Ue at AC 50 Hz

0–250 V

Rated voltage Ue at AC 60 Hz

0–250 V

Voltage type for actuating

AC

HS Code

8536.50
