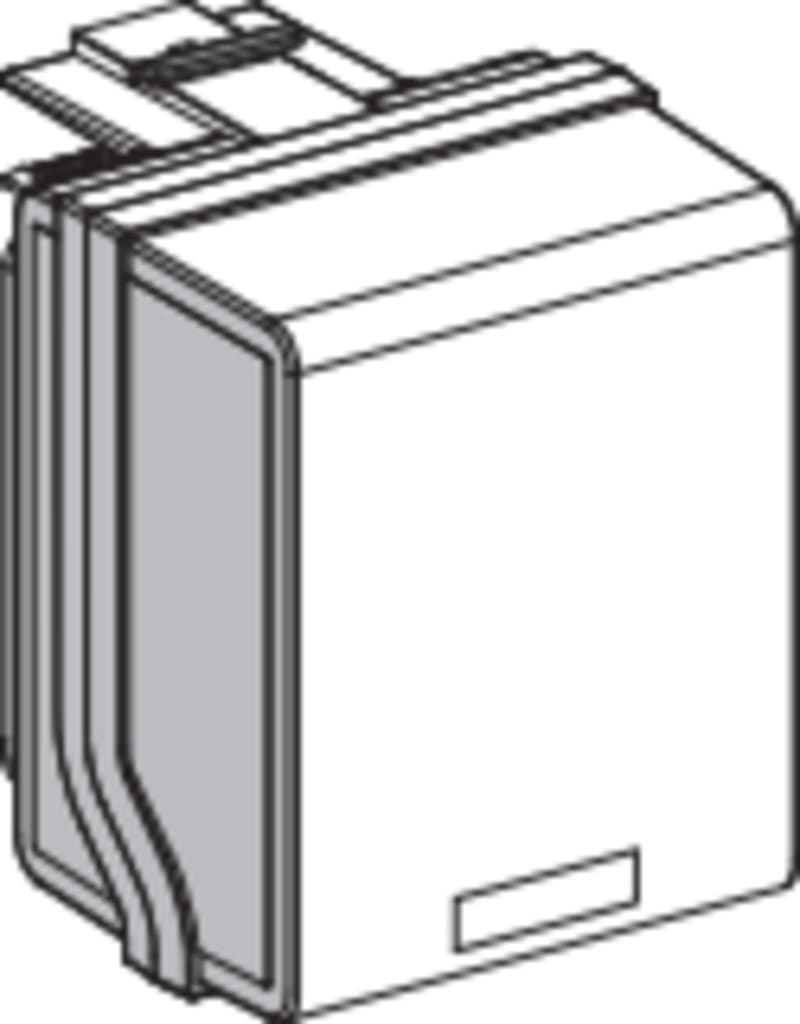

BOX 16A 3L+N Neozed E14
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB16CN5 Box 16A 3L+N Neozed E14.
Technical Specifications
- Manufacturer part number (MPN)
- KSB16CN5
- EAN / GTIN
- 3606480005923
- Sales unit
- pcs
- Rated current
- 16 A
- Range of product
- Canalis
- Range compatibility
- Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in
- [Ie] rated operational current
- 16 A at 35 °C
- protection type
- fuse insulator: Neozed fuse, size E14 conforming to DIN
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 690 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Tunnel terminal - ISO32 6 mm² flexible; Tunnel terminal - ISO32 10 mm² rigid
- door/cover opening side
- Front
- Tap-off unit disconnection mode
- By drawing out
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Plastic
- Width
- 135 mm
- Depth
- 103 mm
- Height
- 165 mm
- Product weight
- 0.6 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 16.000 cm
- Package 1 Width
- 17.500 cm
- Package 1 Length
- 13.600 cm
- Package 1 Weight
- 899.900 g
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 119
- Package 2 Height
- 195.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 119.100 kg
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 135 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated voltage AC 50 Hz
- 230–690 V
- Rated current AC 50 Hz
- 16 A
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005923
- SAP 1000470840
- Code 8580392
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Regulated Power Supply, 100-240V AC, 24V 20 A, single phase, Optimized ABLS1A24200
Schneider Electric
Current Transformer 1000/5 Rail 34X84
METSECT5DD100
Schneider Electric
Schneider Electric wall-mounting enclosure polyester monobloc IP66 H430XW330XD200MM glazed door NSYPLM43TG
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 7A 3P - with EverLink GV4L07N
Schneider Electric
Schneider Electric Lexium 62 Single Drive - 6 A - accessory kit included LXM62DU60C21000
Schneider Electric
Schneider Electric PanelSeT SM vertical adaptation profiles - 2000 mm NSYSMVR20
Schneider Electric
Mod.Cover (NSYDLA88G)
Schneider Electric

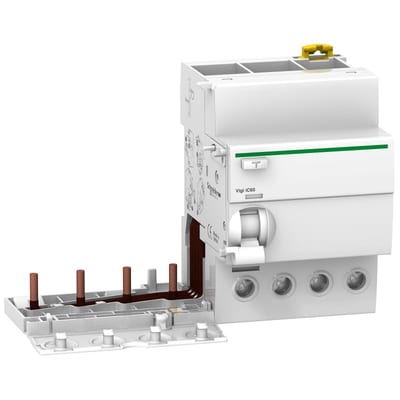

Schneider Electric Add-on residual current device, ACTI9 Vigi IC60, 4P, 63A, A-SI type, instantaneous, 30MA, 400...415VAC A9V61463
