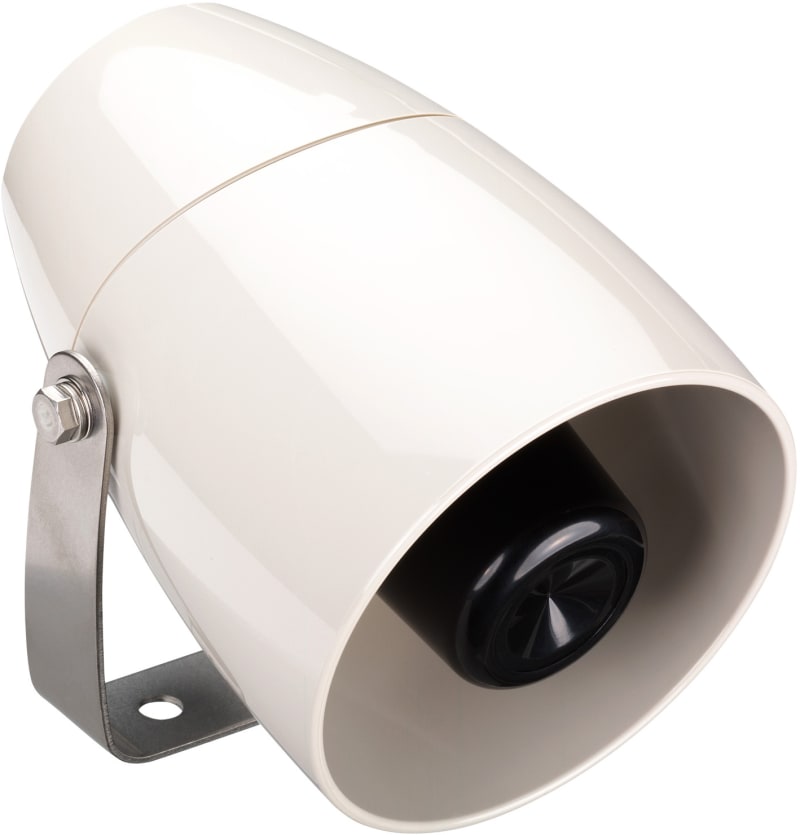

Schneider Electric Multi-sound Siren 12/24VDC 2 Tones XVS10BMW
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVS10BMW Siren 106dB 2 toner 12-24V.
Technical Specifications
- Manufacturer part number (MPN)
- XVS10BMW
- EAN / GTIN
- 3389119045346
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Voltage
- 12-24 V
- Range of product
- Harmony XVS
- Product or component type
- Siren
- Device short name
- XVS
- Colour
- White
- Signalling type
- 2 tones siren
- [Us] rated supply voltage
- 12 V AC/DC; 24 V AC/DC
- Noise level
- 106 dB (continuous or intermittent tone) at 1 m
- Material
- PC: body
- Product weight
- 0.8 kg
- Marking
- CE
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current consumption
- 300 mA at 24 V; 500 mA
- Clamping connection capacity
- <= 1 x 1.5 mm²
- Electrical connection
- Cable: 6.5…8.5 mm
- Width
- 114 mm
- Height
- 114 mm
- Depth
- 153.2 mm
- Standards
- IEC 60947-1; IEC 60947-5-1
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -30…50 °C
- Electrical shock protection class
- Class II conforming to IEC 61140
- IP degree of protection
- IP53
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Number of Units in Package 3
- 32
- Country of origin
- ID
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Mounting method
- Surface mounting
- Housing colour
- White
- Type of current
- AC/DC
- Loudness
- 106 dB
- Electricity consumption
- 0.3 A
- Type of acoustic signal
- Pulse tone/continuous tone
- Degree of protection (IP)
- IP53
- For Ex-zone gas
- None
- Suitable for wall mounting
- Yes
- For Ex-zone dust
- None
- Type of acoustic signal device
- Horn
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389119045346
- SAP 1000263797
- Code 81147892
Product Documentation
