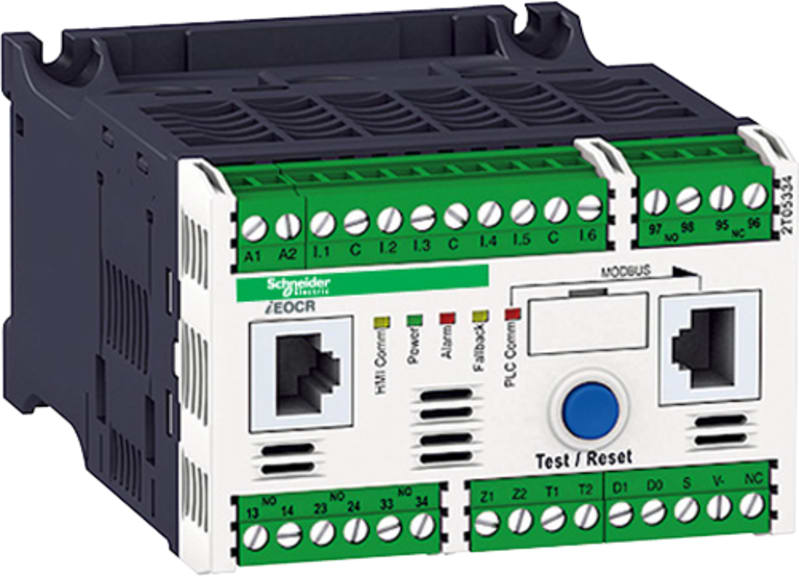

Schneider Electric Motor Management, TeSys T, motor controller, DeviceNet, 6 logic inputs, 3 relay logic outputs, 1.35 to 27A, 100 to 240 VAC LTMR27DFM

Schneider Electric motor controller LTMR TeSys T - 100.240 V AC 27 A for DeviceNet.

Manufacturer part number (MPN)

LTMR27DFM

EAN / GTIN

3389119404778

Sales unit

pcs

Package quantity

10 pcs

Voltage

230 V AC

Setting range

1.35-27 A

Range

TeSys

Product name

TeSys T

Device short name

LTMR

Product or component type

Motor controller

Device application

Equipment monitoring and control

Measurement current

1.35…27 A

[Us] rated supply voltage

100...240 V AC 50/60 Hz

Current consumption

8...62.8 mA

Supply voltage limits

93.5…264 V AC

Communication port protocol

DeviceNet

Bus type

DeviceNet ISO 1198 interface, addressing 1...64, transmission rate 125...500 kbit/s, terminal block with 4 twisted shielded pairs cable

[Ui] rated insulation voltage

690 V conforming to EN/IEC 60947-1; 690 V conforming to CSA C22.2 No 14; 690 V conforming to UL 508

[Uimp] rated impulse withstand voltage

4 kV supply, inputs and outputs conforming to EN/IEC 60947-4-1; 6 kV current or voltage measurement circuit conforming to EN/IEC 60947-4-1; 0.8 kV communication circuit conforming to EN/IEC 60947-4-1

Short-circuit withstand

100 kA conforming to EN/IEC 60947-4-1

Associated fuse rating

4 A gG for output; 0.5 A gG for control circuit

Protection type

Thermal overload protection; Power factor variation; Phase failure; Overload (long time); Reverse polarity protection; Earth-leakage protection; Thermal protection; Locked rotor; Load fluctuation; Overload; Phase unbalance

Network and machine diagnosis type

Trip history information; Trip context information; Running hours counter/operating time; Remaining operating time before overload tripping; Fault recording; Waiting time after overload tripping; Starting current and time; Phase fault and earth fault trip counters; Event recording; Motor control command recording

Logic input number

6

Input current

3.1 mA at 100 V; 7.5 mA at 240 V

Current state 0 guaranteed

Logic input: 0...40 V and <= 15 mA for 25 ms

Current state 1 guaranteed

Logic input: 79...264 V and >= 2 mA for 25 ms

maximum output switching frequency

2 Hz

Load current

5 A at 250 V AC for logic output; 5 A at 30 V DC for logic output

Permissible power

480 VA (AC-15), Ie = 2 A, 500000 cycles (output); 30 W (DC-13), Ie = 1.25 A, 500000 cycles (output)

maximum operating rate

1800 cyc/h

Contacts type and composition

1 NO + 1 NC fault signal; 3 NO

Metering type

Imbalance current; Temperature; Earth-fault current; Average current Iavg; Phase current I1, I2, I3 RMS

Measurement accuracy

5...15 % earth fault current internal measurement; 1 % voltage (100...830 V); 3 % power factor; 5 % earth fault current external measurement; +/- 30 min/year internal clock; 0,02 temperature; 1 % current; 5 % active and reactive power

Overvoltage category

III

Connection pitch

5.08 mm

Connections - terminals

Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.25…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 1 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) solid without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) flexible with cable end; Control circuit: connector 2 cable(s) 0.2…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.5…1.5 mm² (24 AWG...14 AWG) flexible without cable end; Control circuit: connector 2 cable(s) 0.2…1 mm² (24 AWG...14 AWG) solid without cable end

Tightening torque

Control circuit: 0.5…0.6 N.m flat screwdriver 3 mm

Pollution degree

3

Electromagnetic compatibility

Electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, 3, 10 V/m, conforming to EN/IEC 61000-4-3; Fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4; Fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4; Voltage dips and interruptions immunity test, 70 %, 500 ms, conforming to EN/IEC 61000-4-11; Conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6; Temperature sensor: surges (serial mode), 0.5 kV, conforming to EN/IEC 61000-4-5; Temperature sensor: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5; Control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5; Communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5; Relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5; Relay outputs and supply: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5; Control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5

Width

91 mm

Height

61 mm

Depth

122.5 mm

Product weight

0.53 kg

Web services

Web server

Compatibility code

LTMR

Standards

EN 60947-4-1; IACS E10; UL 508; CSA C22.2 No 14; IEC 60947-4-1

Product certifications

LROS (Lloyds register of shipping); NOM; GL; C-Tick; ATEX; KERI; DNV; BV; RINA; UL; RMRoS; EAC; CCC; CSA; ABS

Protective treatment

12 x 24 hour cycles conforming to EN/IEC 60068-2-30; 48 h conforming to EN/IEC 60070-2-11; TH conforming to EN/IEC 60068

Fire resistance

650 °C conforming to EN/IEC 60695-2-12; 960 °C conforming to UL 94

Ambient air temperature for operation

-20…60 °C

Ambient air temperature for storage

-40…80 °C

Operating altitude

<= 2000 m without derating

Mechanical robustness

Vibrations mounted on symmetrical rail: 1 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Vibrations plate mounted: 4 Gn, 5...300 Hz conforming to EN/IEC 60068-2-6; Shocks half its wave acceleration: 15 Gn for 11 ms conforming to EN/IEC 60068-2-27

IP degree of protection

IP20

Country of origin

CN

Warranty (in months)

18

Supply voltage AC 50 Hz

93.5–264 V

Supply voltage AC 60 Hz

93.5–264 V

Voltage type (supply voltage)

AC

Rated operation current Ie

1.35–27 A

Rated voltage Ue at AC 50 Hz

93.5–264 V

Rated voltage Ue at AC 60 Hz

93.5–264 V

Rated operating frequency

50–60 Hz

Current detection module

Yes

Voltage detection module

No

Type of connection system

Screw connection

Rated control supply voltage AC 50 Hz

100–240 V

Rated control supply voltage AC 60 Hz

100–240 V

Voltage type for actuating

AC

Number of outputs, with contact

5

Number of electronic outputs

3

Input for thermistor connection

Yes

Input for earth fault detection

Yes

Input for analogue temperature sensor

Yes

Type of interface

DeviceNet

Degree of protection (IP)

IP20

Number of digital inputs

6

HS Code

8537.10
