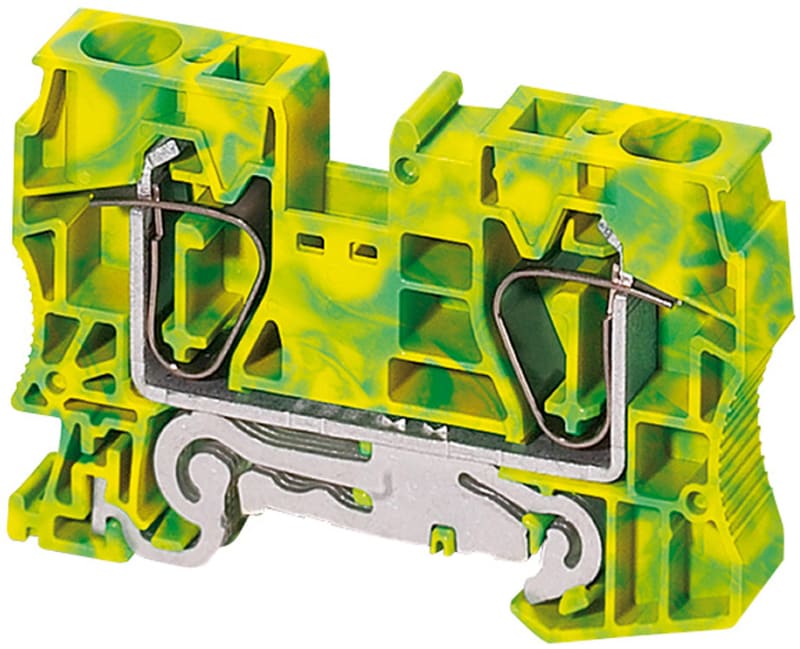

Terminal block, spring 16mm² PE 2P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTRR162PE Terminal block spring 16mm² PE 2p.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTRR162PE
- EAN / GTIN
- 3606480532887
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Conductor cross-section
- 16 mm²
- Range
- Linergy
- Product name
- Linergy TR
- Product or component type
- Terminal block
- Device short name
- TRR
- Terminal block type
- Protective earth
- Terminal block level
- 1
- mounting mode
- Clip-on
- Nominal cross section
- 16 mm²
- Length
- 80 mm
- Colour
- Green-yellow
- Quantity per set
- Set of 50
- Width
- 12.2 mm
- Height
- 51 mm
- Connections - terminals
- 1 x spring terminal: upstream; 1 x spring terminal: downstream
- number of connections
- 2
- Connection position
- Top
- Number of measurement input
- 2
- Cable cross section
- 0.2…25 mm², solid; 0.2…16 mm², flexible without cable end; 1.5…16 mm², flexible with cable end
- Wire stripping length
- 18 mm
- Tool type
- Connection: flat screwdriver; Disconnection: flat screwdriver
- Material
- Polyamide 6/6: insulating case
- Dielectric loss
- 0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4
- Dielectric constant
- 3.7 at 1 MHz
- Resistivity
- 10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30
- Surface resistance
- 1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30
- Creep resistance
- 500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30
- Flame retardance
- V0, thickness0.8 mm conforming to UL 94
- Product weight
- 51.2 g
- Range compatibility
- PrismaSeT P; PrismaSeT G; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys
- Product compatibility
- Spacial enclosures
- Product certifications
- GL; UL; VDE; CSA; DNV
- Dielectric strength
- 1000 V conforming to IEC 60243-1
- Ambient air temperature for operation
- -40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 25
- Number of Units in Package 3
- 200
- Country of origin
- PL
- Warranty (in months)
- 18
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 1
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Width/grid dimension
- 12.2 mm
- Depth
- 80 mm
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480532887
- SAP 1000402178
- Code 81113321
Product Documentation
More from Schneider Electric
Schneider Electric

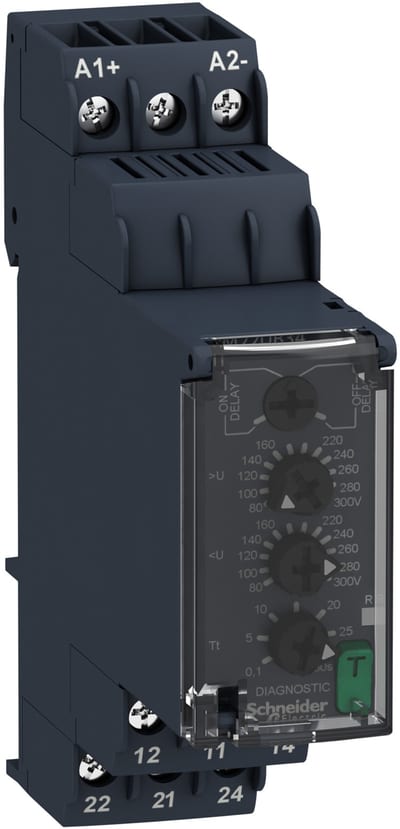

Schneider Electric Modular 1-Phase voltage control relay, 8 A, 2 CO, 80…300 V AC/DC, 110…240 V AC/DC RM22UB34
Schneider Electric

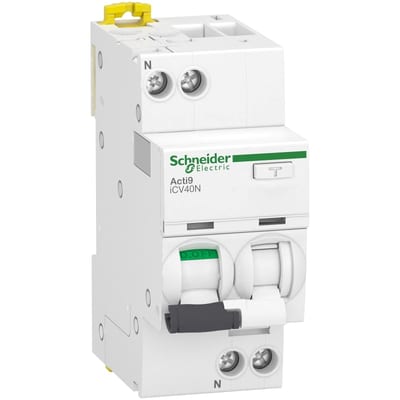

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 10A, C curve, 6000A, A-SI type, 300MA A9DF7610
Schneider Electric

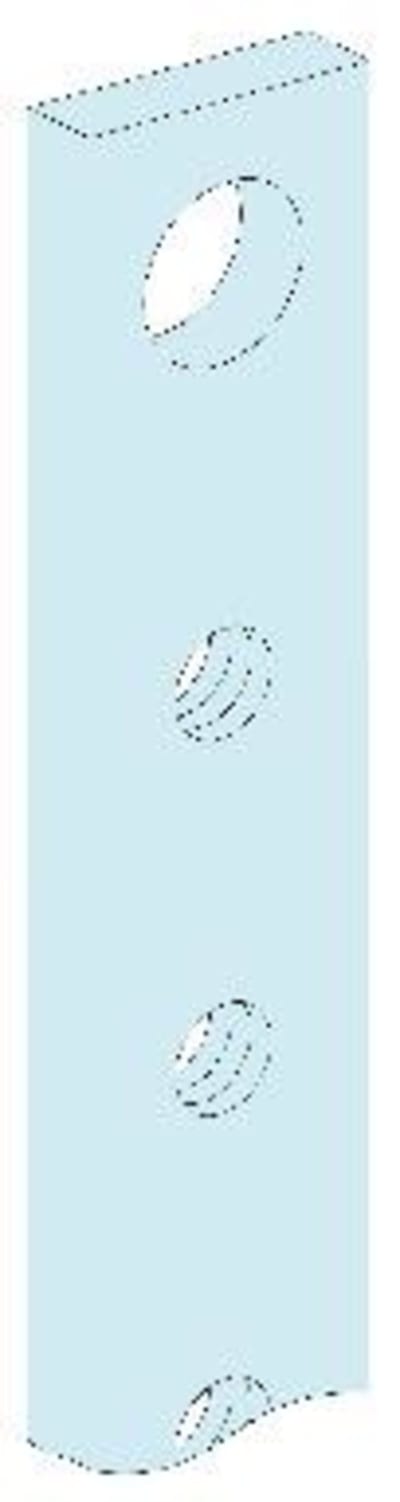

Busbar 630A L1400 G/P
LVS04174
Schneider Electric

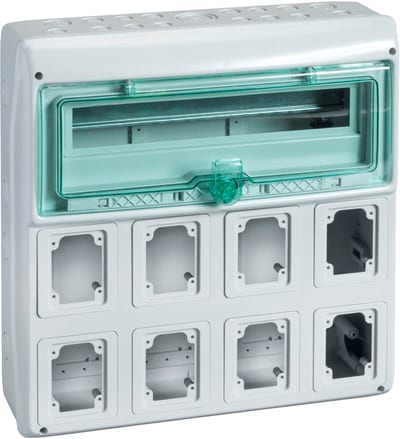

KAEDRA 1X18MOD, 8 openings 90X100
13182
Schneider Electric

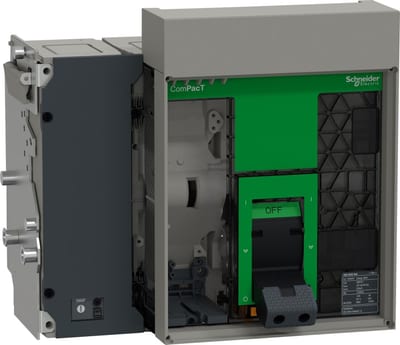

Schneider Electric Switch disconnector basic frame, ComPacT NS1250 type NA, 4P, drawout, manually operated, 1250A C125S4WM
Schneider Electric

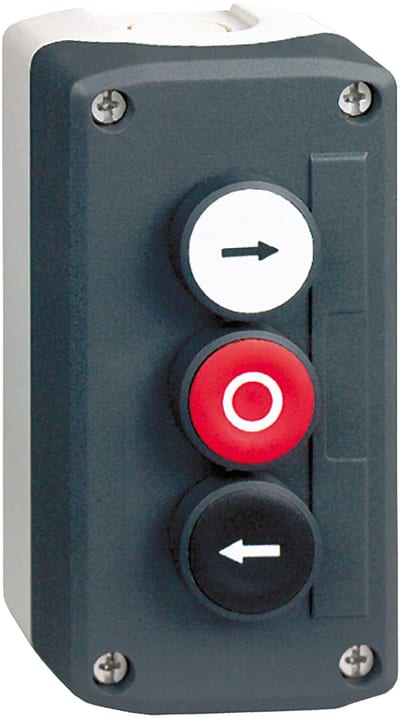

Push-Button Station 2 arrow + 0 (XALD334)
Schneider Electric

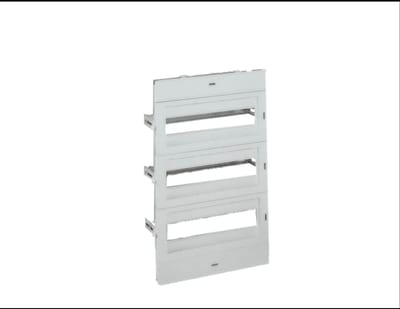

PLM75 Automatinsats 7035 66MOD
NSYDLA66G
Schneider Electric

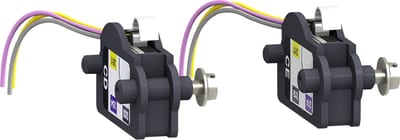

Schneider Electric carriage switches, drawout ComPact NSX, chassis connected (CE)/diconnected (CD) position, 2 changeover contact types LV429287
