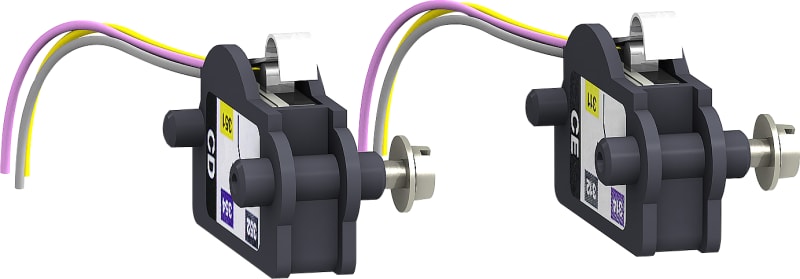

Schneider Electric carriage switches, drawout ComPact NSX, chassis connected (CE)/diconnected (CD) position, 2 changeover contact types LV429287
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LV429287 Pos.switches cassette in/out 2pcs.
Technical Specifications
- Manufacturer part number (MPN)
- LV429287 EAN / GTIN: 3606480021602 Sales unit: pcs Package quantity: 2 pcs Device short name: CE; CD Product or component type: Carriage switch Device application: Monitoring Range compatibility: ComPact ComPact NSX100; ComPact ComPact NSX160; ComPact ComPact NSX250; ComPact ComPact NSX400; ComPact ComPact NSX630 Signal contacts composition: 2 NO/NC Auxiliary contacts type: Standard Auxiliary contacts operation: CE/CD mounting mode: Drawout [Ith] conventional free air thermal current: 6 A [Ie] rated operational current: AC-12: 6 A at 110 V AC 50/60 Hz; AC-12: 6 A at 220/240 V AC 50/60 Hz; AC-12: 6 A at 24 V AC 50/60 Hz; AC-12: 6 A at 380/440 V AC 50/60 Hz; AC-12: 6 A at 48 V AC 50/60 Hz; AC-12: 6 A at 480 V AC 50/60 Hz; AC-12: 6 A at 660/690 V AC 50/60 Hz; AC-15: 0.1 A at 660/690 V AC 50/60 Hz; AC-15: 1.5 A at 480 V AC 50/60 Hz; AC-15: 2 A at 380/440 V AC 50/60 Hz; AC-15: 4 A at 220/240 V AC 50/60 Hz; AC-15: 5 A at 110 V AC 50/60 Hz; AC-15: 6 A at 24 V AC 50/60 Hz; AC-15: 6 A at 48 V AC 50/60 Hz; DC-12: 0.3 A at 250 V DC; DC-12: 0.6 A at 110 V DC; DC-12: 2.5 A at 48 V DC; DC-12: 6 A at 24 V DC; DC-14: 0.03 A at 250 V DC; DC-14: 0.05 A at 110 V DC; DC-14: 0.2 A at 48 V DC; DC-14: 1 A at 24 V DC minimum load: 100 mA at 24 V DC Quantity per set: 2 Number of Units in Package 1: 1 Number of Units in Package 2: 45 Country of origin: FR Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606480021602
- SAP 1000092253
- Code 8859575
Product Documentation
More from Schneider Electric
Schneider Electric
Term.cover long 2P NSXm 1 pcs
LV426911
Schneider Electric
Schneider Electric variable speed drive ATV630 - 7.5KW/10HP - 200...240V - IP21/UL type 1 ATV630U75M3
Schneider Electric
Lock case for 405 (NSYTCL405ME)
Schneider Electric
Schneider Electric Asym. Flashing Timing Relay - 0.05S…300H - 24…240V AC/DC - 1C/O RE22R1MLMR
Schneider Electric
Potentiometer complete 100KOHM (XB4BD912R100K)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 3 poles, MA trip unit 220A C25N3MA220
Schneider Electric
Schneider Electric fuse cartridge 5 x 20 - fast blow 1 A - without indication ABE7FU100
Schneider Electric
Schneider Electric Variable speed drive, Altivar Process ATV600, ATV630, 7.5 HP, 500...690 V, IP21 ATV630U75Y6
Technical guides
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV429287?
- LV429287 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV429287.
- What is the HS code for LV429287?
- The customs tariff (HS) code for LV429287 is 8538.90.
- Who manufactures LV429287?
- LV429287 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV429287?
- Yes — the LV429287 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV429287?
- The minimum order quantity is 1.
- Is LV429287 available?
- Yes — LV429287 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
