PLM75 Automatinsats 7035 66MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

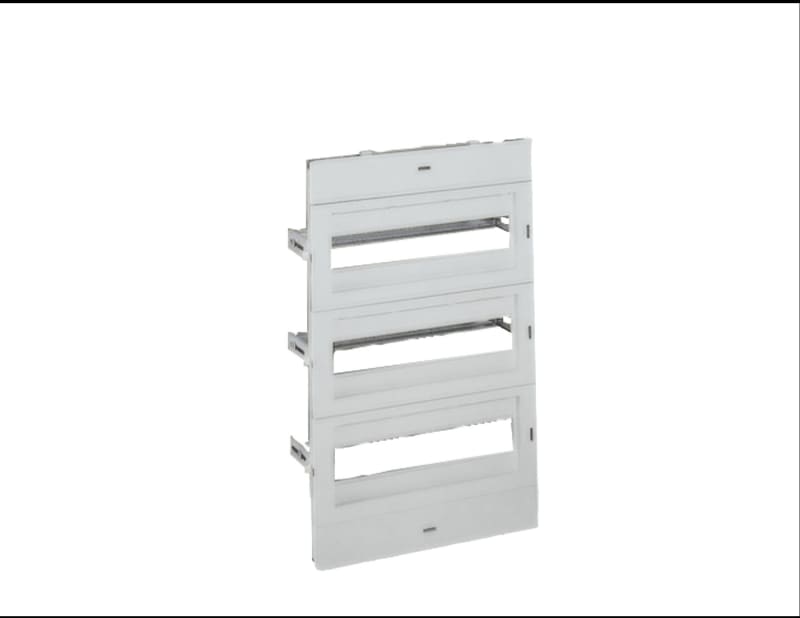

Schneider Electric NSYDLA66G PLM75 Automatinsats 7035 66mod.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLA66G
- EAN / GTIN
- 3606480773853
- Sales unit
- pcs
- Modular width
- 66 modules
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Application
- Modular distribution application; Multi-purpose
- Product or component type
- Chassis
- Device short name
- DLA
- For enclosure nominal dimensions
- -
- Mounting location
- Front of enclosure
- Range compatibility
- PanelSeT S3D; PanelSeT CRN; PanelSeT PLM
- Device composition
- 1 chassis structure; 2 finish cover; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 3 front panels with 35 mm DIN rail; 1 plain front panel with mounting plate
- Quantity per set
- Set of 1
- Material
- Front panel: self-extinguishing insulating; Chassis structure and rails: steel
- Colour
- Front panel: grey (RAL 7035)
- Fixing mode
- By fixing element - on front with supports location
- Adjustment
- In height from 40 to 85 mm for DIN rail
- Number of horizontal rows
- 4
- Total number of 18 mm modules
- 66
- Type of front plate
- Plain and cut-out plates
- Number of cut-out
- 3 cut-outs
- Height
- 680 mm
- Width
- 460 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- ES
- Warranty (in months)
- 18
- With mounting plate
- Yes
- With mounting rail
- Yes
- With cover
- Yes
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480773853
- SAP 1000752302
- Code 8486163
