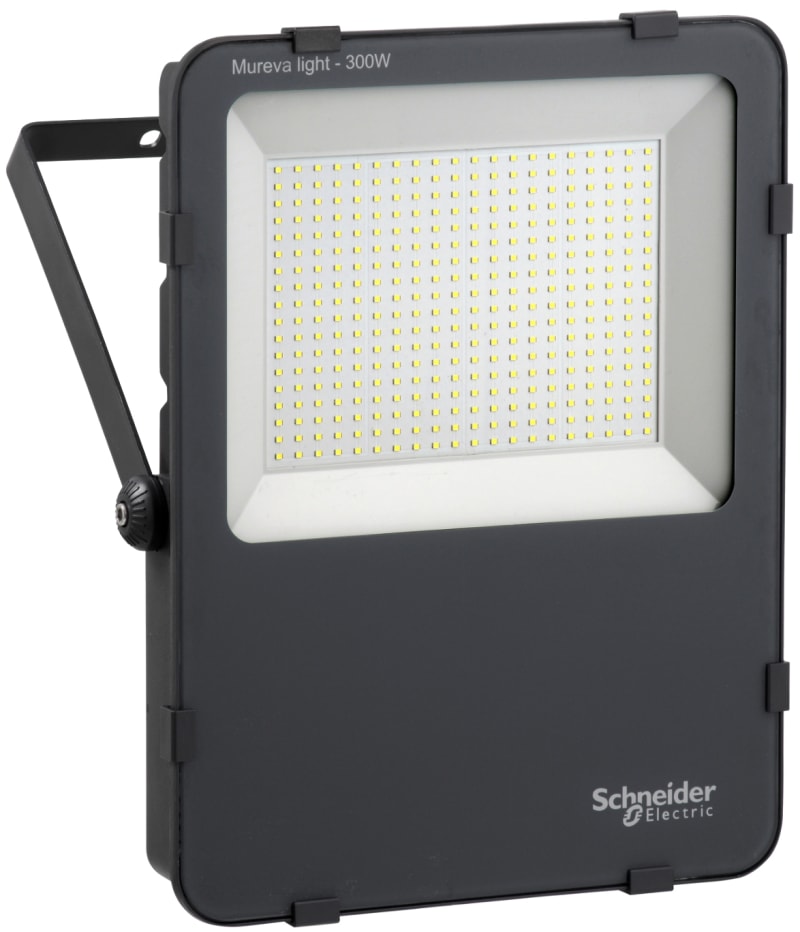

Schneider Electric Mureva lights, Floodlight 300W, IP65 230V IMT47224
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric IMT47224 Mureva Floodlight 300W 30000lm 6500K IP65 230V Spredningsvinkel 110°, Operating temperature -30°C / + 45°C.
Technical Specifications
- Manufacturer part number (MPN)
- IMT47224
- EAN / GTIN
- 3606489903244
- HS code
- 8543.70
- Sales unit
- pcs
- Package quantity
- 8 pcs
- IP rating
- IP65
- Power
- 300 W
- Range
- Mureva
- Range of product
- Mureva lights
- Product or component type
- Floodlight
- Device application
- Ware-houses and parking garages; Residential; Media device support; Public areas; Secure lighting; Stadiums and arenas
- Type of installation
- Outdoor
- Total system power
- 300 W
- Light source
- LED
- [Ue] rated operational voltage
- 230 V AC
- Power factor
- 0.9
- Colour rendering index
- R a =80
- Luminous flux
- 36000 lm
- Bulb lifespan
- 50000 h
- Colour temperature
- 6500 K
- Colour tint
- Black
- Provided equipment
- Sensor
- Electrical insulation class
- Class E
- Beam angle
- 110 °
- Shape
- Rectangular
- Height
- 439.0 mm
- Width
- 339.0 mm
- Depth
- 71.0 mm
- Product weight
- 7.64 kg
- Environmental characteristic
- Weatherproof
- IP degree of protection
- IP65
- IK degree of protection
- IK06
- Ambient air temperature for operation
- -30…45 °C
- Warranty (in months)
- 60
Standards & Compliance
- HS Code
- 8543.70
Cross References
- EAN 3606489903244
- SAP 1200510359
- Code 82652431
Product Documentation
More from Schneider Electric
Schneider Electric

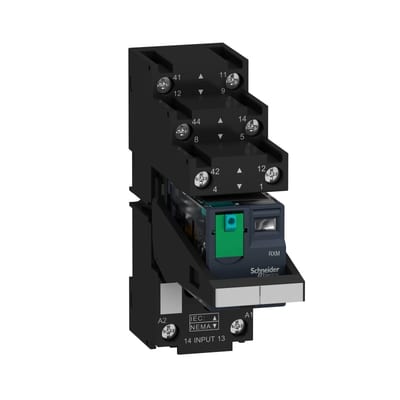

RXM relay with plinth 12A 24VDC
RXM2AB2BDPVS
Schneider Electric

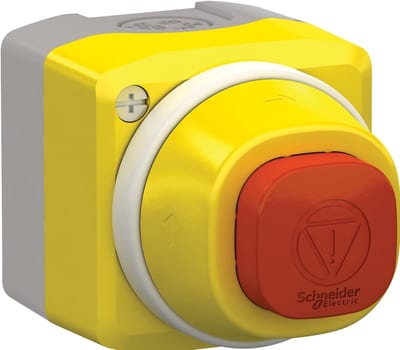

Schneider Electric illuminated emergency stop control box 24V 2 colors white/red fixed 1NO 1NC XALK84W3BE
Schneider Electric

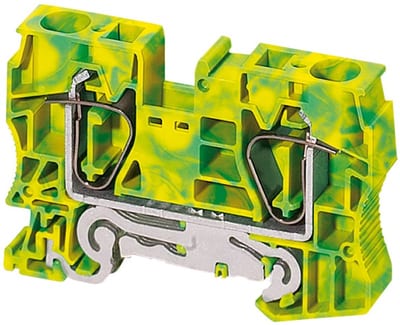

Terminal block, spring 16mm² PE 2P
